Holley GM LS Swap Oil Pan - Most Front Clearance - No Drain-Back Holes

302-5

$474.95
/
Shipping calculated at checkout.

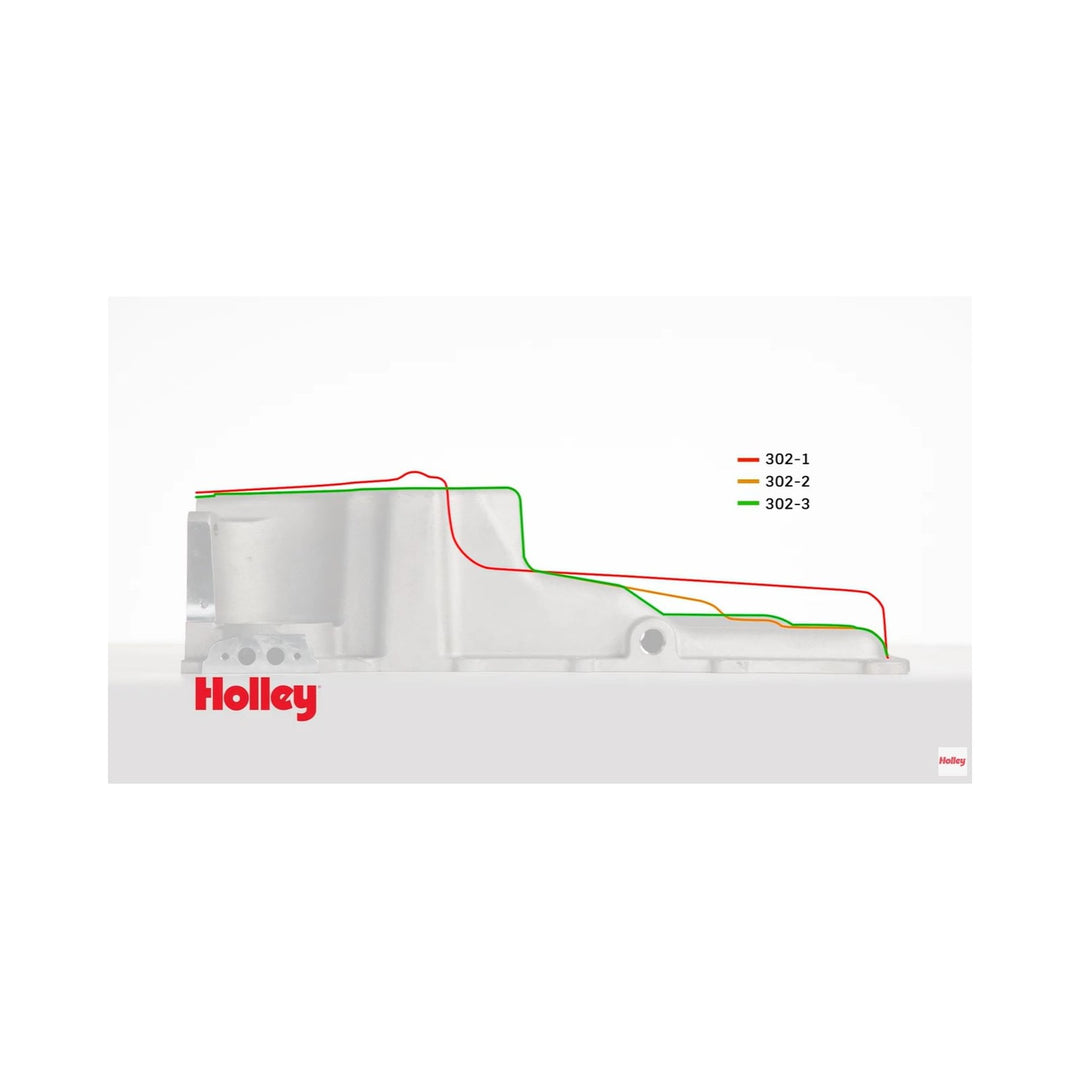

This oil pan is similar to the popular Holley 302-3 LS swap pan but has a lower retail price & is designed for naturally aspirated applications (turbo oil drain-back holes & plugs removed as cost savings). The 302-5 design is the same as the 302-3 pan and can clear a 4.00-inch stroke crankshaft. This oil pan fits the usual GM LS swapped muscle cars and trucks and the Ford Fox body factory K-member with the Fox body rack and pinion.

  • LS Swap Pan similar to 302-3, but at a better retail price for naturally aspirated applications (turbo oil drain-back holes and plugs eliminated – for lower retail price)
  • Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan

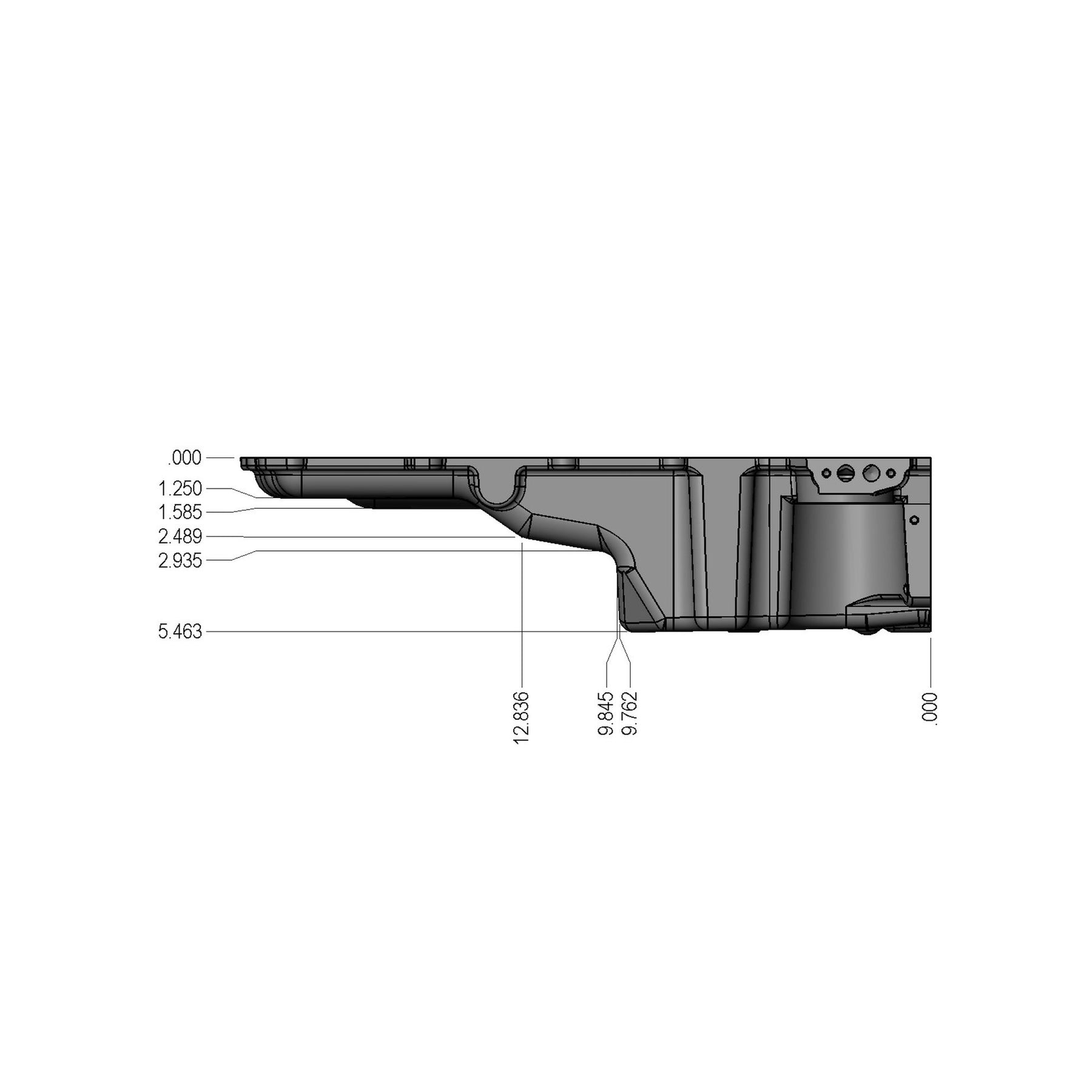

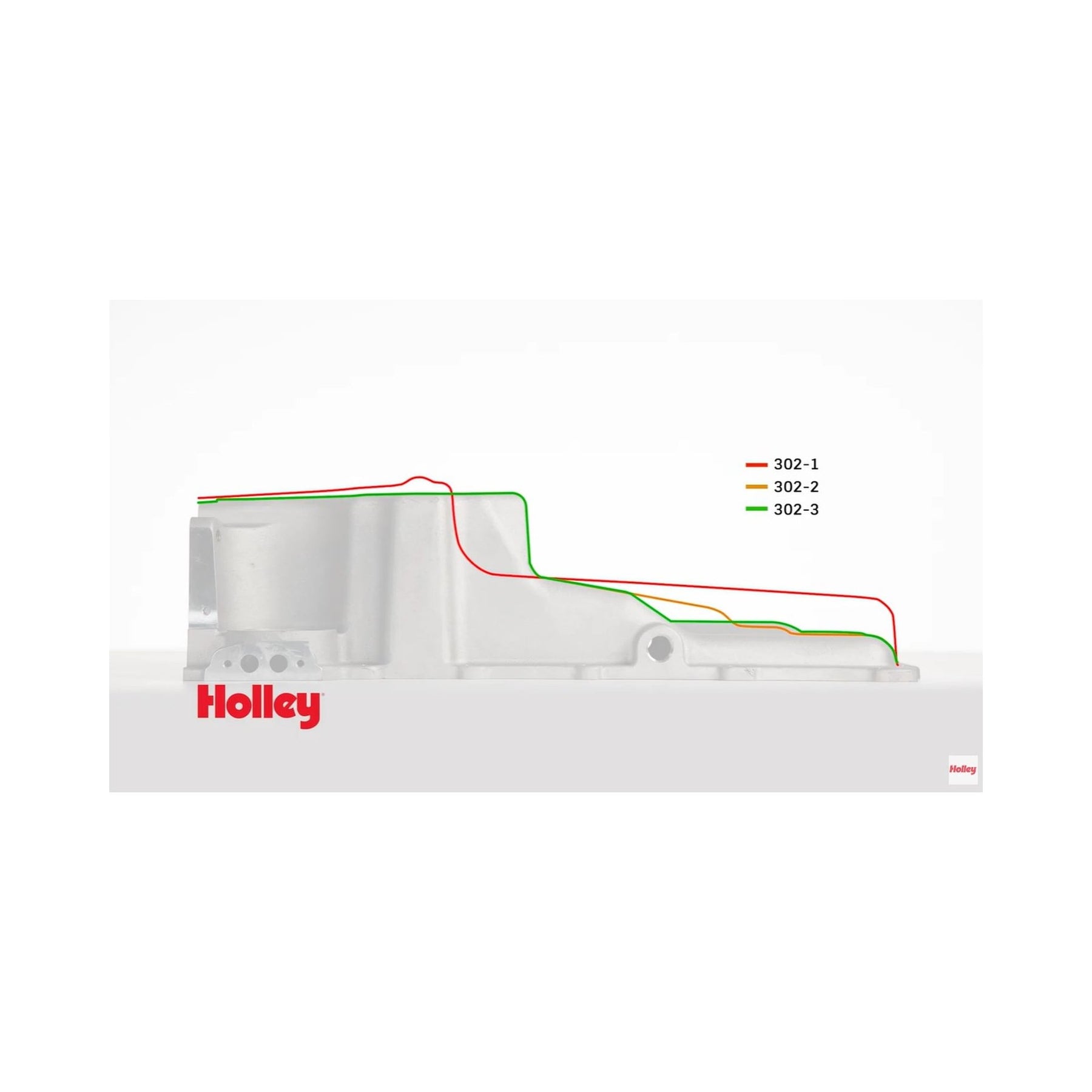

  • The profile of the sump has been revised to provide extra chassis and steering rack clearance
  • Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications. Also 1979-2004 Mustang and 1979-1986 Capri Fox bodies
  • NOTE – Oil pan #302-5 will clear a 4.00-inch stroke crankshaft

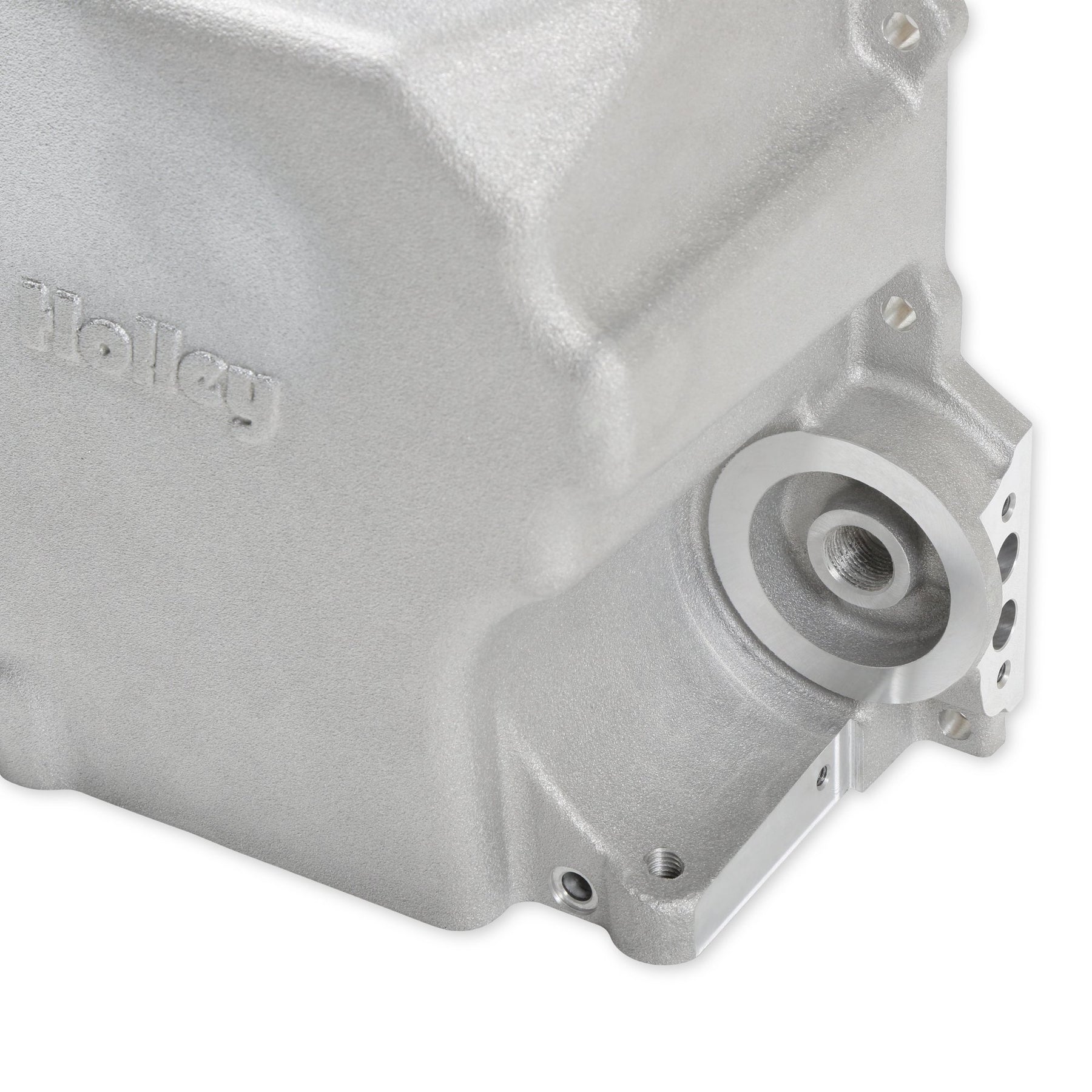

  • Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket, and sealing proper structural rigidity, and OE bell-housing attachments
  • Traditional high-quality cast aluminum appearance with clean exterior styling
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine cross member

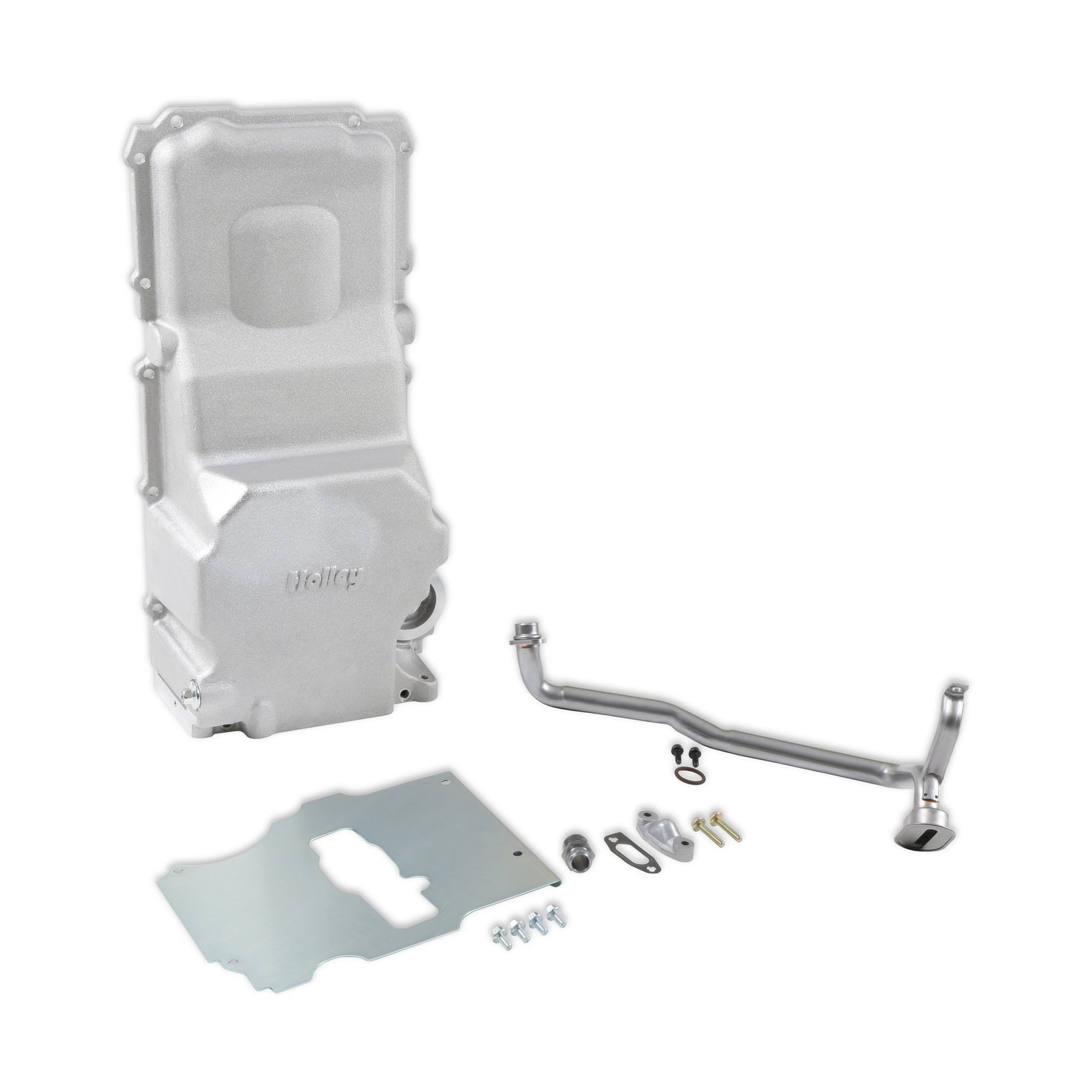

  • Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.

Specifications

  • Application: GM LS Engines
  • Baffled: No
  • Brand: Holley
  • Capacity: 5.6 QT
  • Category: Engine
  • Choose Your Part: Oil Pan Kit
  • Color: Silver
  • Crank Shaft Wiper Included: No
  • Dipstick Port: No
  • Drain Plug Included: Yes
  • Emission Code: 6
  • Engine: GM Gen III/IV (LS)
  • Finish: Natural Cast
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Material: Aluminum
  • Maximum Stroke: 4.00"
  • Oil Pan Capacity: 5.6 Quarts
  • Oil Pan Type: Cast
  • Oil Return Size: None
  • Oil System Capacity (w/ filter): 5.6 QT
  • Part Type: Engine Oil Pan
  • Pickup Included: Yes
  • Product Type: Oil Pan Kit
  • Sub Category: Cylinder Block Components
  • Sump Location: Rear
  • Sump Type: Wet
  • Turbo Oil Drainback: No
  • Warranty: Manufacturer's Limited 90 Day Warranty
  • Windage Tray Included: No
  • Part Number: 302-5
