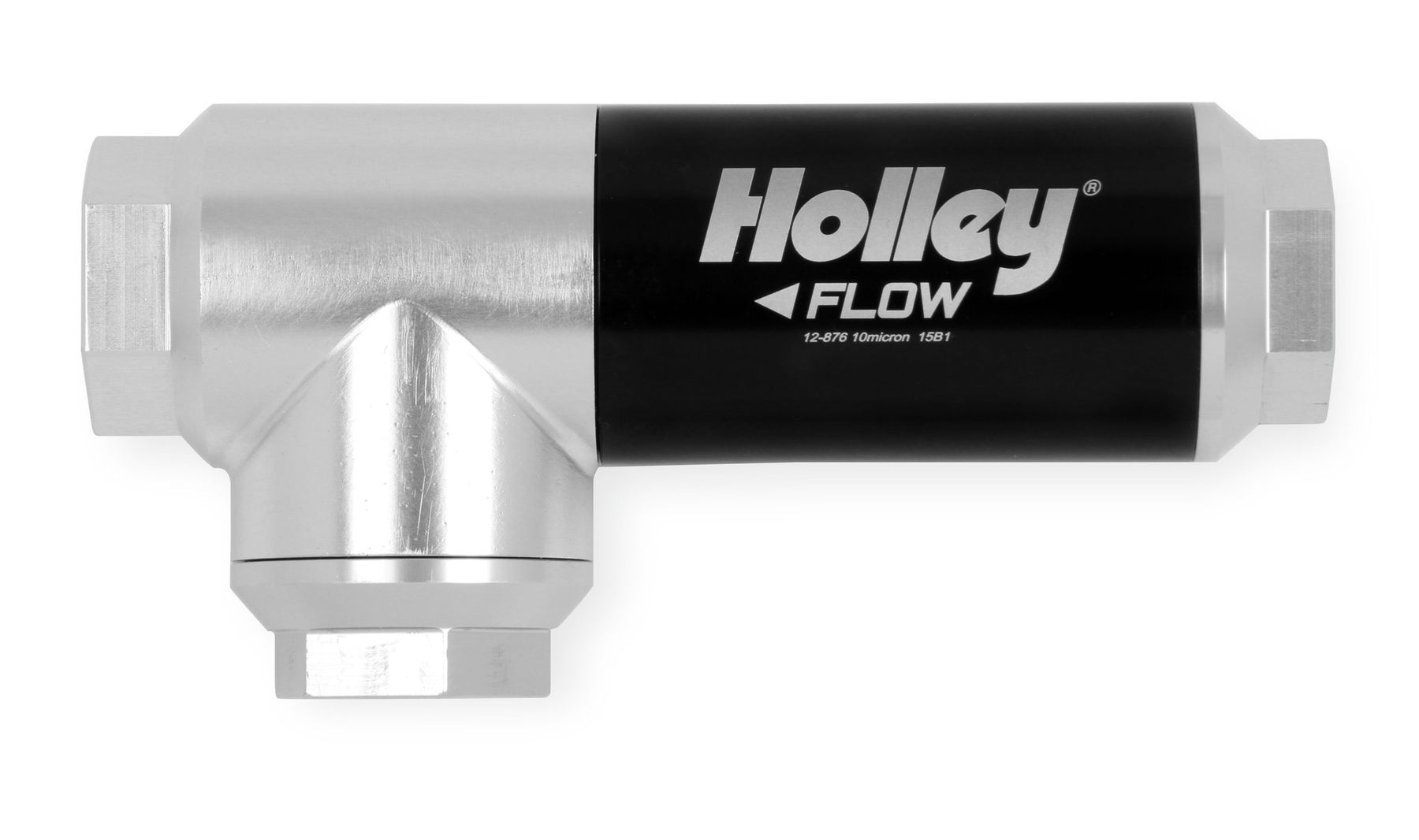

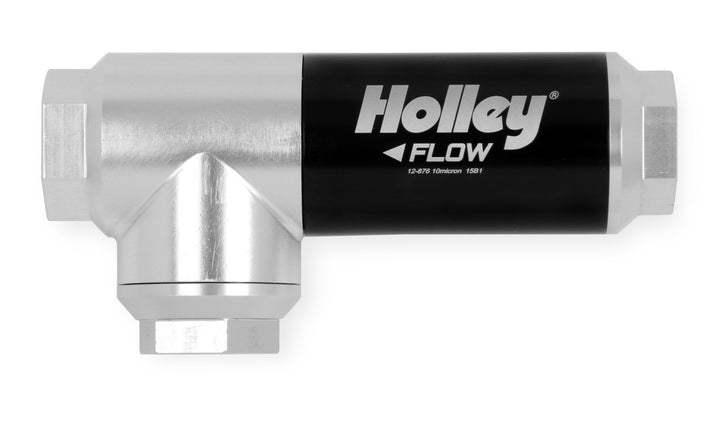

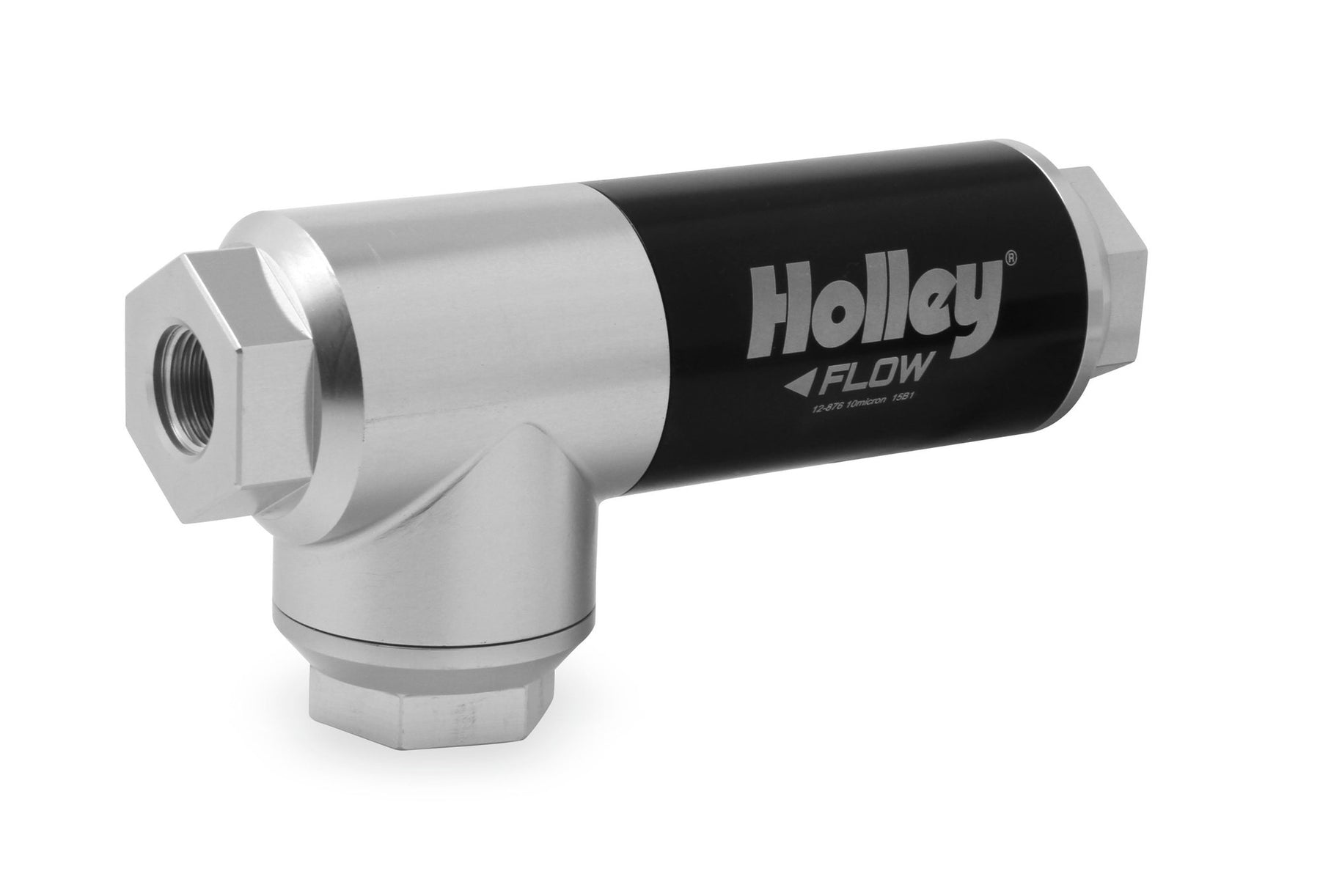

Holley EFI Filter Regulator -8AN

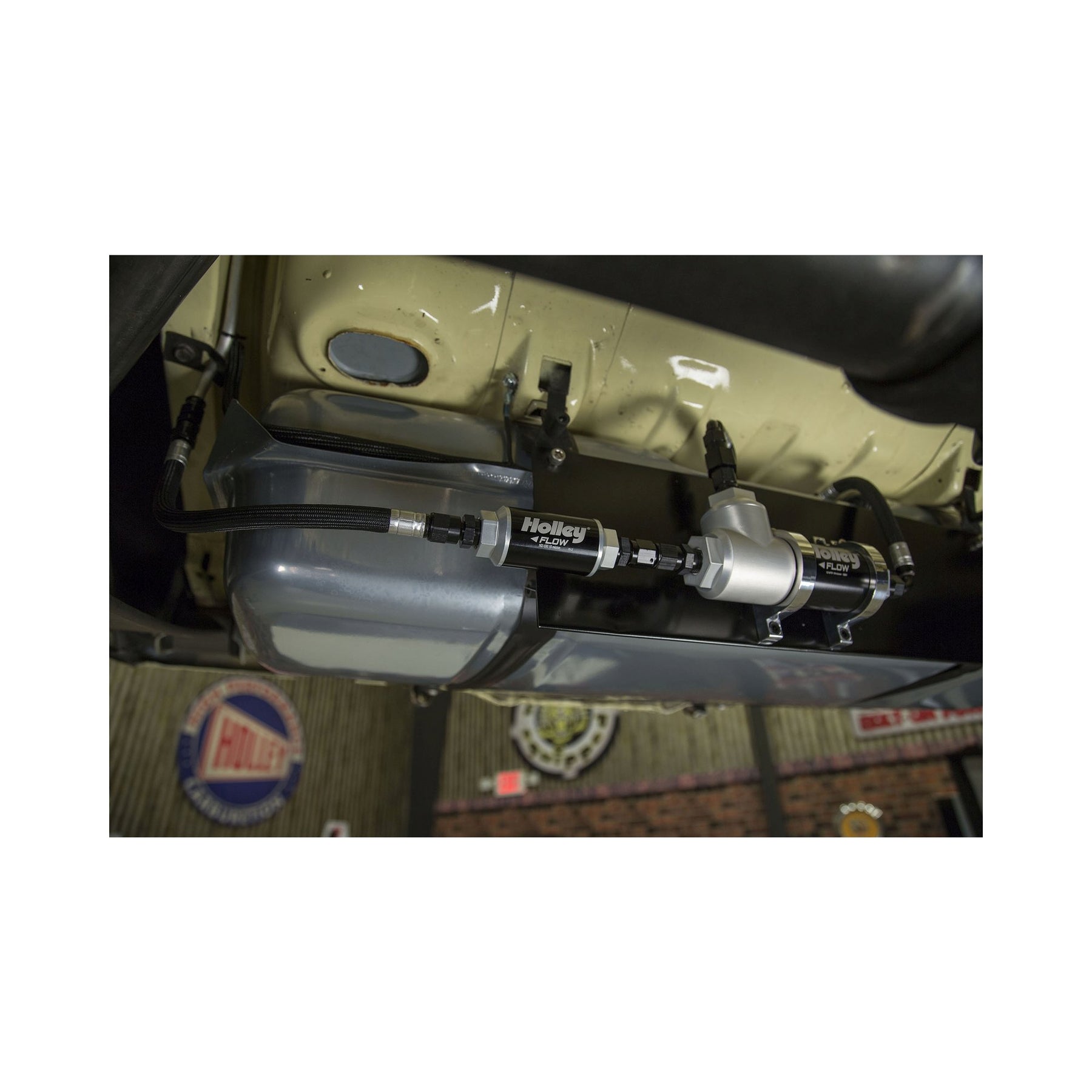

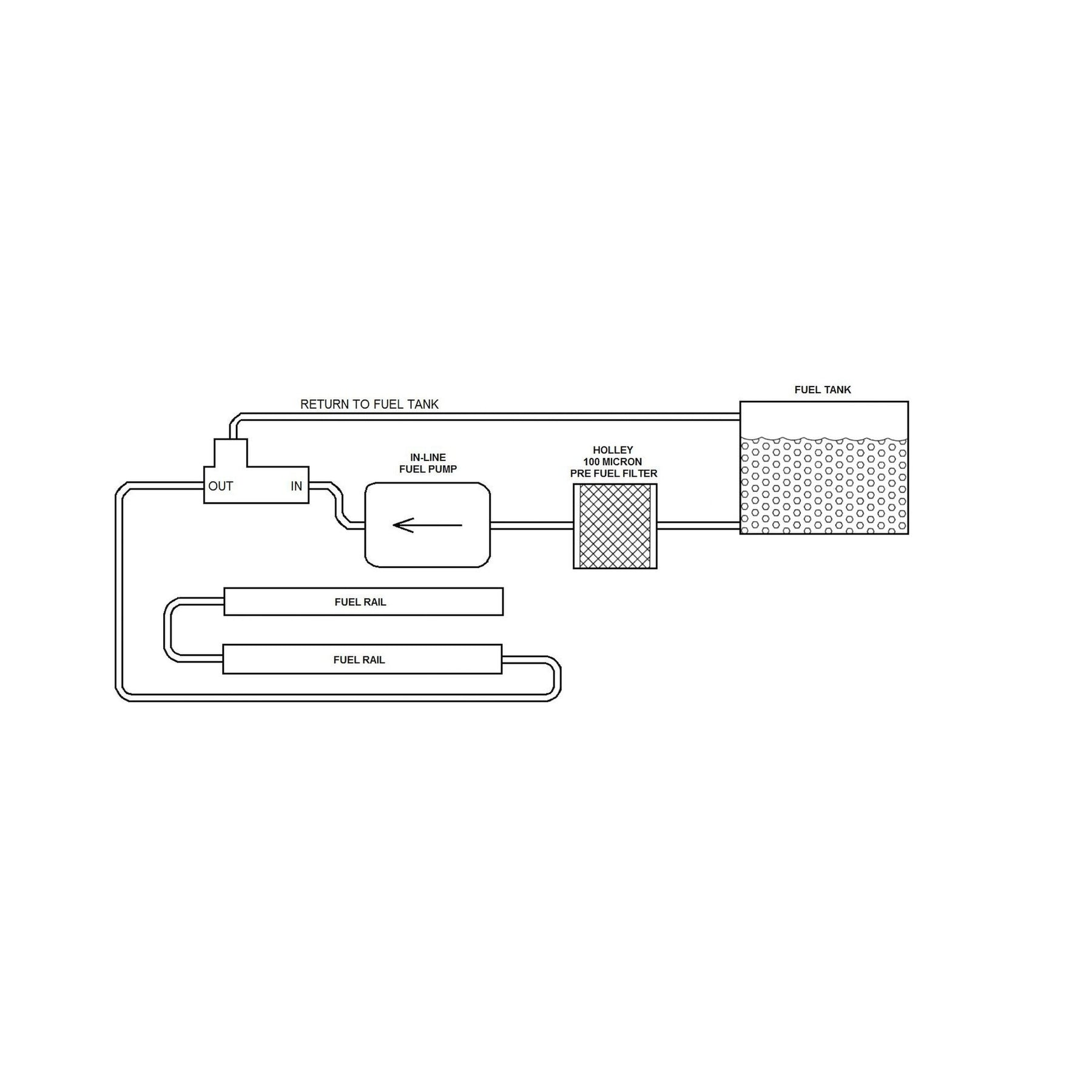

When converting your fuel system to a return style EFI setup, the biggest challenge can be plumbing the fuel lines. Holley continues to be the leader in fuel system development to make your life easier! The new Holley EFI Filter Regulator assembly simplifies your installation by combining the fuel filter and regulator in one assembly that can be mounted in the rear of the vehicle. Thus making your return line much shorter.

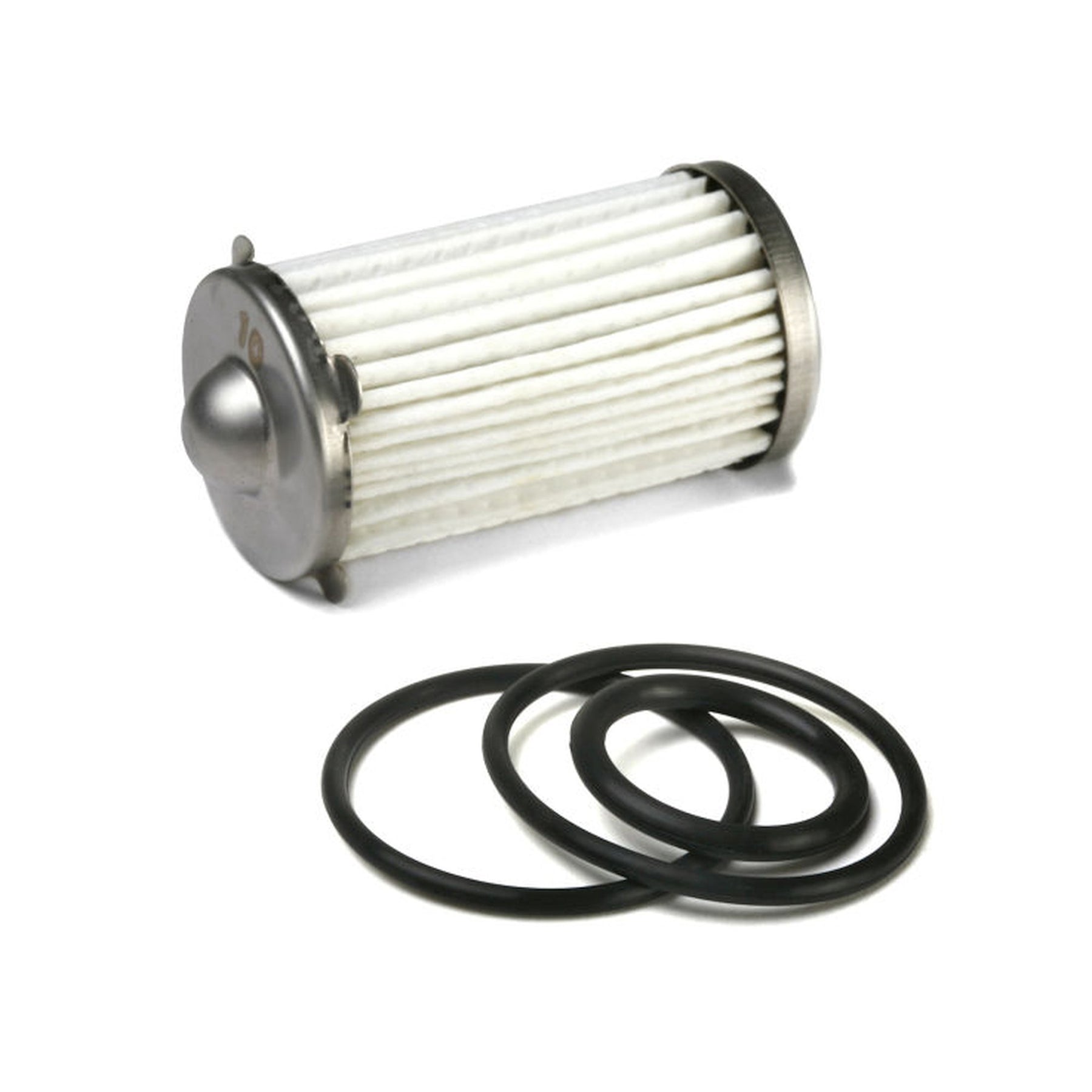

The aluminum assembly contains a 175 GPH 10 Micron filter and a regulator preset at 59.5 psi. The filter regulator comes in 3/8" NPT or -8AN o-ring port sizes to match most EFI fuel systems.

Add billet mounting clamps; 162-574 and 162-574S

• Designed to help minimize the fuel line plumbing needed when installing an electronic fuel injection conversion
• Convenient AN ports for easy plumbing
• Compact design
• Preset to 59.5 psi

Specifications

• Adjustable: No
• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Emission Code: 5
• Fuel System: EFI
• Fuel Type: Gasoline
• Gauge Port: No
• GPH: 175
• Grade Type: Performance
• Inlet Port Diameter: -8AN
• Inlet Quantity: One
• Inlet Size: 8 AN O-Ring
• Inlet Type: ORB
• Material: Aluminium
• Micron: 10
• Mounting Hardware Included: No
• Outlet Port Diameter: -8AN
• Outlet Quantity: Two
• Outlet Size: 8 AN O-Ring
• Outlet Type: ORB
• Part Type: Fuel Injection Pressure Regulator
• Port Quantity: 3
• Product Type: Fuel Pressure Regulator
• Style: EFI
• Sub Category: Fuel Injection System and Related Components
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 12-876
