Holley EFI Billet Bypass Fuel Pressure Regulator Kit

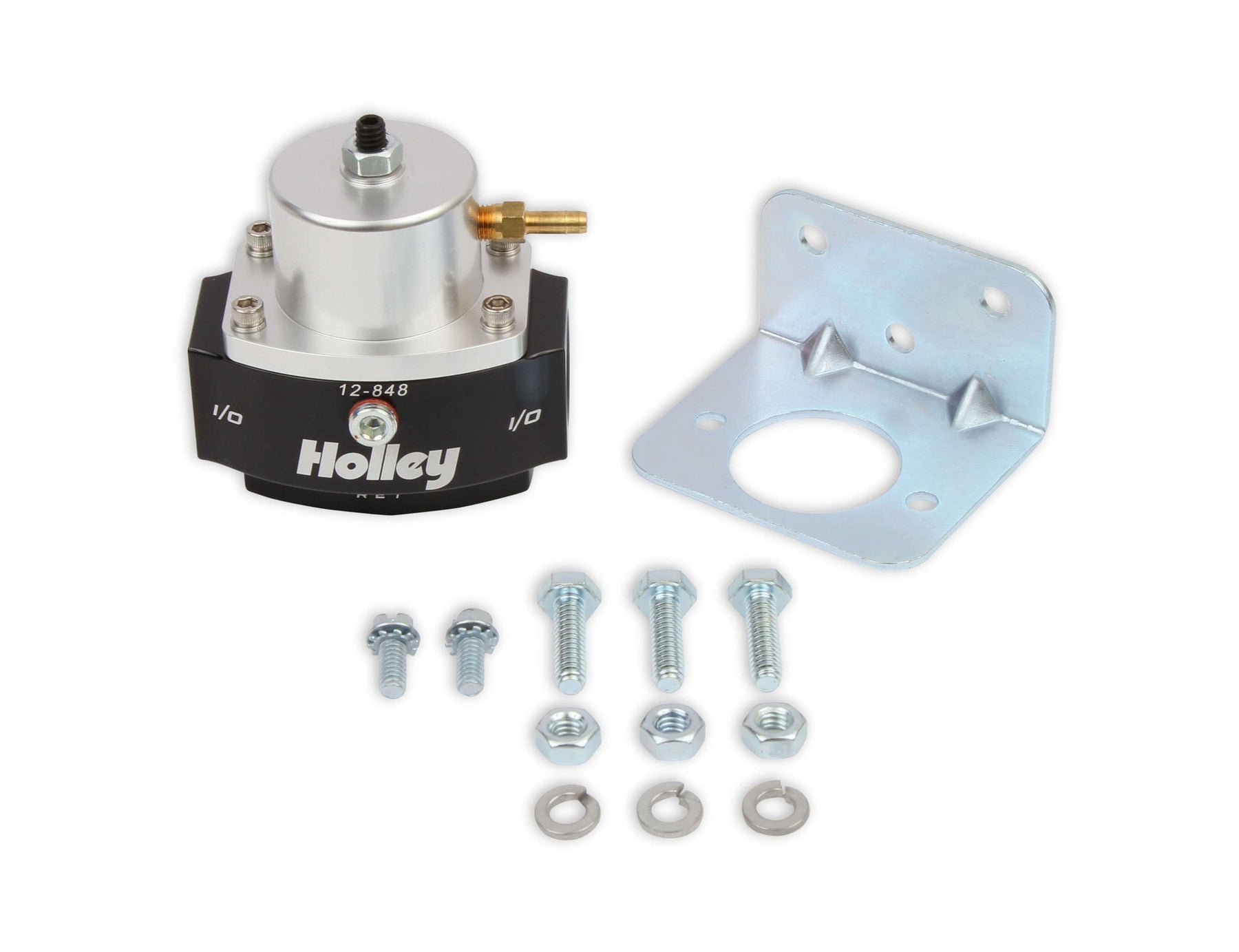

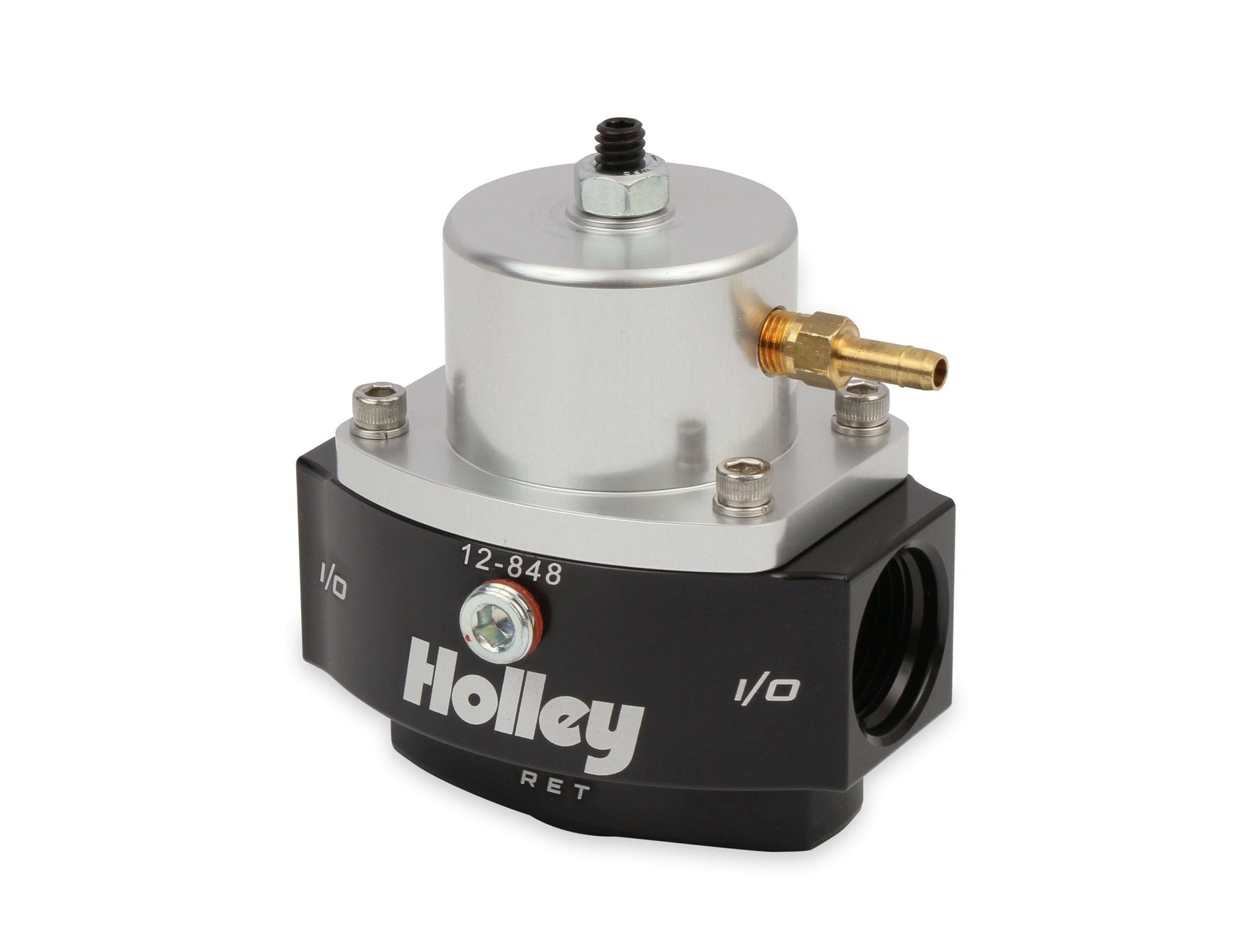

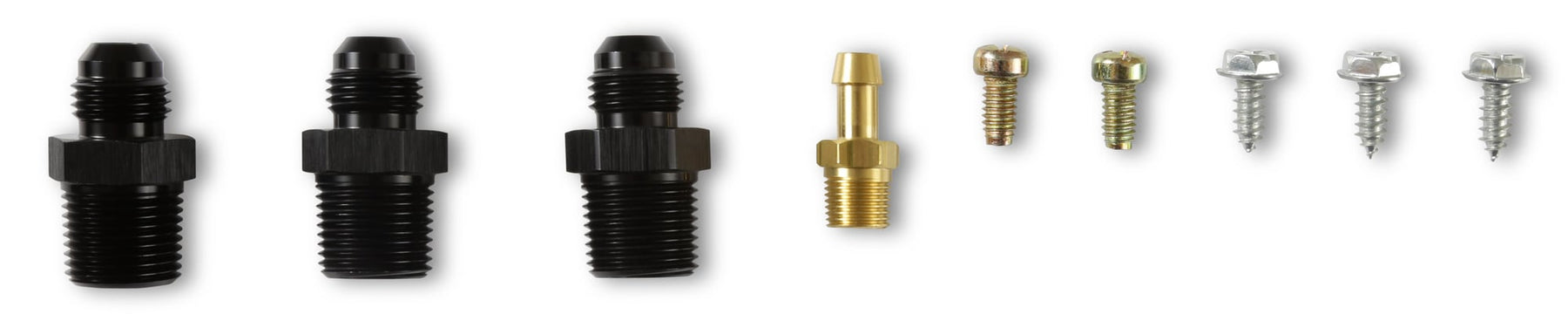

Holley EFI billet bypass fuel pressure regulator kit is part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for boost reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included for an easy installation.

• Die Cast Aluminum Construction
• Adjustable from 15-60 psi for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 10 AN O-ring Inlet, Outlet, and 8 AN O-ring Return Port

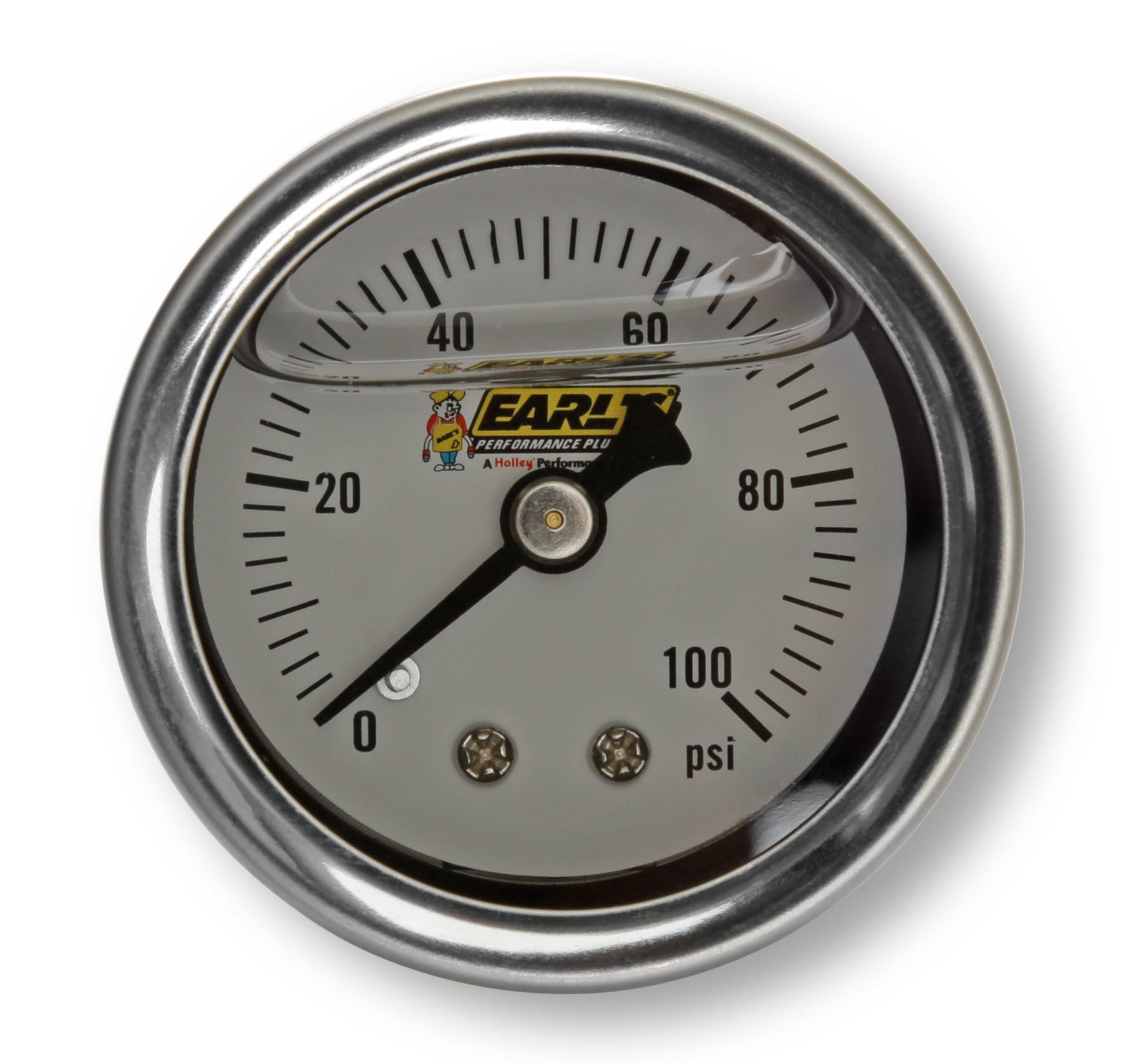

• 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
• 1/8" NPT Boost Reference (1:1) and Barbed Fitting
• Included mounting bracket

Specifications

• Adjustable: Yes
• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Color: Black
• Emission Code: 5
• Fuel Pressure Range: 15-60
• Fuel System: EFI
• Fuel Type: Gasoline
• Gauge Port: Yes
• Grade Type: Performance
• Inlet Port Diameter: -10AN
• Inlet Quantity: One
• Inlet Size: 10 AN O-ring
• Inlet Type: ORB
• Material: Aluminium
• Maximum Pressure Reading: 60 PS
• Mounting Hardware Included: Yes
• Mounting Type: Bolt On
• Outlet Port Diameter: -10AN
• Outlet Quantity: Two
• Outlet Size: 10 AN O-ring
• Outlet Type: ORB
• Part Type: Fuel Injection Pressure Regulator
• Port Quantity: 5
• Pressure Range: 15-60 PSI
• Product Type: Fuel Pressure Regulator
• Return Size: 8 AN O-Ring
• Style: Bypass
• Sub Category: Fuel Injection System and Related Components
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 12-848KIT
