Holley EFI Billet Bypass Fuel Pressure Regulator Kit

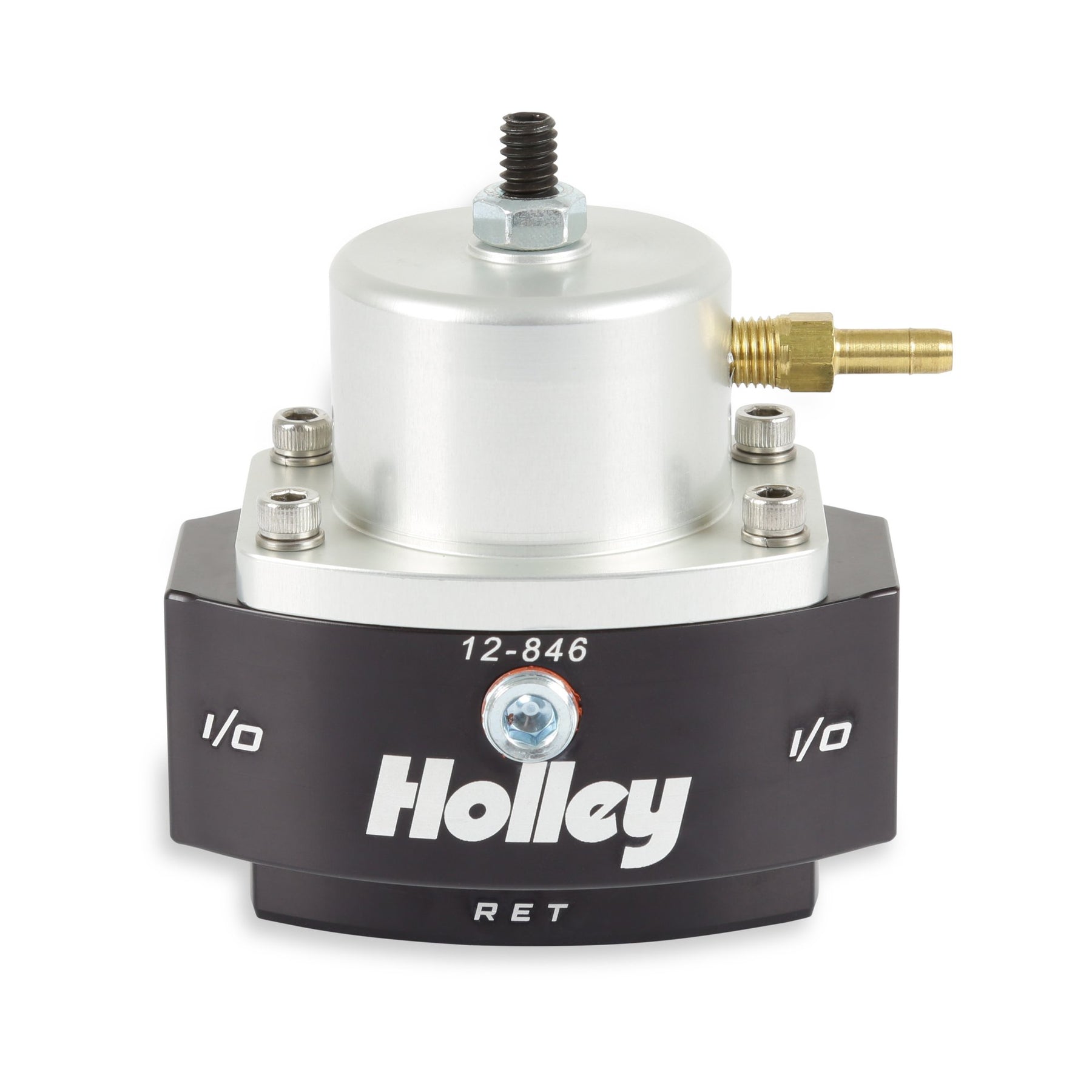

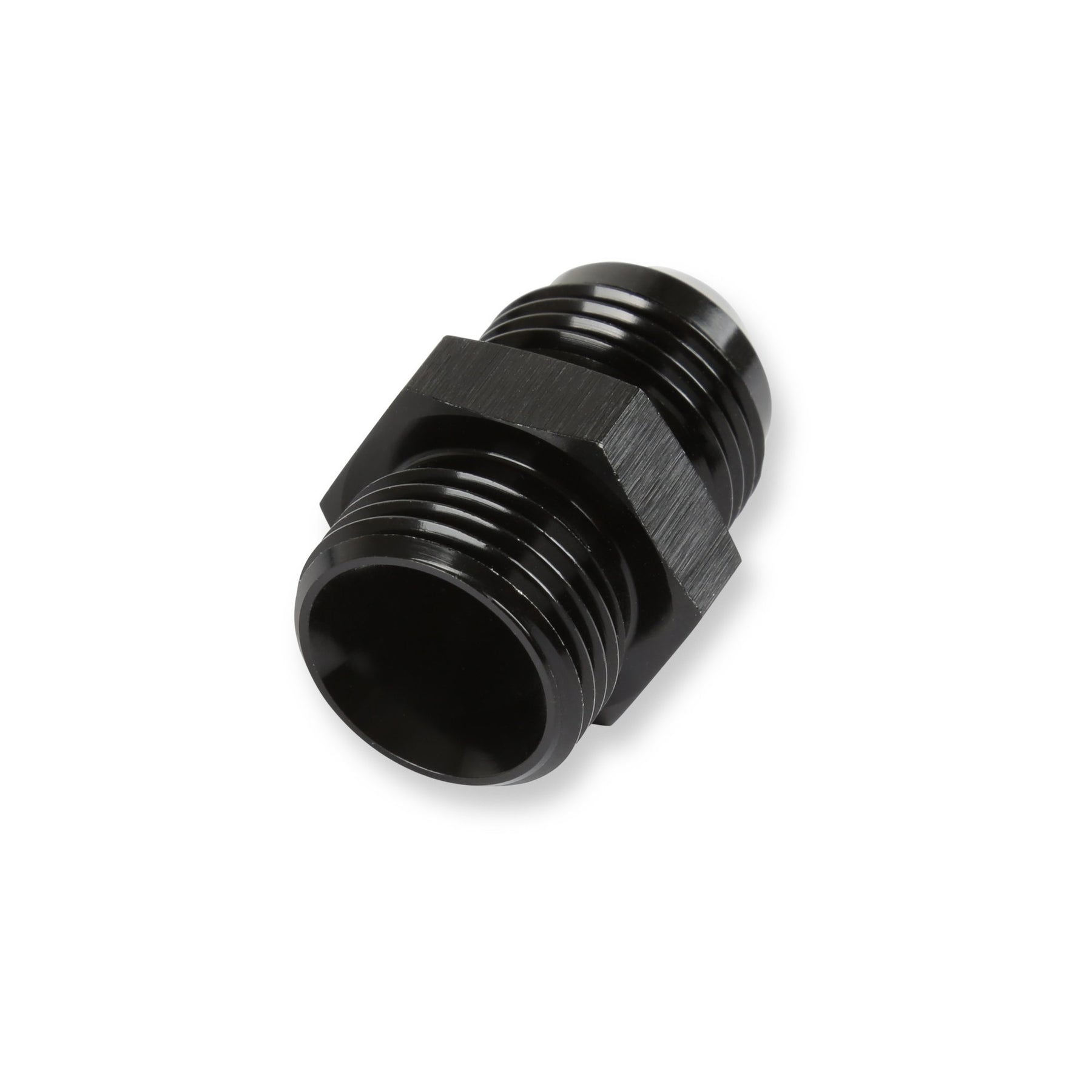

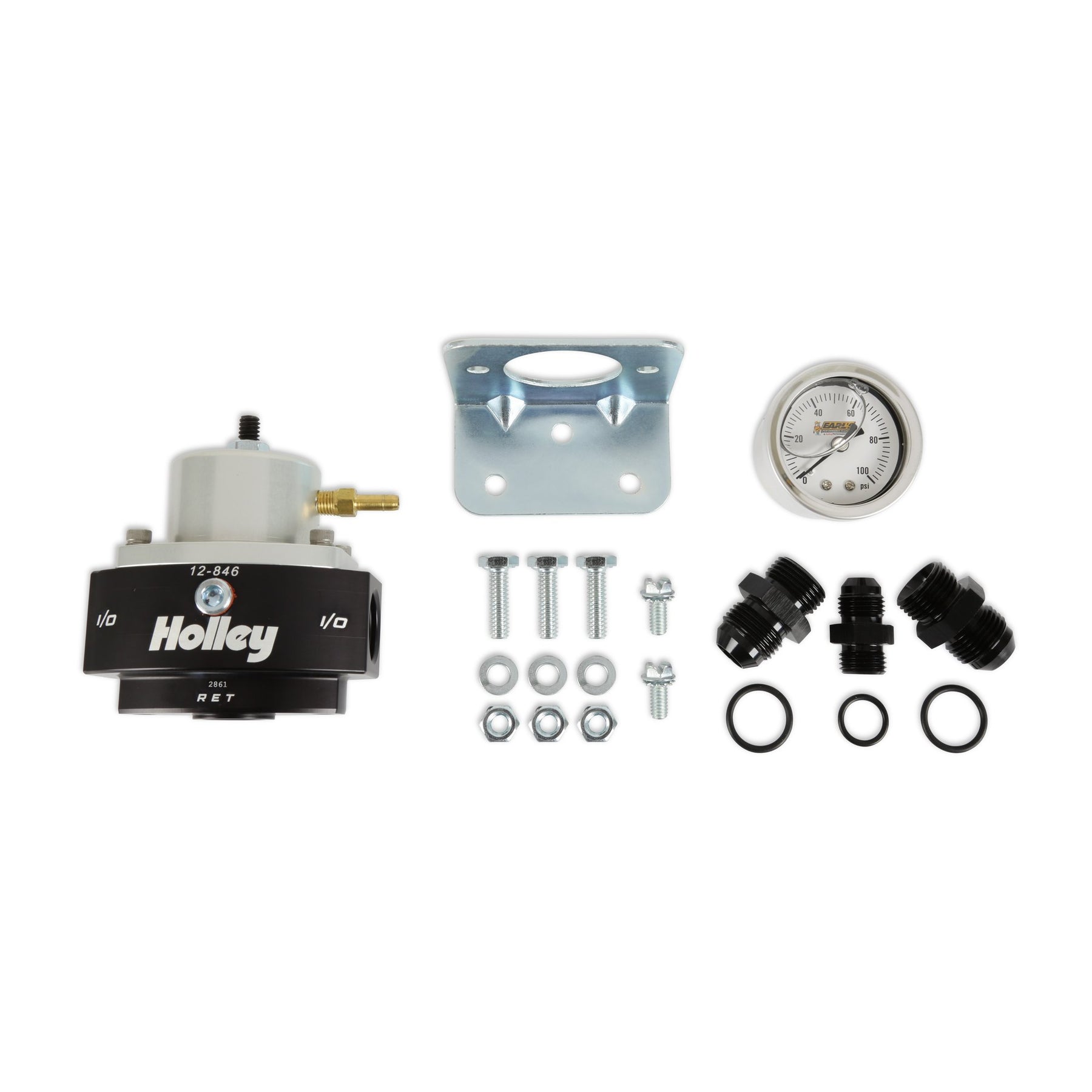

Holley EFI Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-846 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 8 AN in/out ports, a 6 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

• Die Cast Aluminum Construction
• Adjustable from 15-65 psi for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 8 AN O-ring Inlet, Outlet, and 6 AN O-ring Return Port

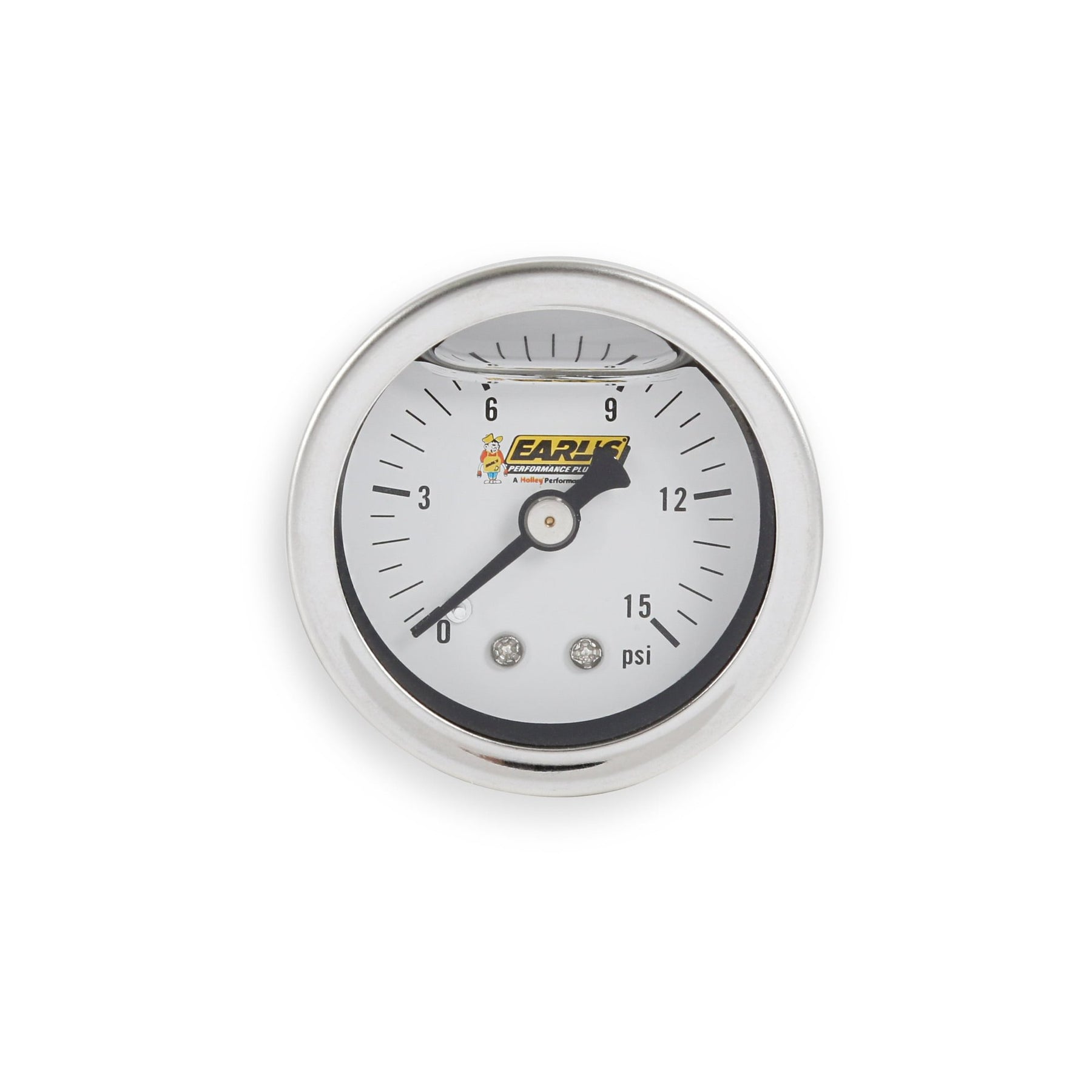

• 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
• 1/8" NPT Boost Reference (1:1) and Barbed Fitting

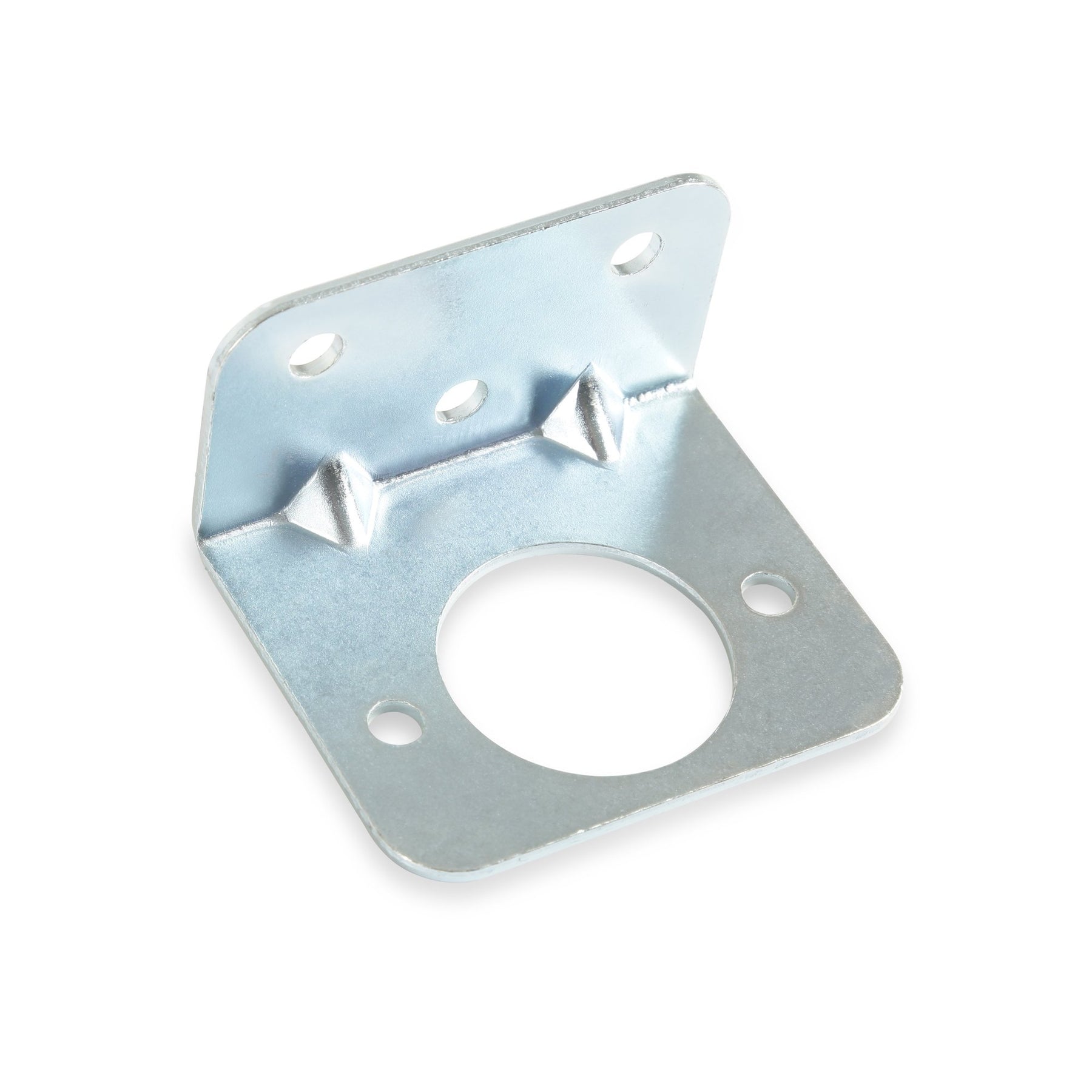

• Mounting Bracket Included

Specifications

• Adjustable: Yes
• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Color: Black
• Emission Code: 5
• Fuel Pressure Range: 15-65 PSI
• Fuel System: EFI
• Fuel System Type: EFI
• Fuel Type: Gasoline
• Gauge Port: Yes
• Grade Type: Performance
• Inlet Port Diameter: 8 ORB
• Inlet Quantity: 1
• Inlet Size: 8 ORB
• Inlet Type: ORB
• Material: Aluminium
• Mounting Hardware Included: Yes
• Mounting Type: Bolt On
• Outlet Port Diameter: 8 ORB
• Outlet Quantity: 2
• Outlet Size: 8 ORB
• Outlet Type: ORB
• Part Type: Fuel Injection Pressure Regulator
• Port Quantity: 4
• Pressure Range: 15-65 PSI
• Product Type: Fuel Pressure Regulator
• Return Size: 6 ORB
• Style: Bypass
• Sub Category: Fuel Injection System and Related Components
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 12-846KIT
