Holley Die Cast EFI Bypass Fuel Pressure Regulator Kit

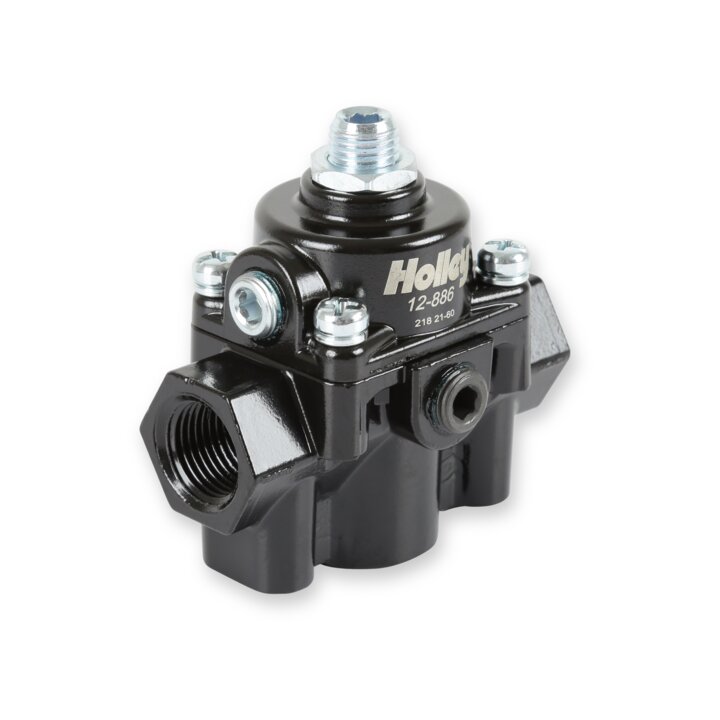

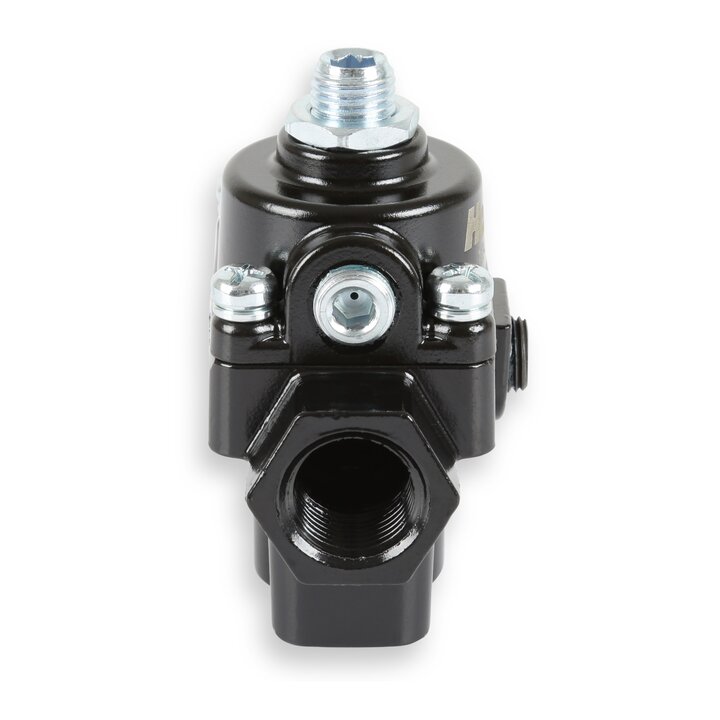

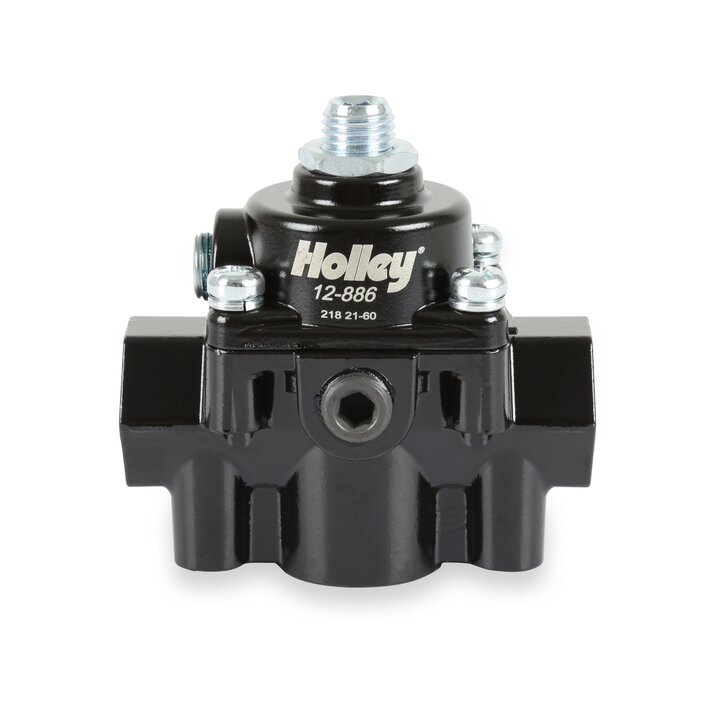

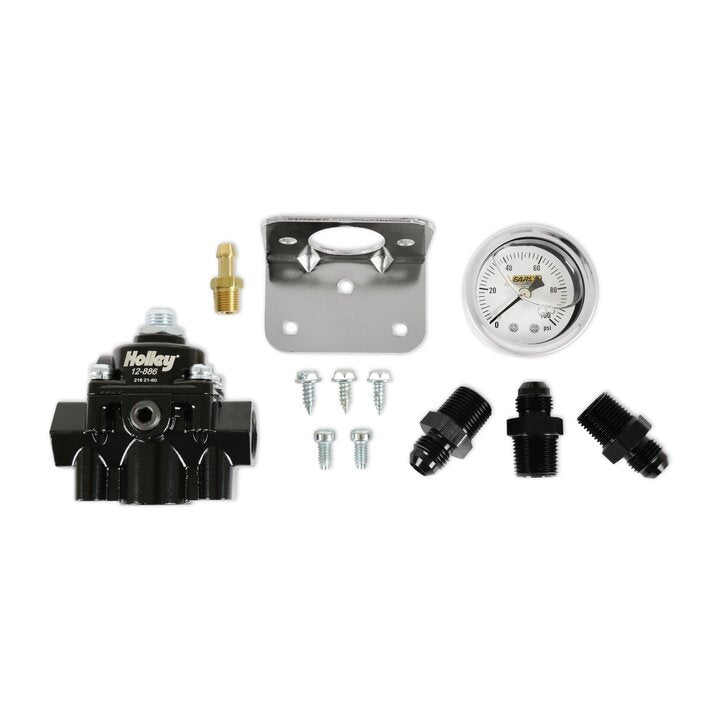

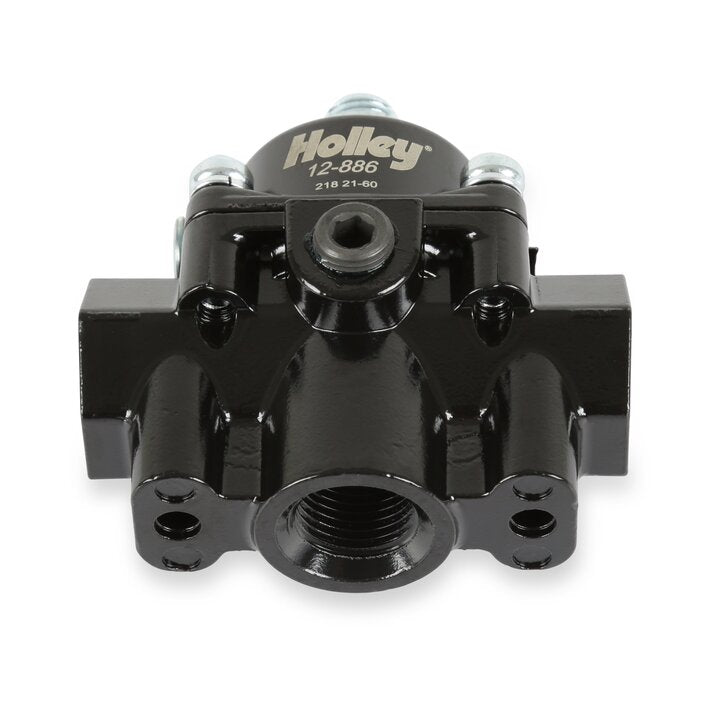

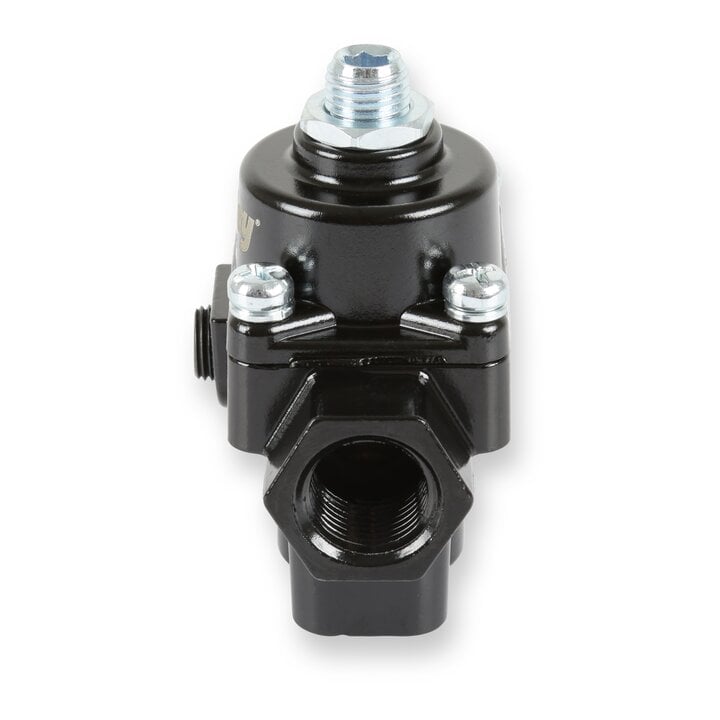

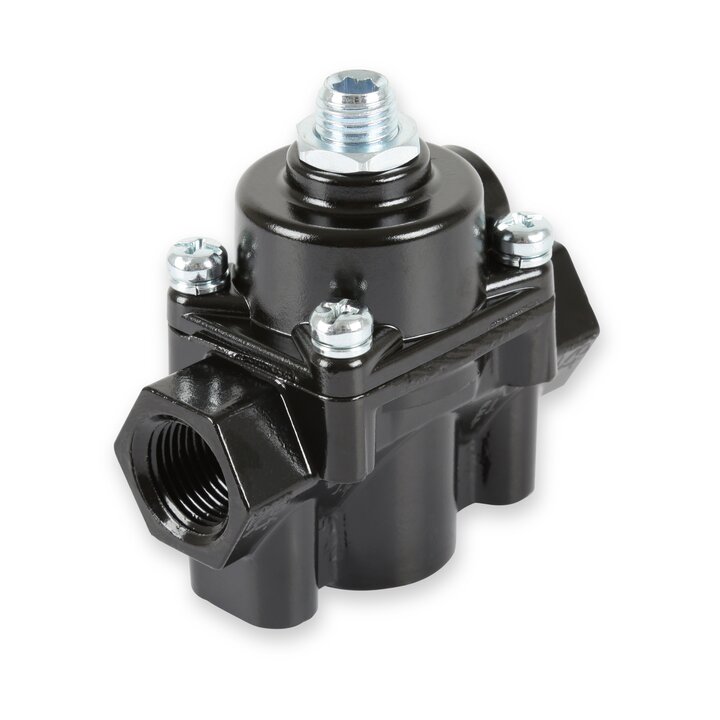

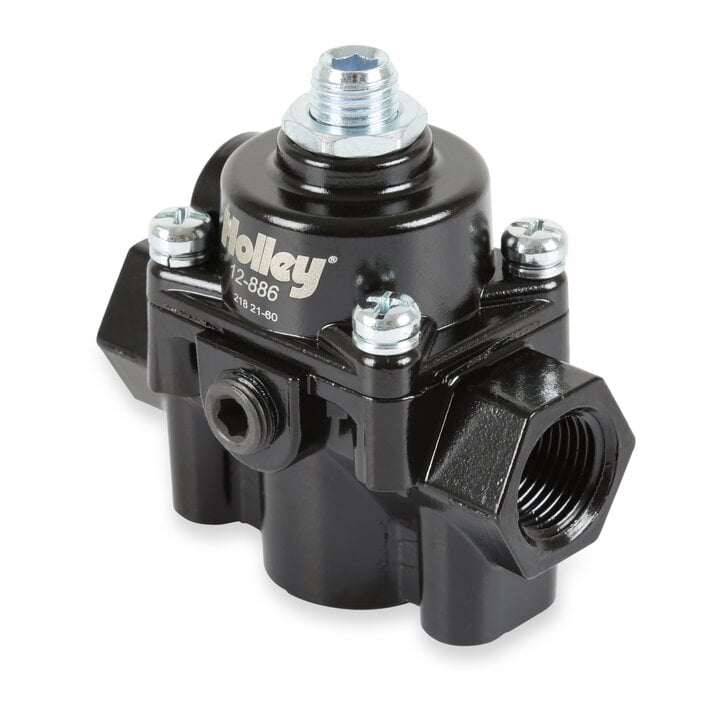

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-886 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Earl's 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

• Die Cast Aluminum Construction
• Adjustable from 15-60 psi for precise fuel pressure adjustments
• Used in return style systems with a line back to the fuel tank
• 3/8” NPT Inlet/Outlet Ports
• 3/8” NPT Return Port
• 1/8” NPT Gauge Port
• Earl's Fuel Pressure Gauge (100187ERL)

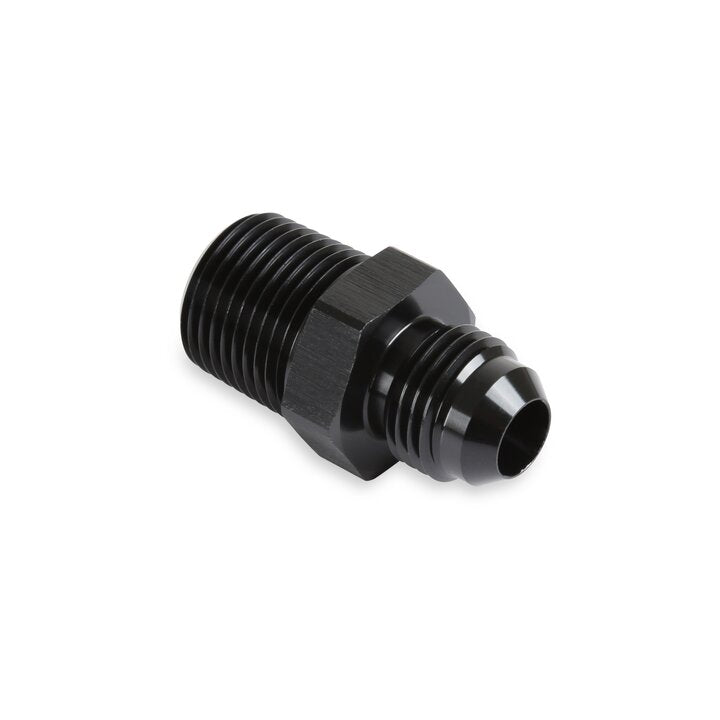

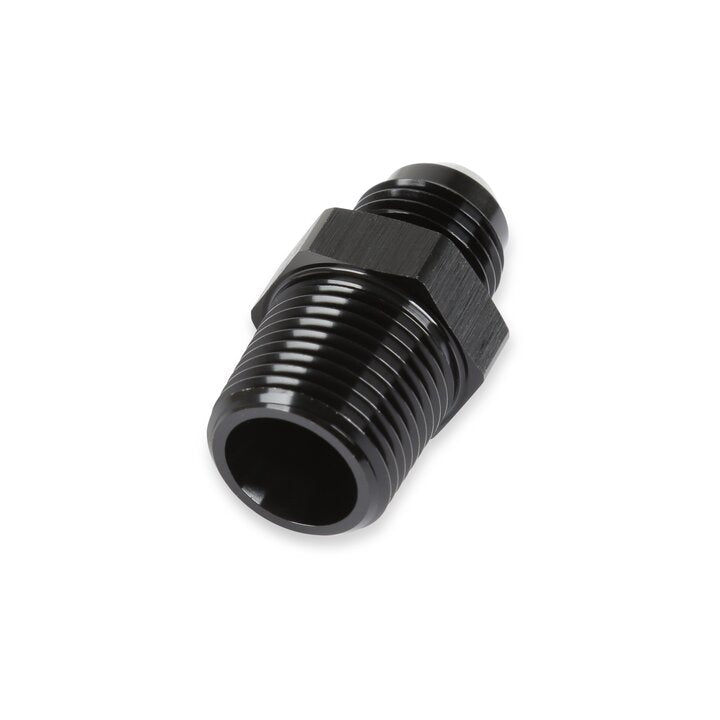

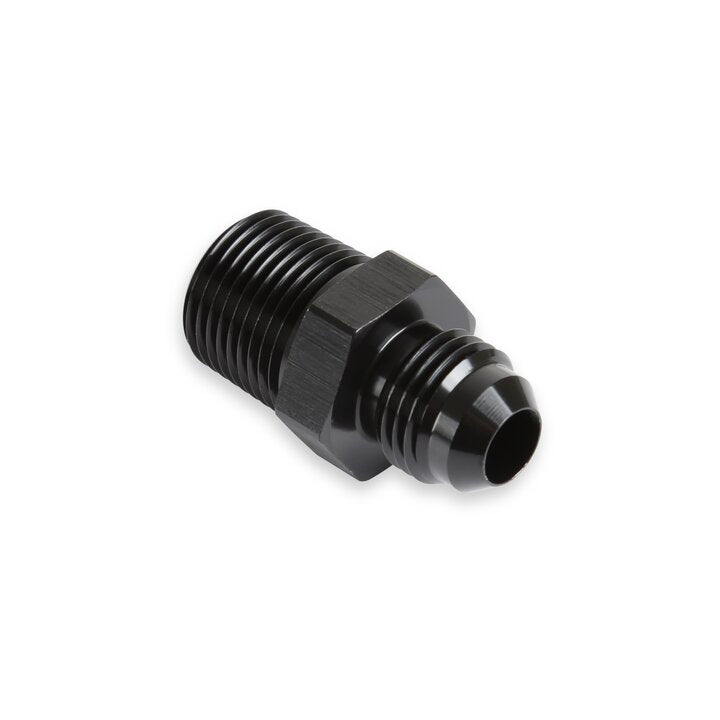

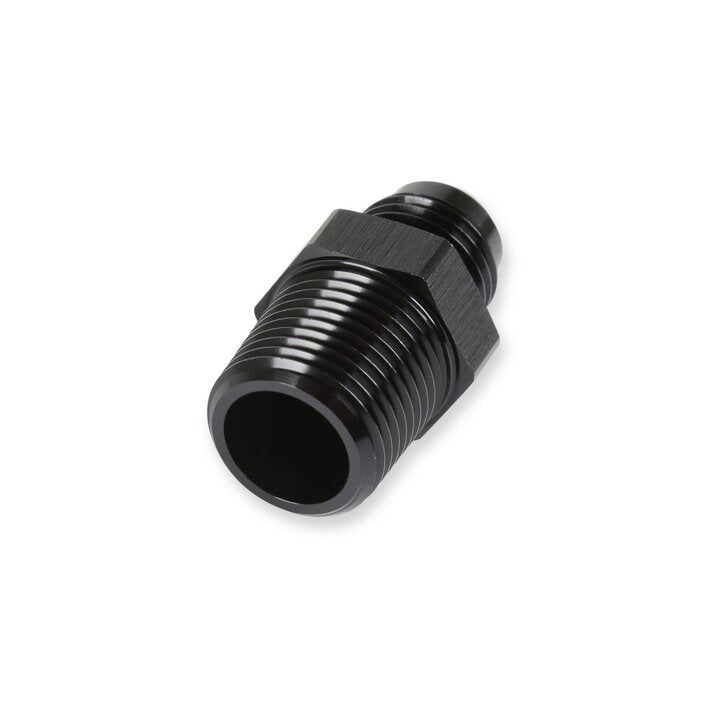

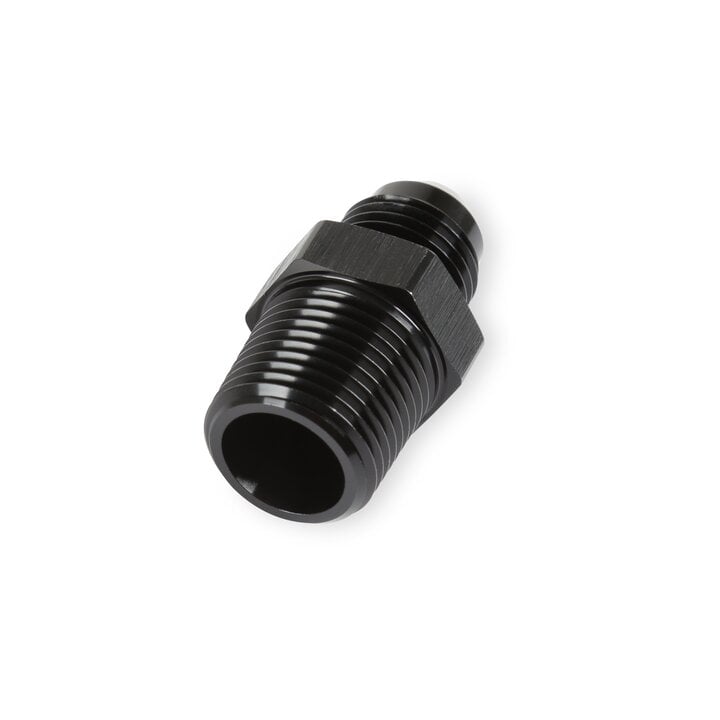

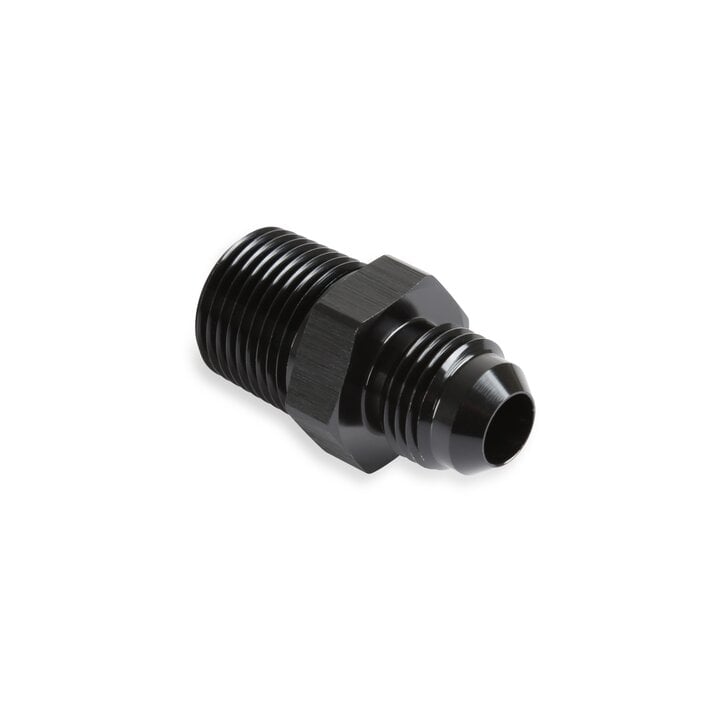

• Earl's 3/8” NPT to -6 AN fittings (AT981666ERL x3)

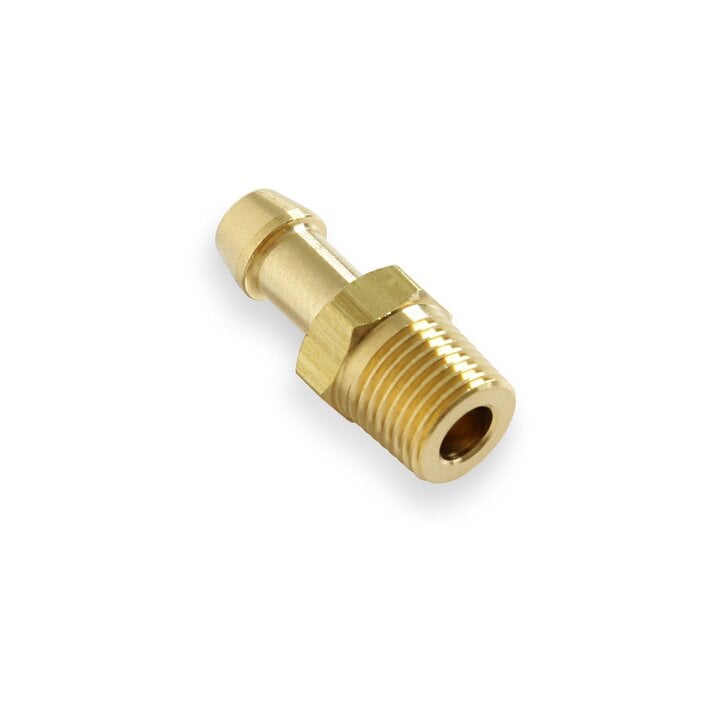

• 1/8" NPT Boost Reference (1:1) and Barbed Fitting

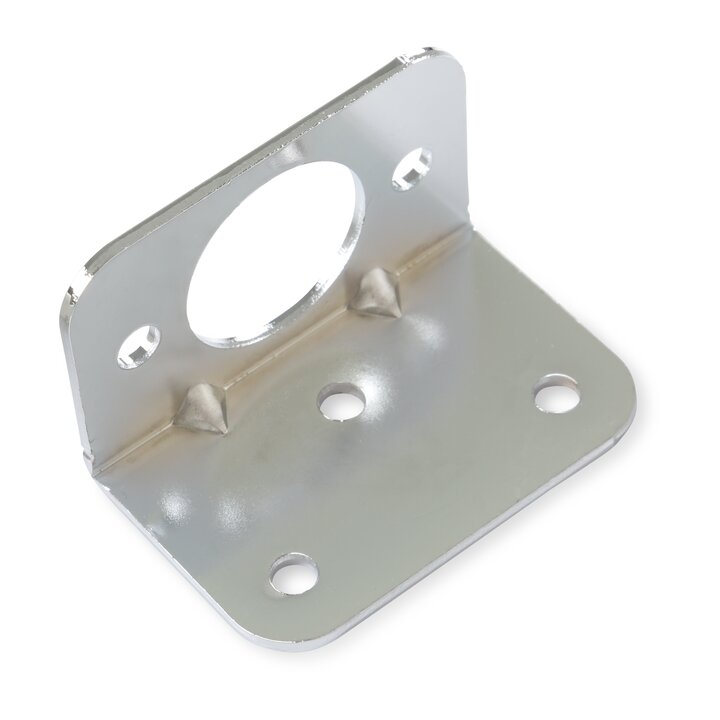

• Mounting Bracket Included

Specifications

• Adjustable: Yes
• Brand: Holley EFI
• Category: Air and Fuel Delivery
• Color: Black
• Emission Code: 5
• Fuel System: EFI
• Fuel System Type: EFI
• Fuel Type: Gasoline
• Gauge Port: Yes
• Grade Type: Performance
• Inlet Port Diameter: 3/8 NPT IN
• Inlet Quantity: One
• Inlet Size: 3/8 inch NPT
• Inlet Type: NPT
• Material: Aluminium
• Maximum Pressure Reading: 100 PS
• Mounting Hardware Included: Yes
• Mounting Type: Bolt On
• Outlet Port Diameter: 3/8 NPT IN
• Outlet Quantity: Two
• Outlet Size: 3/8 inch NPT
• Outlet Type: NPT
• Part Type: Fuel Injection Pressure Regulator
• Port Quantity: 5
• Pressure Range: 15-60 PSI
• Product Type: Fuel Pressure Regulator
• Return Size: 3/8 inch NPT
• Style: Bypass
• Sub Category: Fuel Injection System and Related Components
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 12-886KIT
