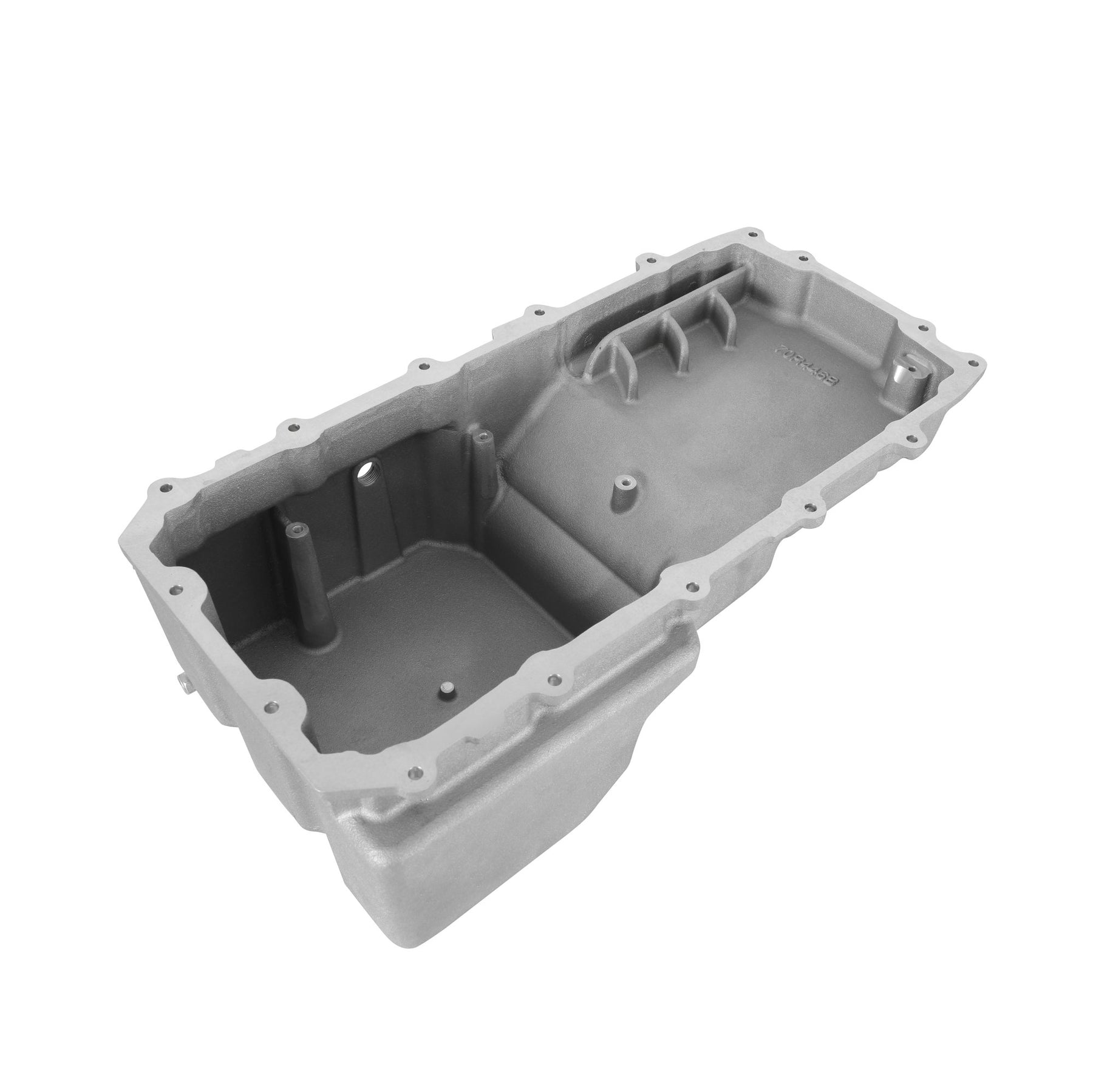

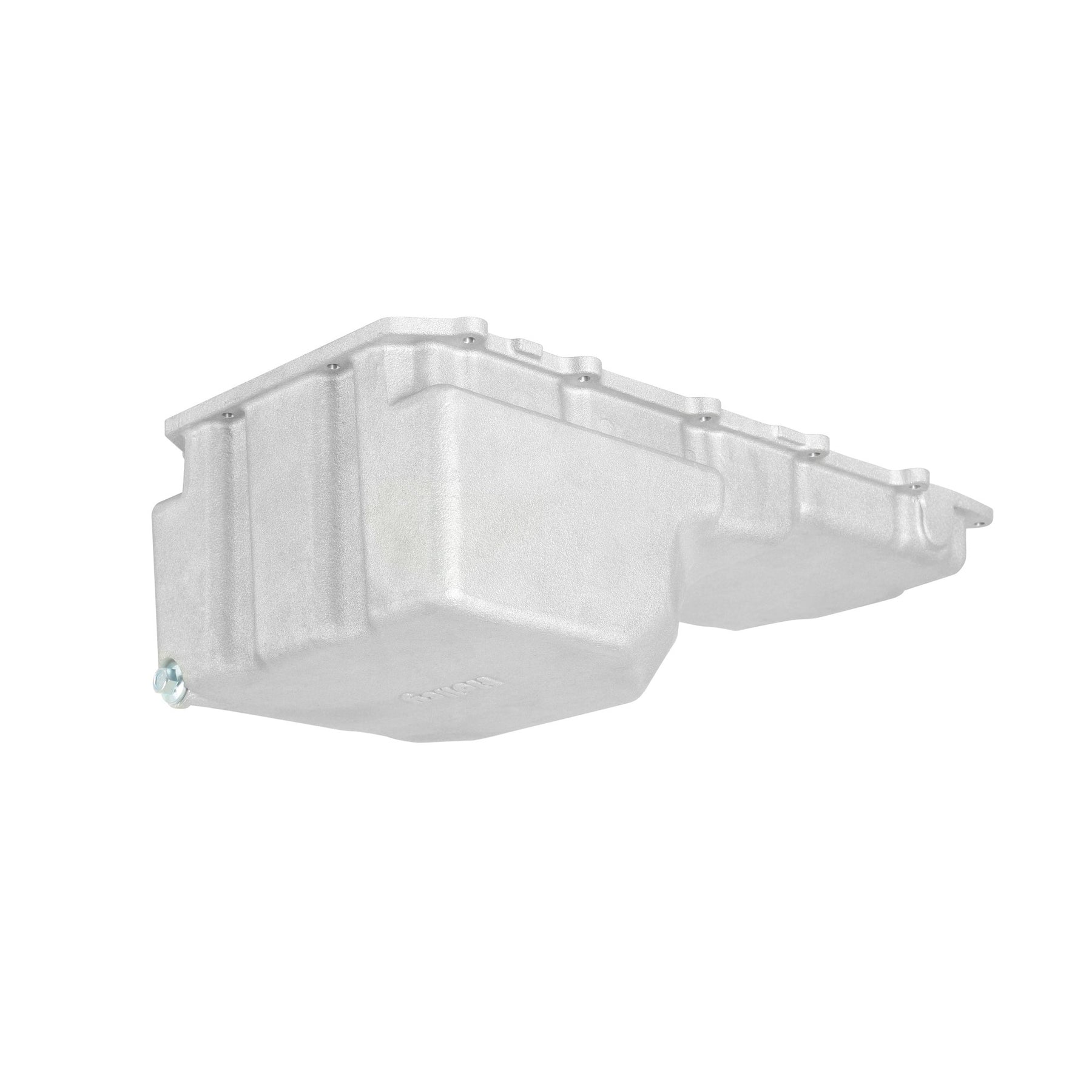

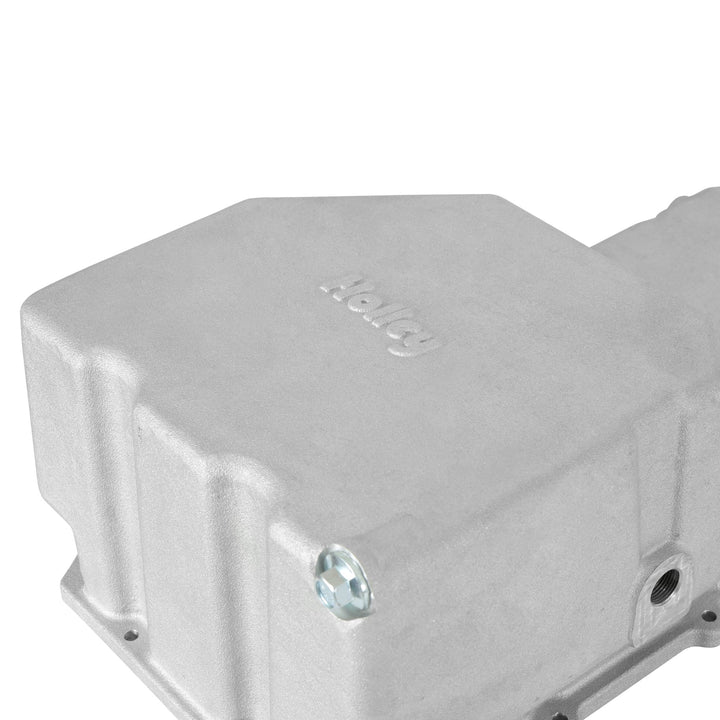

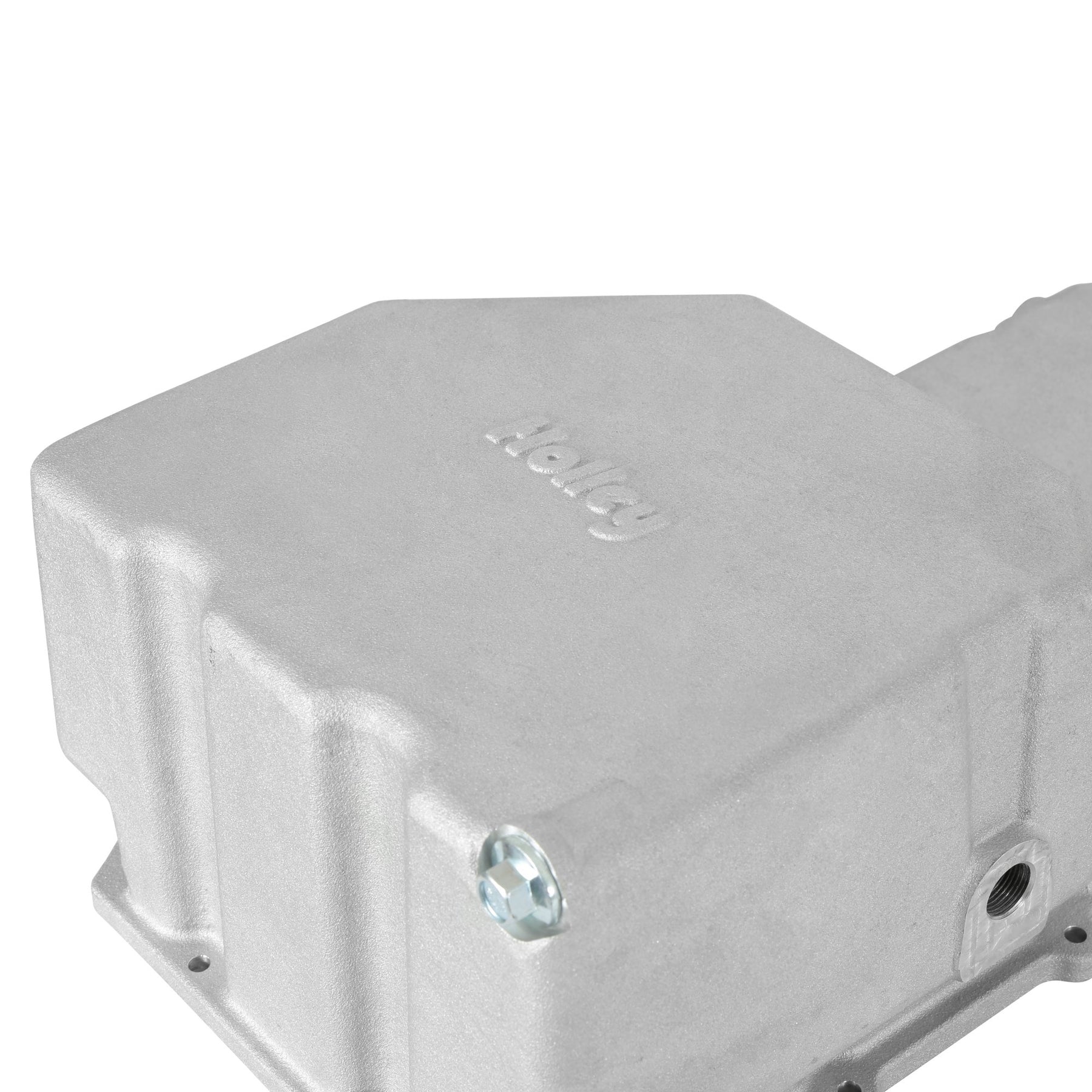

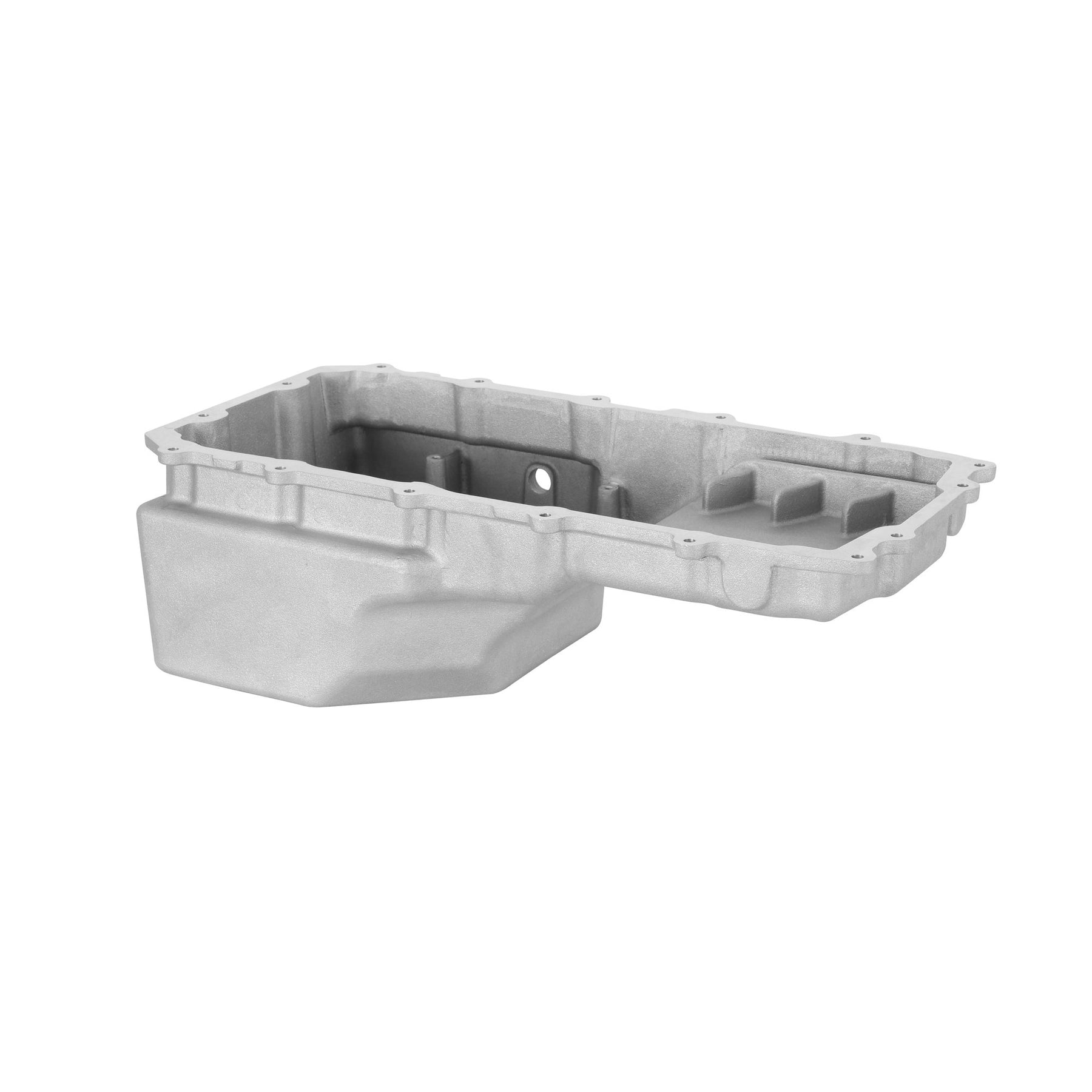

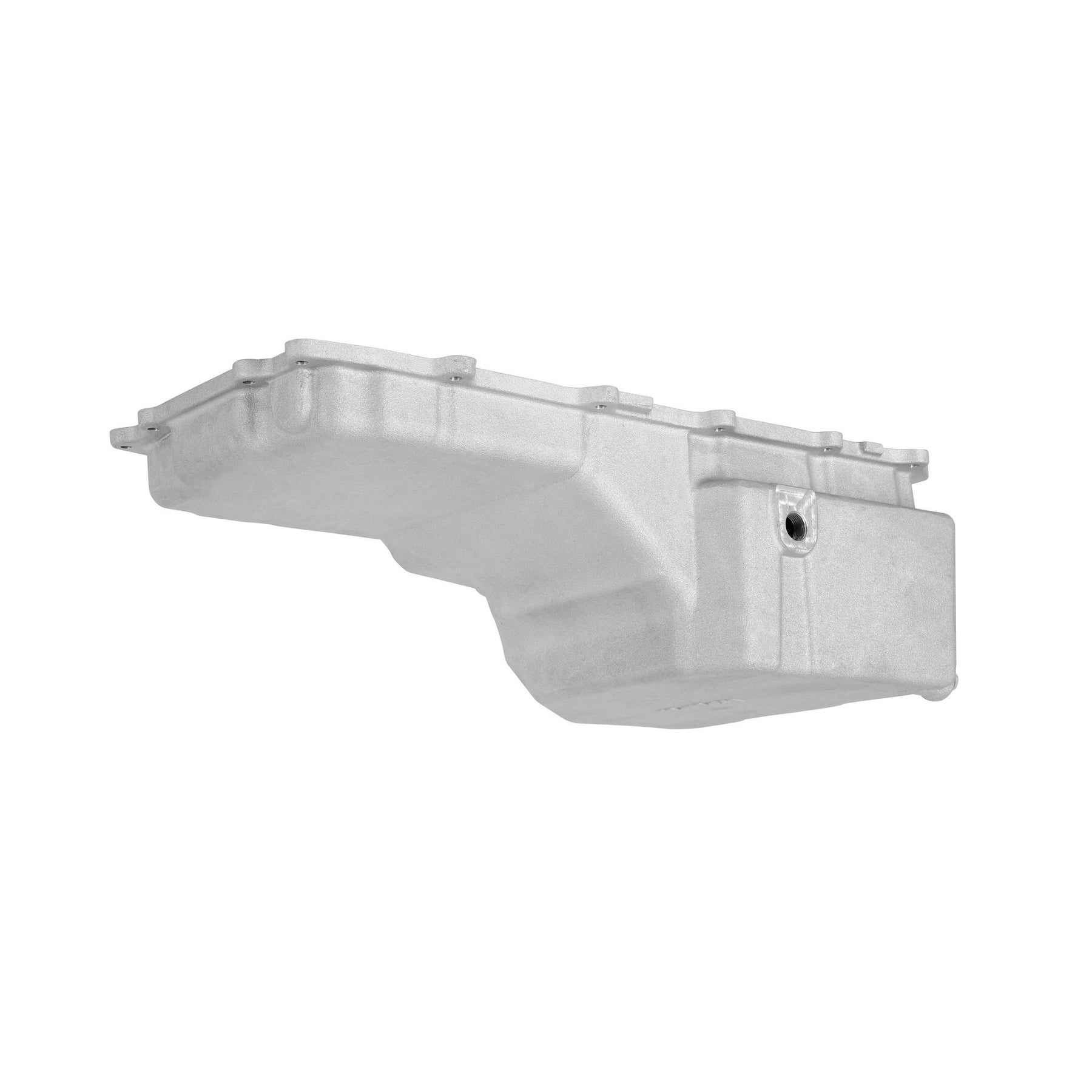

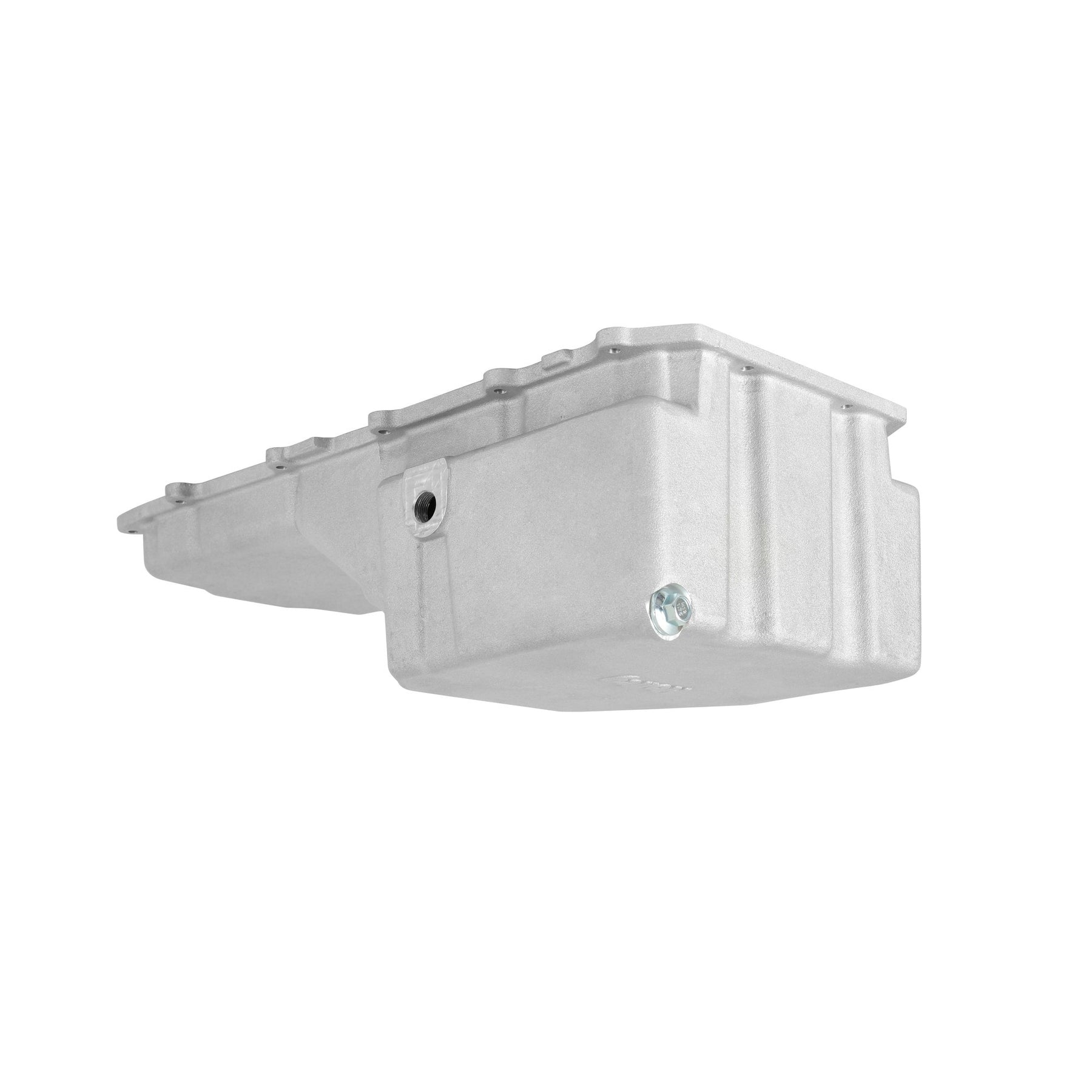

Holley's new Gen1/Gen2 Coyote oil pan makes your Ford Fox-Body Mustang swap easier. The oil pan design provides a healthy oil capacity of of 9.0 quarts (9.5 w/ stock filter) to ensure adequate oil supply in all street performance and factory-stock type racing applications. The new design installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics. A proprietary design pick-up tube/O-ring and lower sump baffle plate are included as well as two drain-back bosses (unmachined) for turbo applications or catch can returns.
The 302-47 was specifically designed to enable Coyote Gen 1 and 2 engine swaps in 1979-2004 Ford Fox-Body Mustangsusing a stock (1984-2004), AJE MU40-UM, Team Z Motorsports TZM-KM-SWAP, or Maximum Motorsports MMKM-2.1 (for Fox Body cars) or MMKM 2 (for SN95/New Edge cars) K-member and Hooker Blackheart engine mounting brackets. This pan is not compatible with the Maximum Motorsports MMKM-1 K-member.
The unique fitment geometry of this pan may also be suitable for use in other fitment challenged Coyote swap applications.
***You may need to make a custom tool from an inexpensive 1/4" drive 10mm deep socket to torque the outer bolt of the pick-up tube assembly flange to the oil pump. Image included in instructions.
- Provides 9 qts of oil capacity to ensure adequate oil supply in all street performance and factory-stock type racing applications.
- Oil pan fits 2011-2017 Gen I and II Coyote engines and provides more header, steering rack, and intake manifold clearance than other Coyote oil pans.
- Provides compatibility with OE Fox-Body/SN95 Mustang clutch release cables
- Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
- Provides compatibility with the stock Gen 1 and 2 Mustang Coyote engine low-oil level sensor

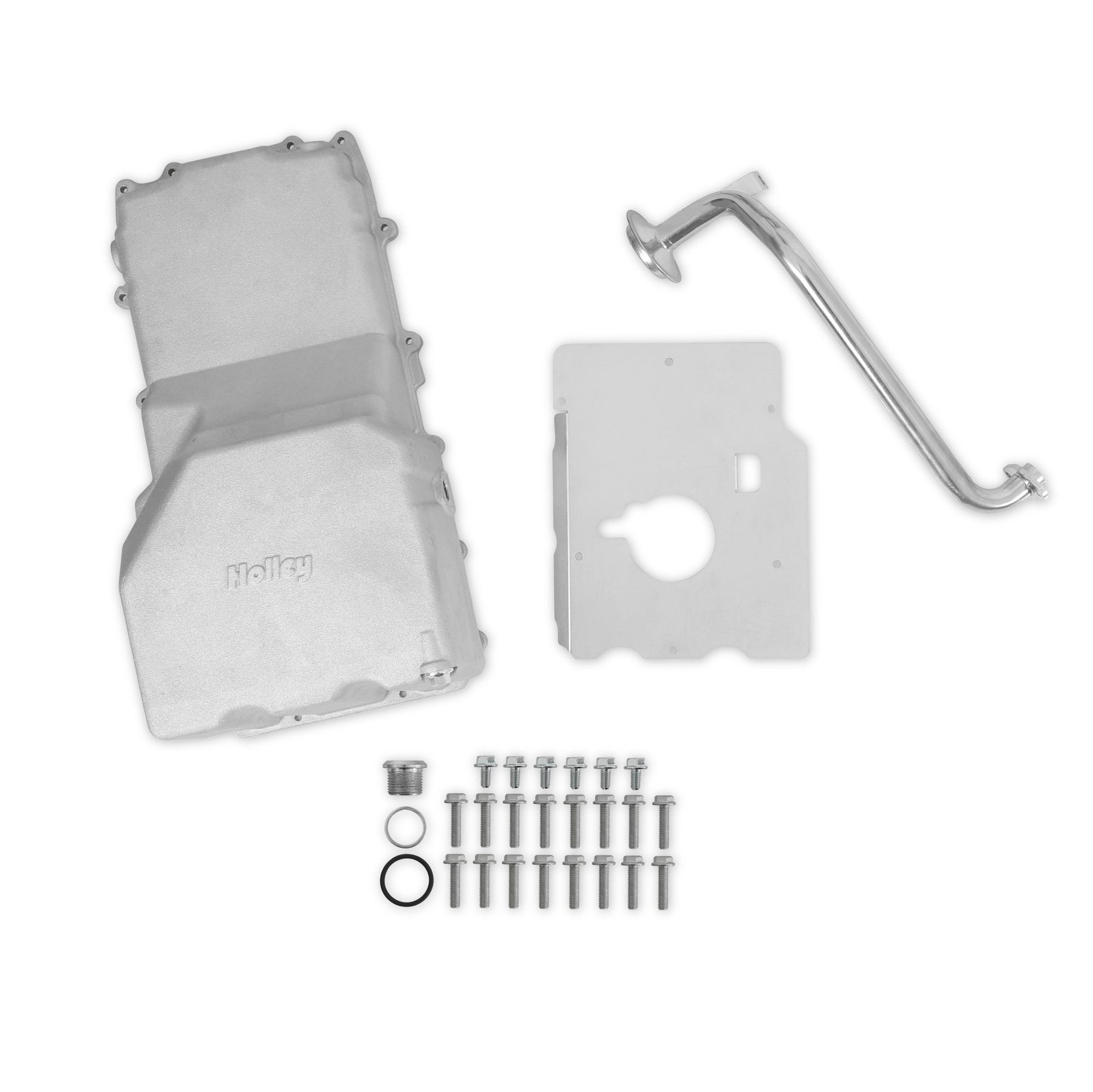

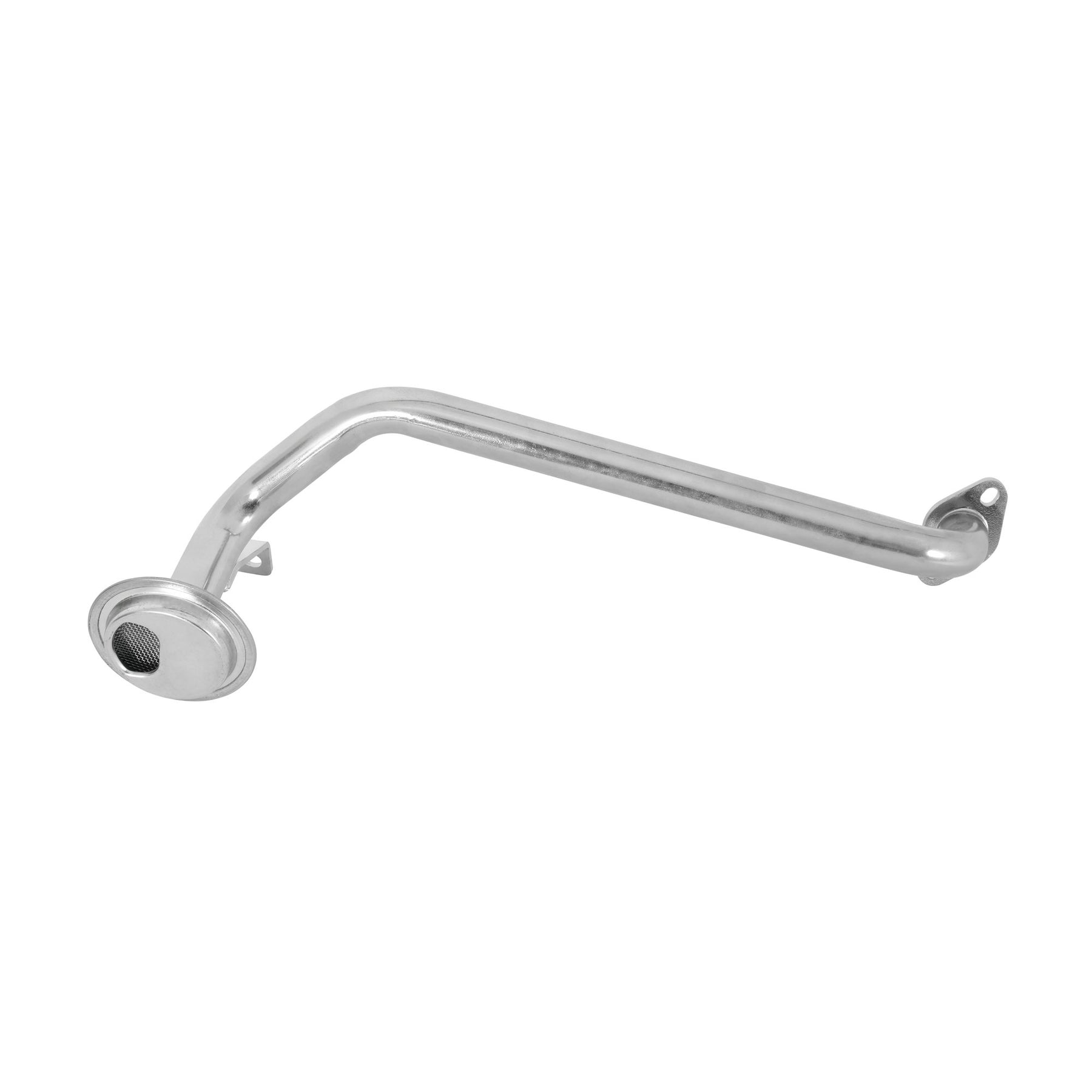

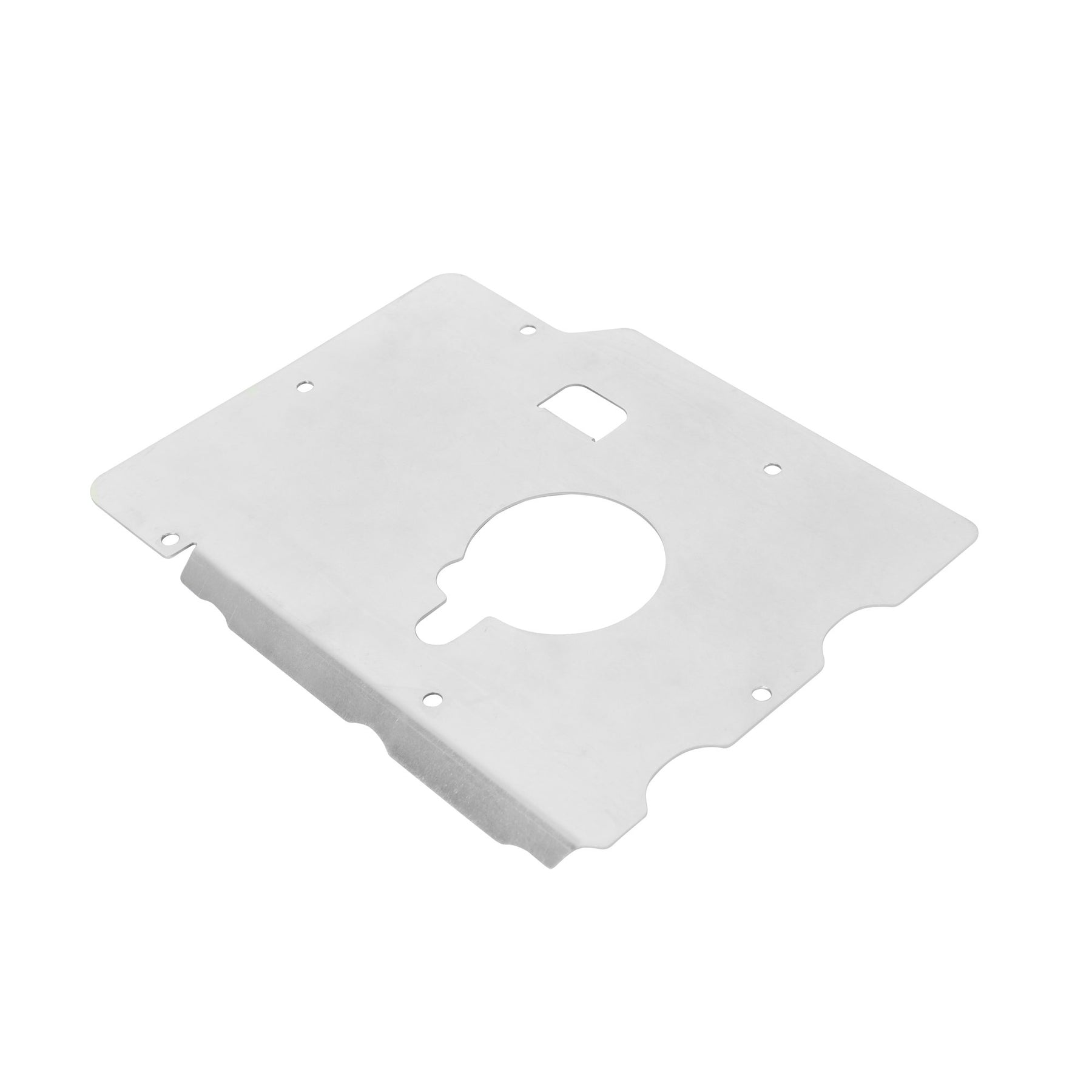

- Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.
- Provides 2 Bosses for drain-back for turbo applications (Unmachined)
- Traditional high-quality cast aluminum appearance with clean exterior styling
Specifications
-
Application: Ford Gen I & II Coyote Engines
-
Baffled: Yes
-
Brand: Holley
-
Capacity: 9 QT
-
Category: Engine
-
Color: Aluminum
-
Crank Shaft Wiper Included: No
-
Dipstick Port: No
-

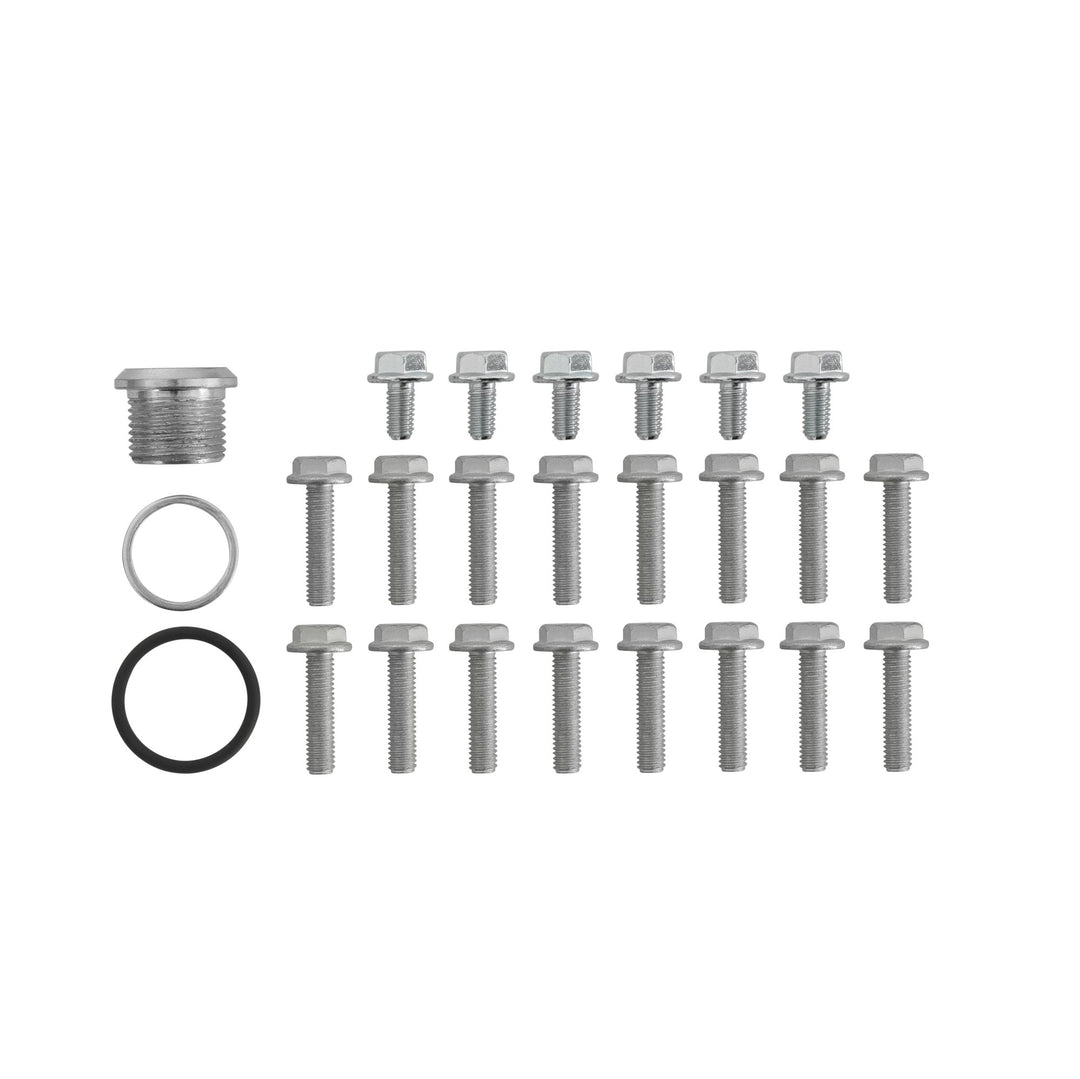

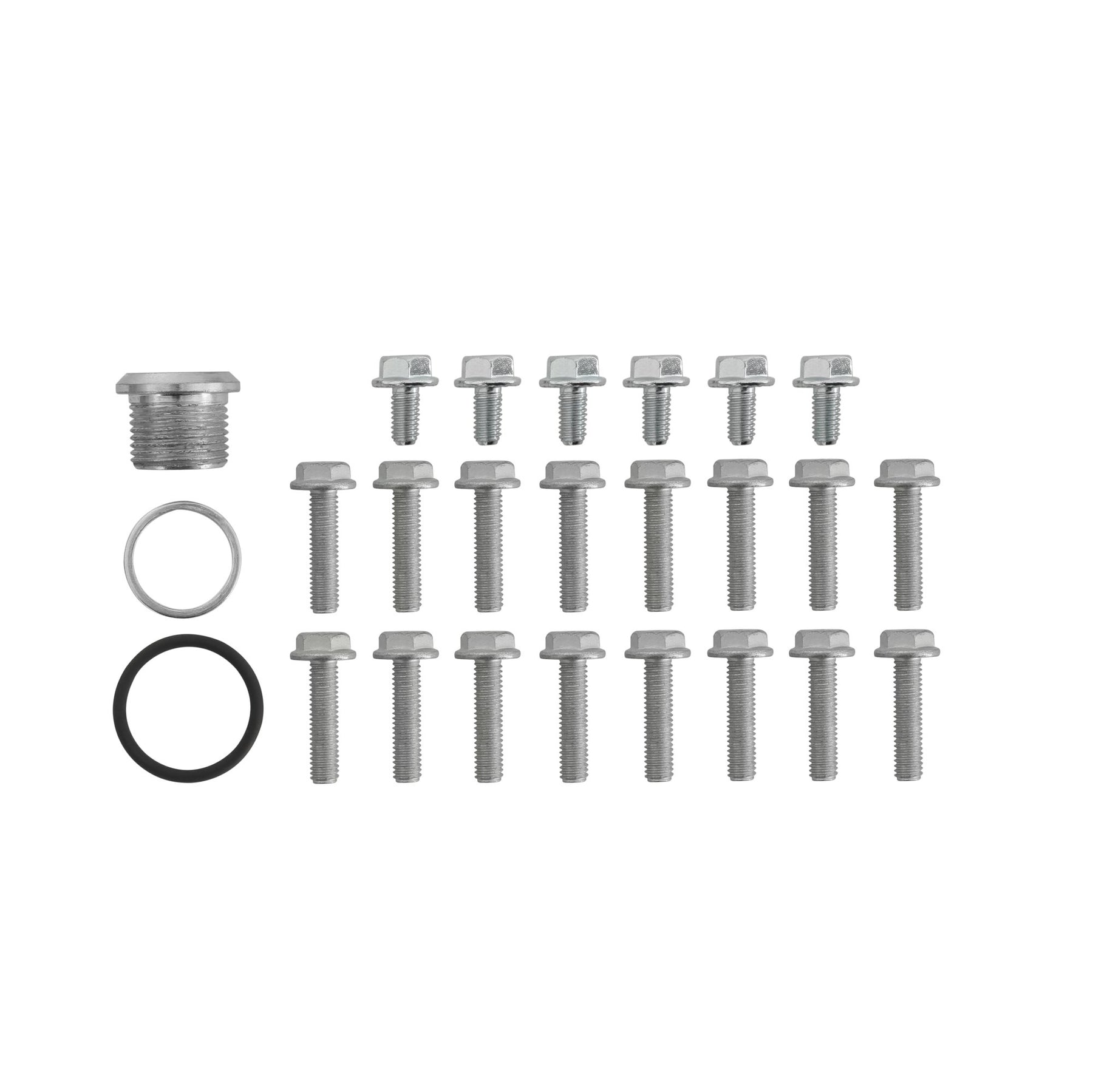

Drain Plug Included: Yes
-
Drain Thread Size: M12 x 1.75
-
Emission Code: 5
-
Engine: Ford Coyote
-
Finish: Natural Cast
-
Gasket Or Seal Included: No
-
Grade Type: Performance
-
Material: Cast Aluminum
-
Oil Pan Capacity: 9 QT
-
Oil Pan Type: Cast
-
Oil System Capacity (w/ filter): 9.5 QT
-
Part Type: Engine Oil Pan
-
Pickup Included: Yes
-
Product Type: Oil Pan Kit
-
Sub Category: Cylinder Block Components
-
Sump Location: Rear
-
Sump Type: Wet
-
Turbo Oil Drainback: Boss present (needs drilled and tapped)
-
Warranty: Manufacturer's Limited 90 Day Warranty
-
Windage Tray Included: No
-
Part Number: 302-47
