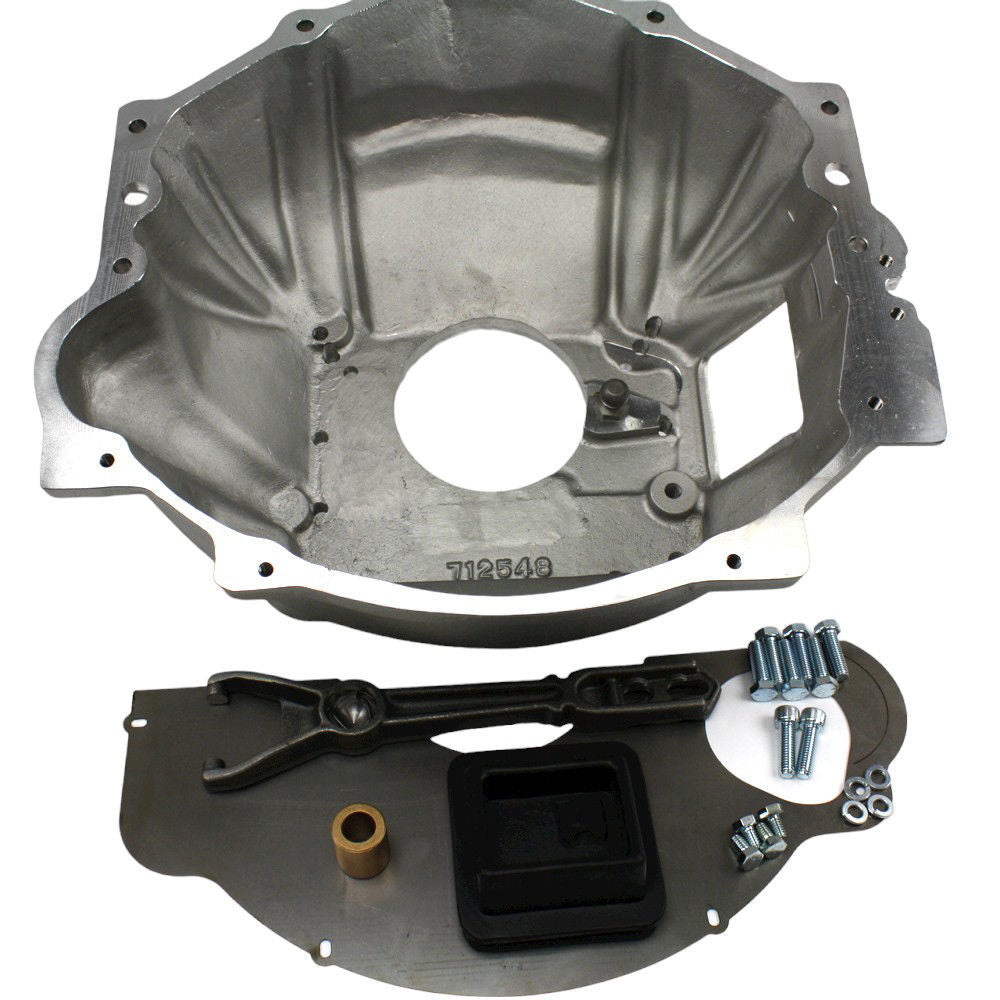

This cast aluminum bellhousing mates a GM 4.3L V6, small block V8 or LS engine to the 1993-95 GM NV4500 5-speed. It is complete and ready to bolt up.
Features
- 356 T-6 aluminum bellhousing
- Complete kit including universal dust cover, pilot bushing, throw-out arm, ball pivot and boot
- Also usable with the SM465 4-speed
What is included
- NV4500 to Chevy bellhousing (712577-BLK)
- Dust shield (712548-PLT)
- Stock Chevy .590 pilot bushing
- Throw-out lever, spring clip, ball pivot and boot
- Bolt pack and instructions
Fitment
- 1993-1995 GM NV4500, 2WD and 4WD, and Dodge NV4500 of the same years
- Chevy small block V8 Gen 1 and 2, 4.3L / 3.8L V6, and LS engines
- Muncie SM465 4WD
Good to know
- Not intended for a 1992-1995 Chevy/GM vehicle that originally came with the NV4500
- Order a new clutch, disc and throw-out bearing to complete the conversion
Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
