This bracket lets you run the stock GM hydraulic slave cylinder on Advance Adapters NV4500 bellhousings, which come with a mechanical style release arm.
Features
- Bolts to the bellhousing and provides a mounting flange for your factory slave cylinder
- Designed around 1985-1991 GM slave cylinders (NAPA 73117)
- Includes the new push rod and wedge needed to couple to the release arm

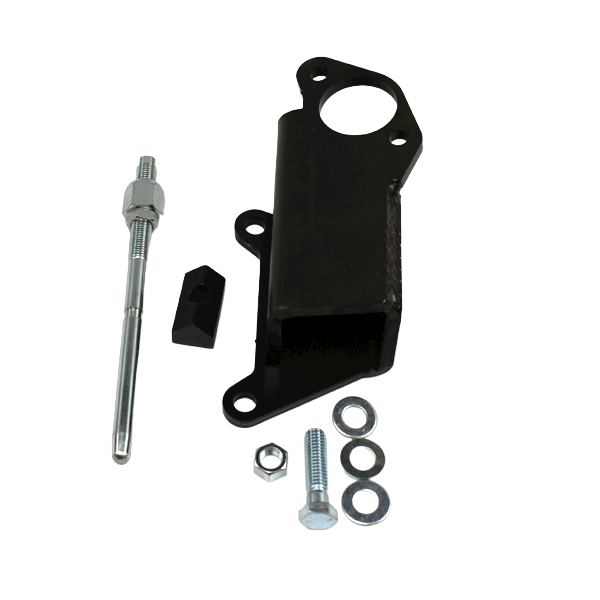

What is included
- Slave cylinder bracket
- Slave cylinder fork wedge (716139)
- Slave cylinder push rod 10mm-1.25 (716194)
- Washers and 3/8-16 x 1-1/2 bolts
Fitment
- Advance Adapters bellhousings 712577 and 712576
- Chevy small block V8 Gen 1 and 2, and 4.3L / 3.8L V6 NV4500 conversions
Good to know
- For GM truck NV4500 conversions only, not for Jeep V8 / NV4500 projects
- Remove the boot and stock push rod from the slave cylinder and replace it with the supplied push rod
Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
