Put a GM 4L80E two wheel drive automatic behind a 1971-84 NP205 transfer case when replacing a TH350 or SM465, using a 356 T-6 heat treated aluminum adapter.
Features
- Adapter is 4.00 inches long and the transmission and adapter measure 30.00 inches overall
- 356 T-6 heat treated aluminum alloy
- Provision for a factory GM transmission mount
- Designed to replace the 10 or 27 spline male inputs

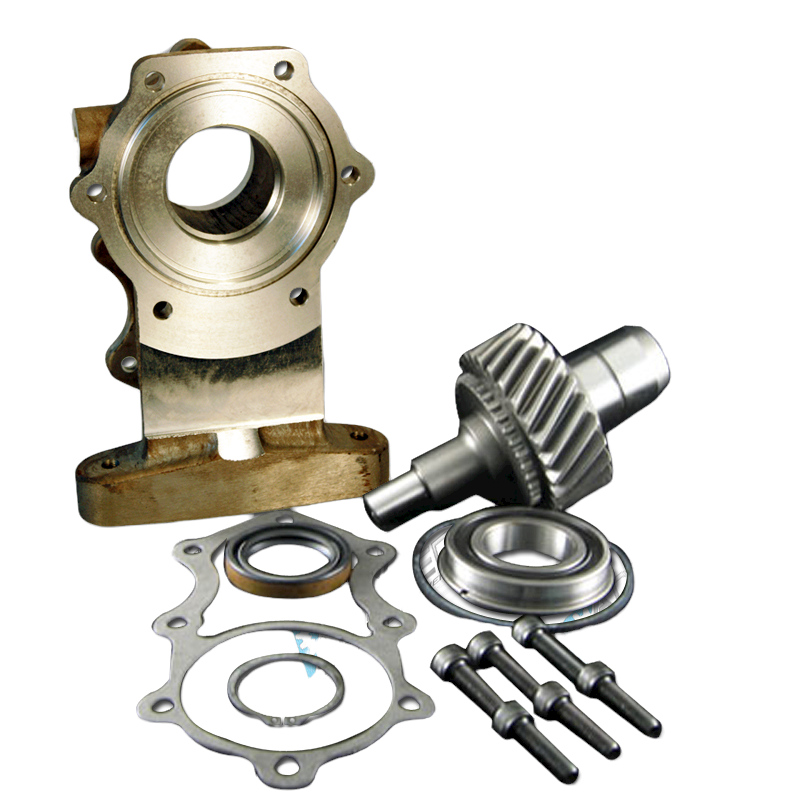

What is included
- Adapter housing
- New 32 spline input
- Input gear bearing
- Gaskets and seal
- Fastening hardware and instructions
Fitment
- GM NP205 with a Figure 8 front bolt pattern, 1971-84
- GM 2WD 4L80E / 4L85E, 1991-2006
Good to know
- The 2WD 4L80E must have a 6-1/2 inch slip yoke output shaft and a GM 2WD 4L80E output shaft speed sensor must be used
- If the NP205 has a 32 spline female input, the new 32 spline input in the kit is not needed
Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
