Adapt a late model 4L60E, 2WD or 4WD with a removable bellhousing, to the GM NP205 with a 10 spline male input.
Features
- Two-piece adapter assembly with VSS sensor and tone wheel
- One-piece GM 700R4 output shaft made from 4340 alloy steel
- Clamp-on reluctor ring generates a 40 pulse per revolution signal for the control module
- Two sensor locations provided, with a plug for the unused hole

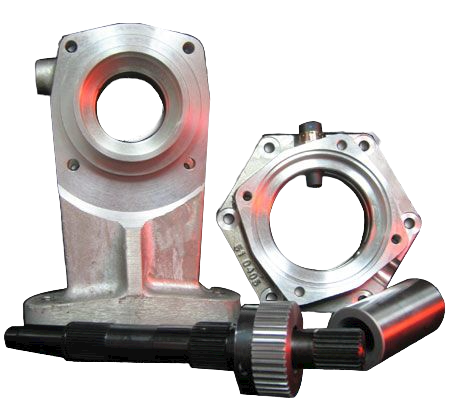

What is included
- Two-piece adapter with VSS sensor
- Tone wheel and clamp-on reluctor ring
- Short 4L60E main shaft / 700R output shaft
- 27 x 10 spline coupler
- O-ring, gaskets and fastening hardware
Fitment
- GM NP205 with a 10 spline male input
- GM 4L60E 2WD and 4WD, 1996-2006
- GM 4L65E / 4L70 2WD and 4WD, 2001-2006
Good to know
- The main shaft kit can also be used with the 4L60 and 4L60E overdrive automatics
Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
