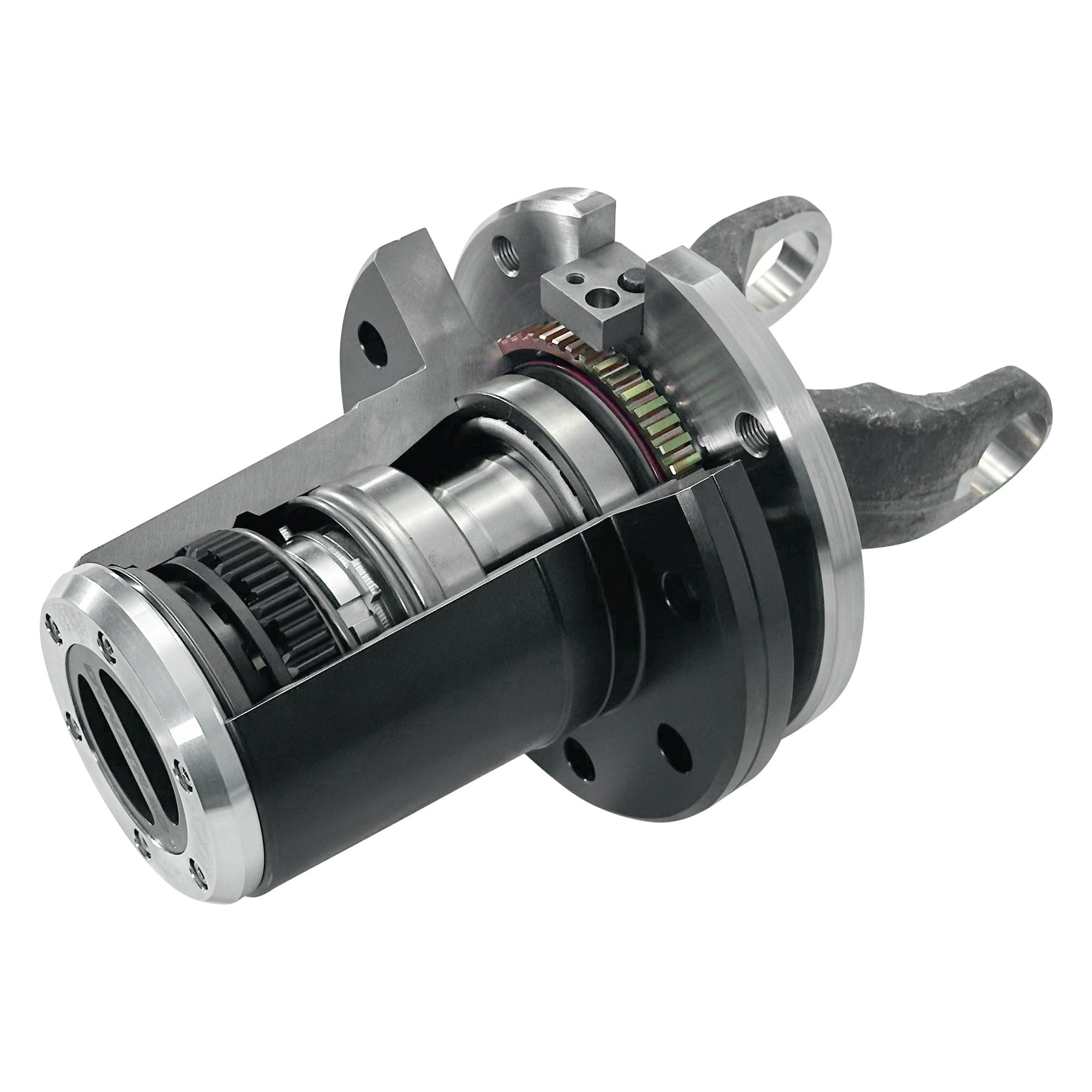

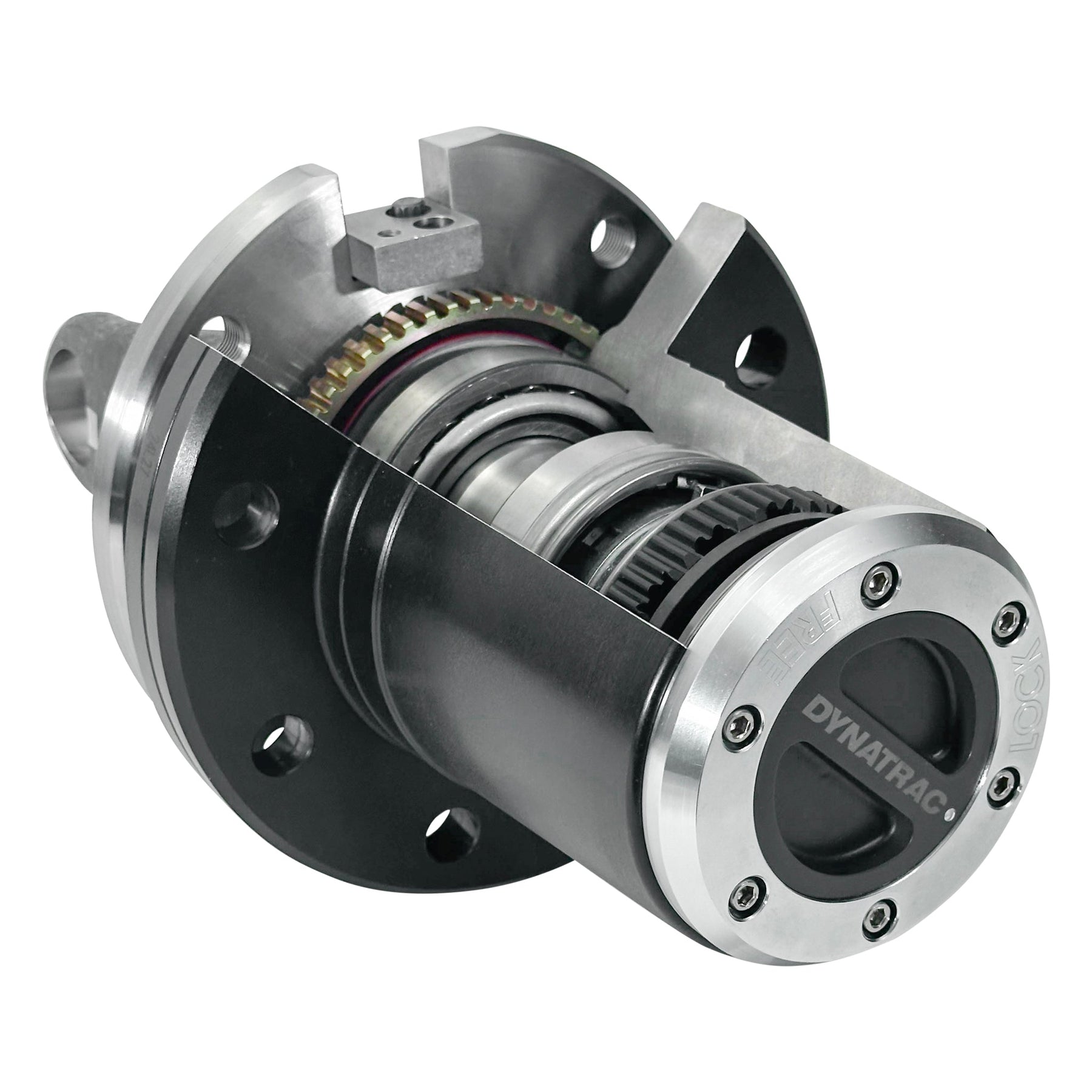

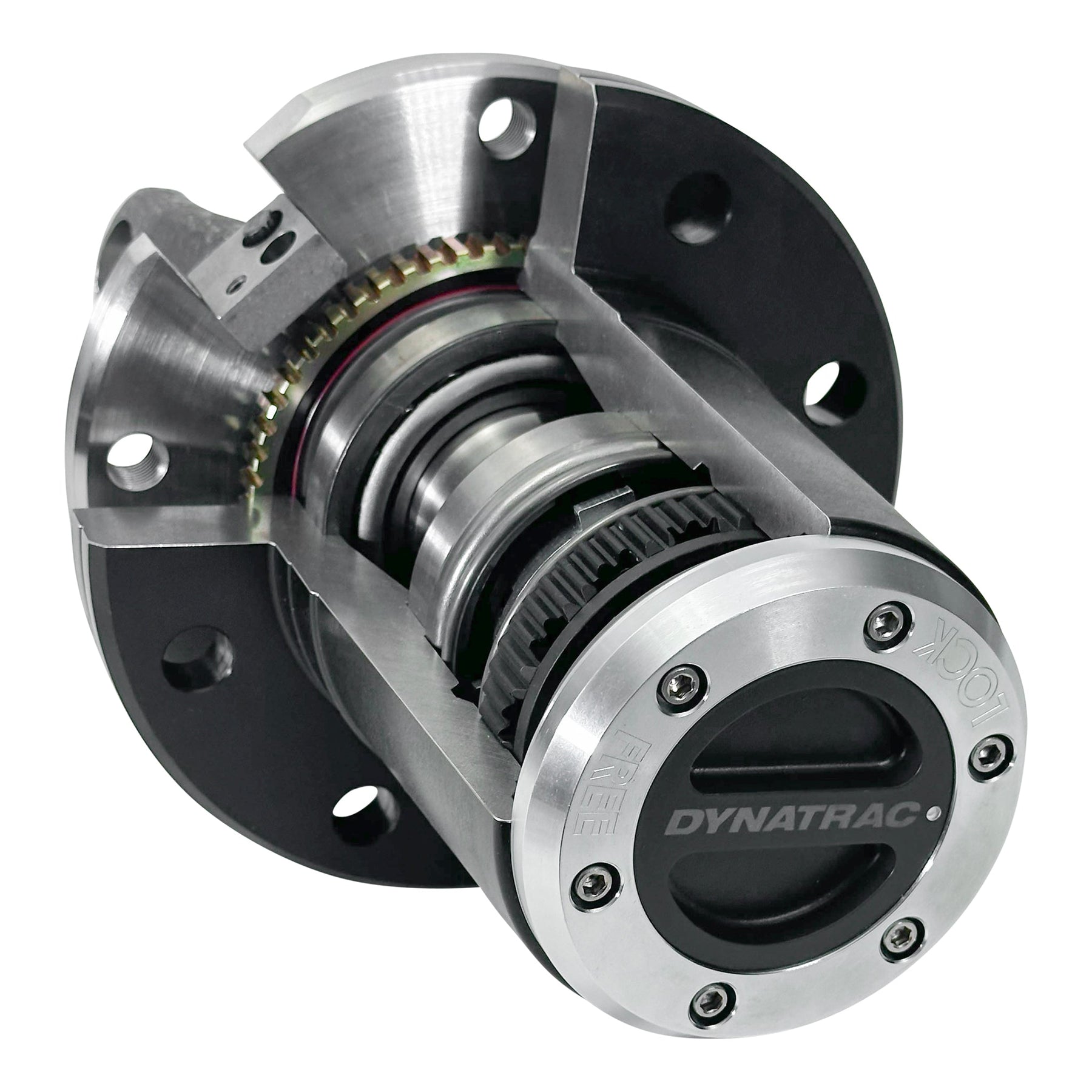

The Dynatrac Free-Spin hub conversion kit, SKU DT CR60-3X1104-J, replaces the factory unit bearings on 2010-2011 Dodge Ram 2500 and 3500 4x4 trucks with a fixed-spindle setup. It combines heat-treated chromoly spindles, serviceable Timken bearings and seals, and 35-spline, 1.50-inch outer axle shafts with DynaLoc locking hubs. Installation is bolt-on, with no machining or welding, and Dynatrac states the kits are made in the USA.
Why convert away from unit bearings
A factory unit bearing is a sealed assembly. Dynatrac describes it as non-serviceable, impossible to inspect, and prone to failure, so when it goes bad the entire unit is replaced. The Free-Spin conversion changes the front end to a conventional spindle with separate inner and outer tapered roller bearings, races, and a hub seal, so you can pull the hub, inspect the bearings, repack them, and replace only what is worn. Dynatrac lists a smoother ride, better fuel economy, and longer axle life as benefits of the design. Those are manufacturer claims, and results depend on the truck, tires, and driving.
What is in the kit
- Heat-treated chromoly spindles
- Cast nodular wheel hubs
- Serviceable Timken bearings, races, and seals
- 35-spline, 1.50-inch outer axle shafts
- DynaLoc manual locking hubs
- Wheel studs and mounting hardware

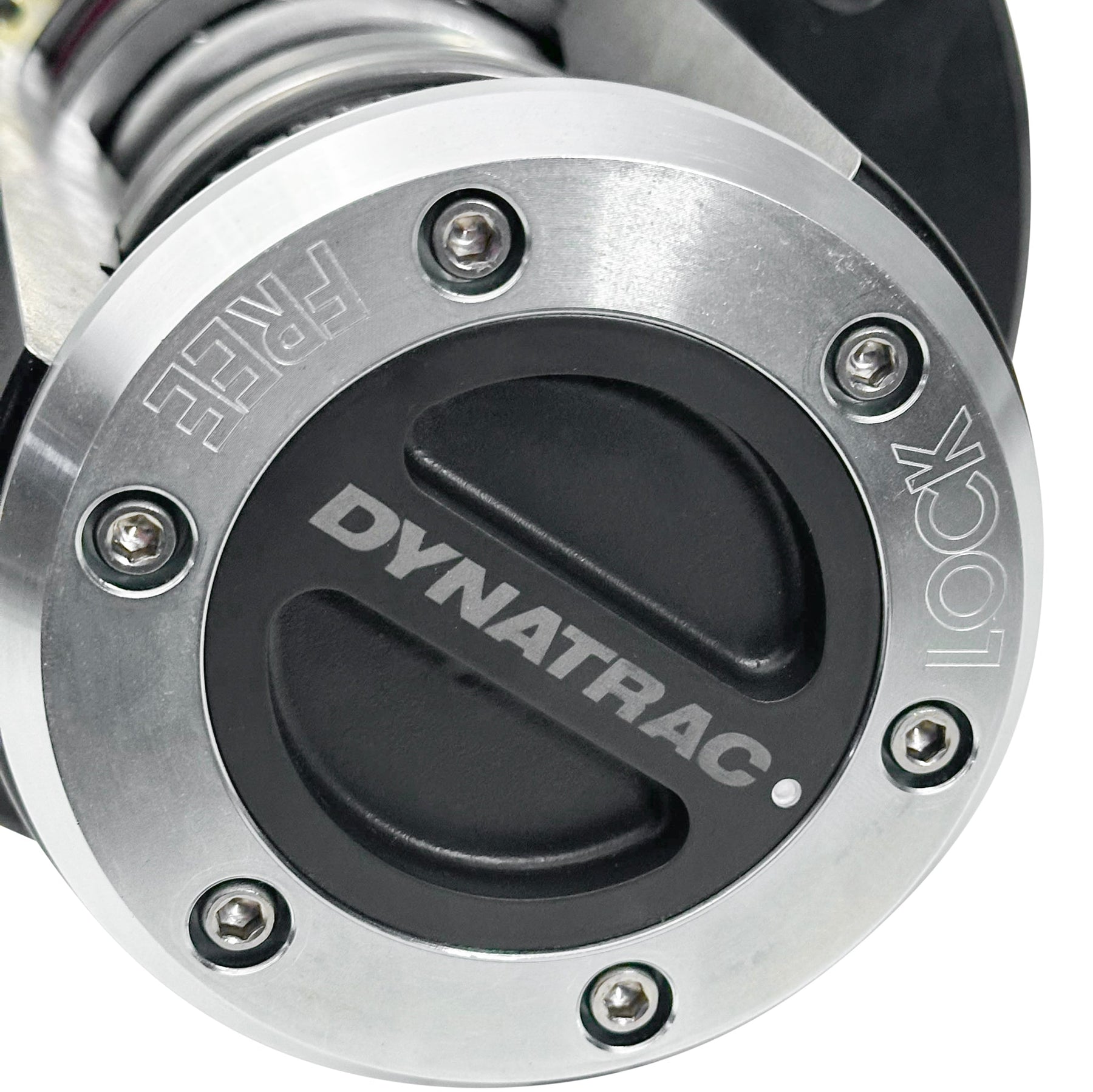

DynaLoc locking hubs
This kit uses Dynatrac's own DynaLoc manual locking hubs in place of the Warn Premium hub. Dynatrac says DynaLoc offers improved locking function, more strength, and a shorter profile, and that its short, custom-machined bezel gives the shortest hub stickout in the Free-Spin line, so the hub sits further inside the wheel and tire package and is less likely to be hit on the trail. Like any manual hub, you set it to lock for four-wheel drive and to free for the street. If you would rather run the Warn Premium hub, the Warn version of this kit is a separate listing in our catalog.
Fitment for 2010-2011 Dodge Ram 2500 and 3500
This kit is listed for 2010-2011 Dodge Ram 2500 and 3500 4x4 trucks, a two-year window that has its own part number, so confirm your model year before you order. Dual rear wheel trucks need Arrowcraft dually wheel adapter AA4DDT (248-280-0210), which is made to work with Dynatrac's Free-Spin kit. Dynatrac's listing does not spell out ABS details for this kit, so if your truck is ABS-equipped and you want that confirmed before you buy, contact us first.
Service parts are easy to find
Dynatrac says every Free-Spin kit uses K30 bearings and seals, so replacements come from ordinary bearing suppliers. The common wear items are the Timken 387A inner bearing with 382A race, the Timken LM104949 outer bearing with LM104911 race, and the Timken 475960 hub seal. The spindle hardware is a Spicer 33732 six-point nut and 33733 washer, and the axle-end parts are the Spicer 700014 spindle needle bearing, 44506 thrust washer and seal combo, and 50381 boot seal.
Before you order
- Confirm the truck is a 2010-2011 Dodge Ram 2500 or 3500 4x4 and that your model year falls inside that range.
- While the knuckles are apart, it is a sensible time to replace the axle u-joints and ball joints, so order those with the kit if they are due.
- Dynatrac backs the kit with a one-year, unlimited-mileage written warranty.
- If anything about your truck's year, axle, or wheels is unclear, contact Skinny Pedal Racing with your model year and cab and chassis type before ordering.
