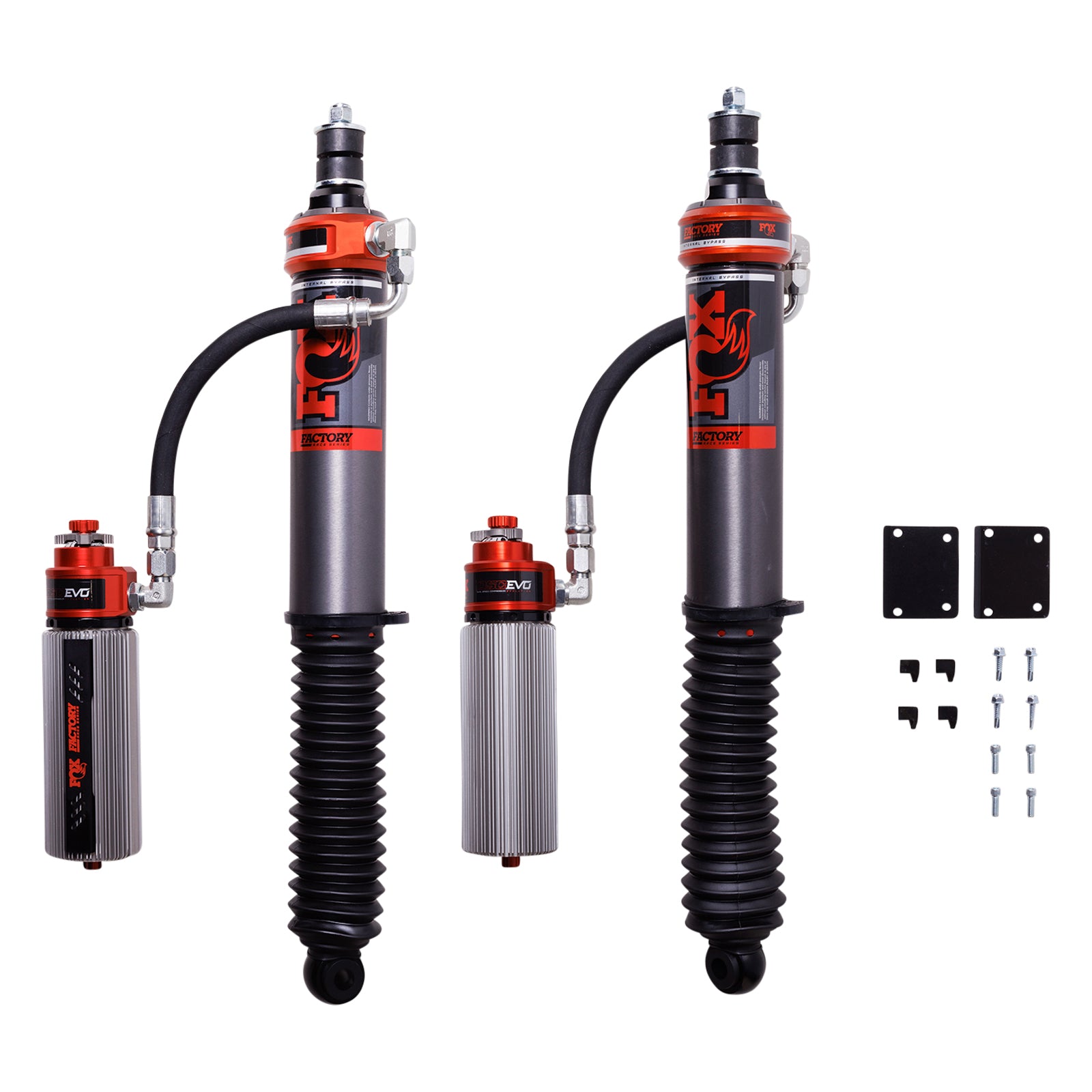

FOX 3.2 Factory Race Series Rear Shock 2025+ Toyota 4Runner DSC 883-26-169 – FOX part number 883-26-169.
This FOX 3.2 Factory Race Series rear internal bypass remote reservoir shock is made for the 2025+ Toyota 4Runner. Specs: 9.39 in of travel, 16.28 in collapsed, 25.67 in extended.
2 Internal Bypass shocks for the Lc250, gx550, and 4Runner chassis deliver velocity and position-sensitive damping technology, Dual Speed Compression Evolution (dsc evo) adjustment, and high-speed ready performance in a bolt-on kit.
Features and Benefits:
- 3.2 Inch impact-extruded and CNC-machined 6061-T6 Type II anodized aluminum body
- Position- and velocity-sensitive damping maximize control through any terrain.

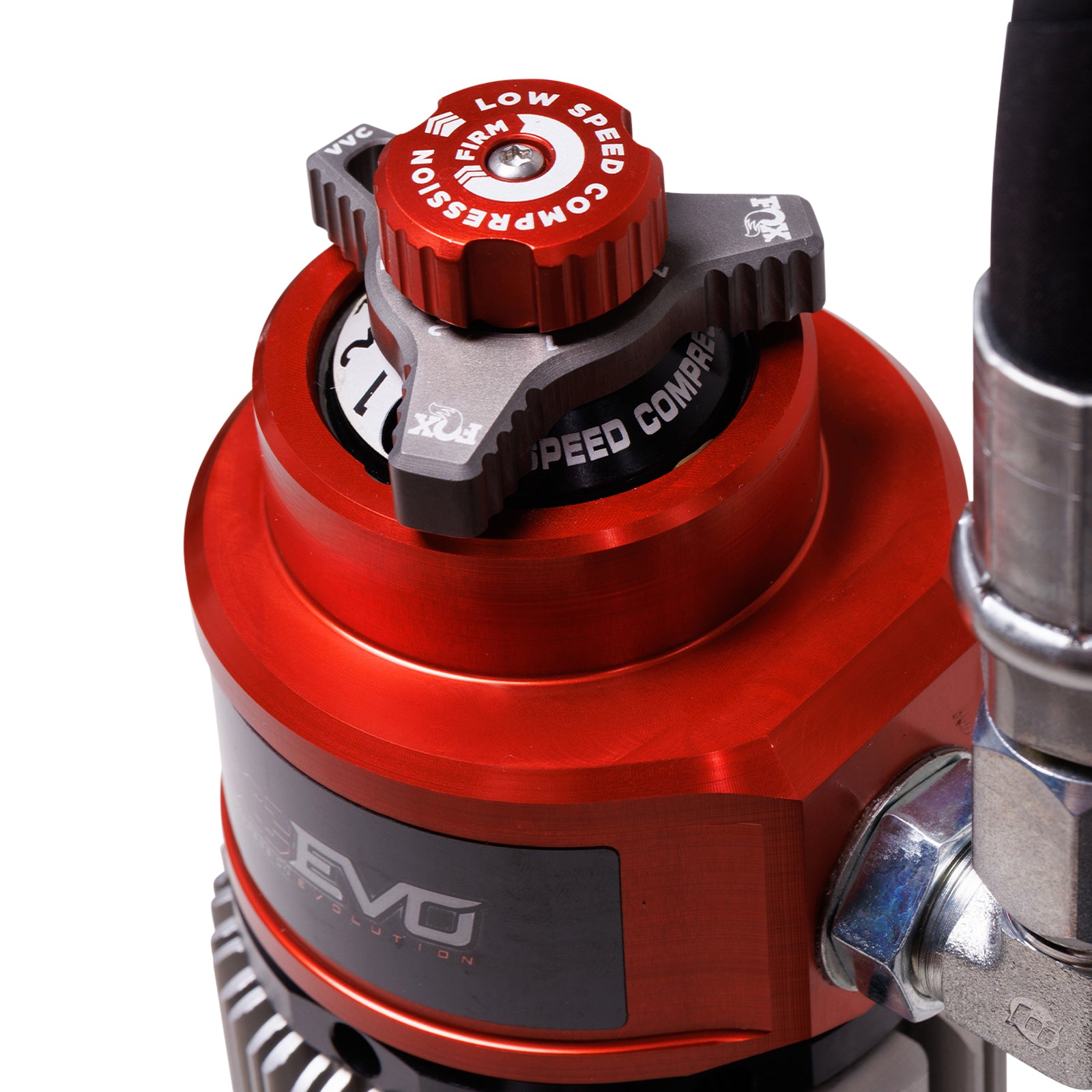

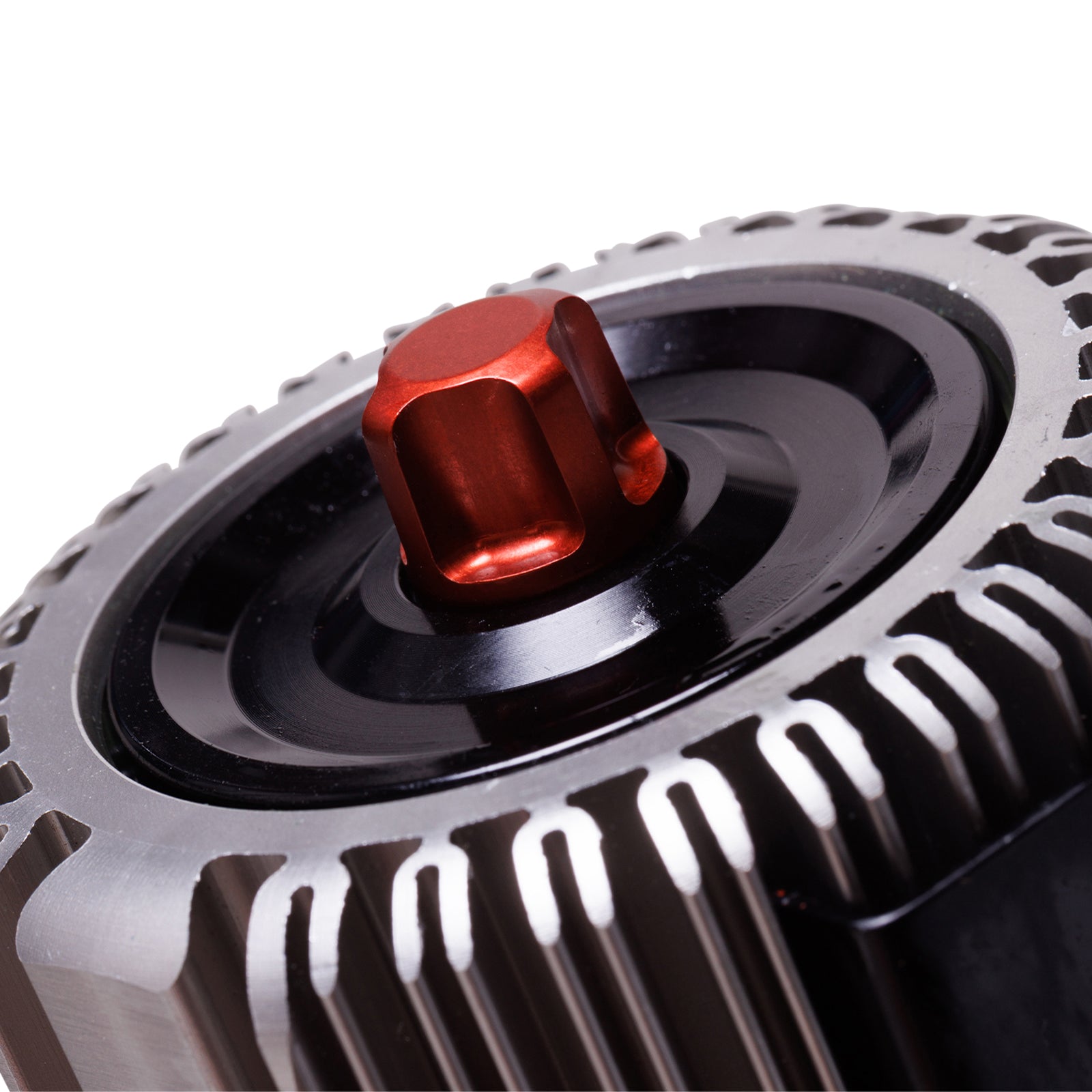

- Patented, internal bypass design Finned remote reservoir with DSC evo adjuster
- Application-specific springs and vehicle-specific tuning maximizes performance.
- 7/8 Inch hard chromed steel shafts
Details:
- Diameter: 3.2 Inch
- Location: Rear
- Series: Factory Race
- Top: Stem
- Travel Length: 9.39 Inch
- Bottom: Eyelet
- Extended Length: 25.67 Inch
- Collapsed Length: 16.28 Inch
- Reservoir Type: Remote
- Shock Type: Smooth Body Internal Bypass
- Material: Aluminum
- Warranty: 1 Year
- Sold As: Kit
Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.
Product information
- FOX part number: 883-26-169
- Warranty: 1 Year
- Country of origin: USA
- Package size: 40.7 x 19.2 x 10.5 in
- Shipping weight: 57 lb
