FOX 3.2 Factory Race Series Front Shock 2024+ Ford F150 Supercrew 883-06-257 – FOX part number 883-06-257.

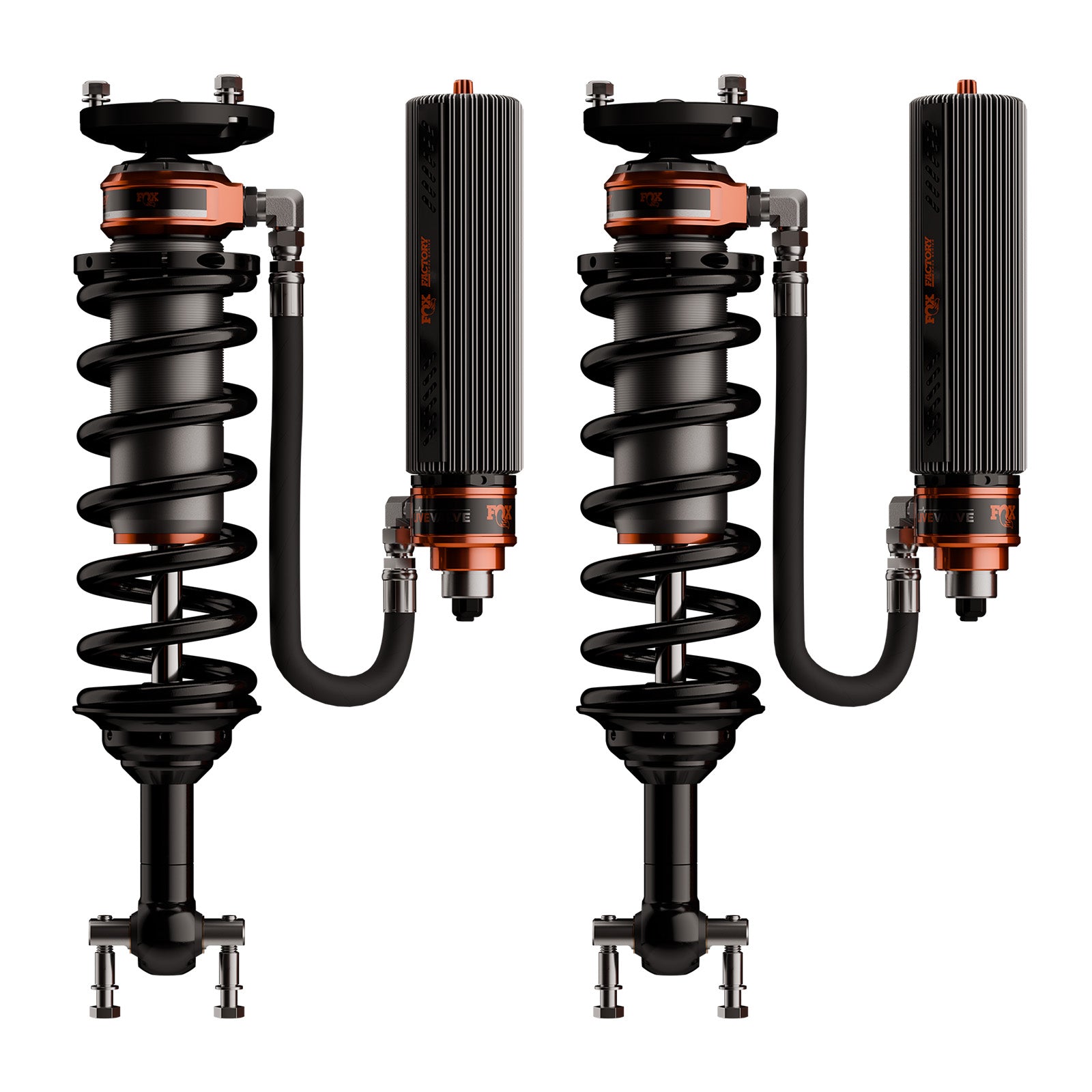

This FOX 3.2 Factory Race Series front coilover/smooth body remote reservoir shock is made for the 2024+ Ford F150 Supercrew. Intended lift height: 2-2.5 in. Specs: 5.45 (F)/11.06 (R) in of travel, 17.15 in (F)/17.57 in (R) collapsed, 23.45 in (F)/28.63 in (R) extended. Live Valve electronic damping version.
America's best-selling full-size pickup is equally at home cruising on the interstate or slashing dunes, and with the addition of Live Valve suspension, it's even more versatile.
Features and Benefits:
- Performance Tuned For Vehicle Specific Application
- Durable Zinc Plated Seamless Alloy Body
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
Details:
- Lift Height: 2-2.5 Inch Lift
- Diameter: 3.2 Inch
- Location: Front
- Series: Factory Race
- Top: OEM(F)/Eyelet(R)
- Travel Length: 5.45 Inch (F)/11.06 Inch (R)
- Bottom: Bar Pin(F)/Eyelet(R)
- Extended Length: 23.45 Inch (F)/28.63 Inch (R)
- Collapsed Length: 17.15 Inch (F)/17.57 Inch (R)
- Reservoir Type: Remote
- Shock Type: Coil-Over(F)/Smooth Body(R)
- Material: Aluminum
- Warranty: 1 Year
- Sold As: Kit
Dsc evo features Variable Valve Control (vvc) on the high-speed circuit. Unlike most compression adjusters that rely on adding preload, Vvc adjusts leverage to isolate high-speed from low-speed damping precisely.
The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
Product information
- FOX part number: 883-06-257
- Warranty: 1 Year
- Country of origin: USA
- Package size: 48 x 40 x 26 in
- Shipping weight: 205 lb
