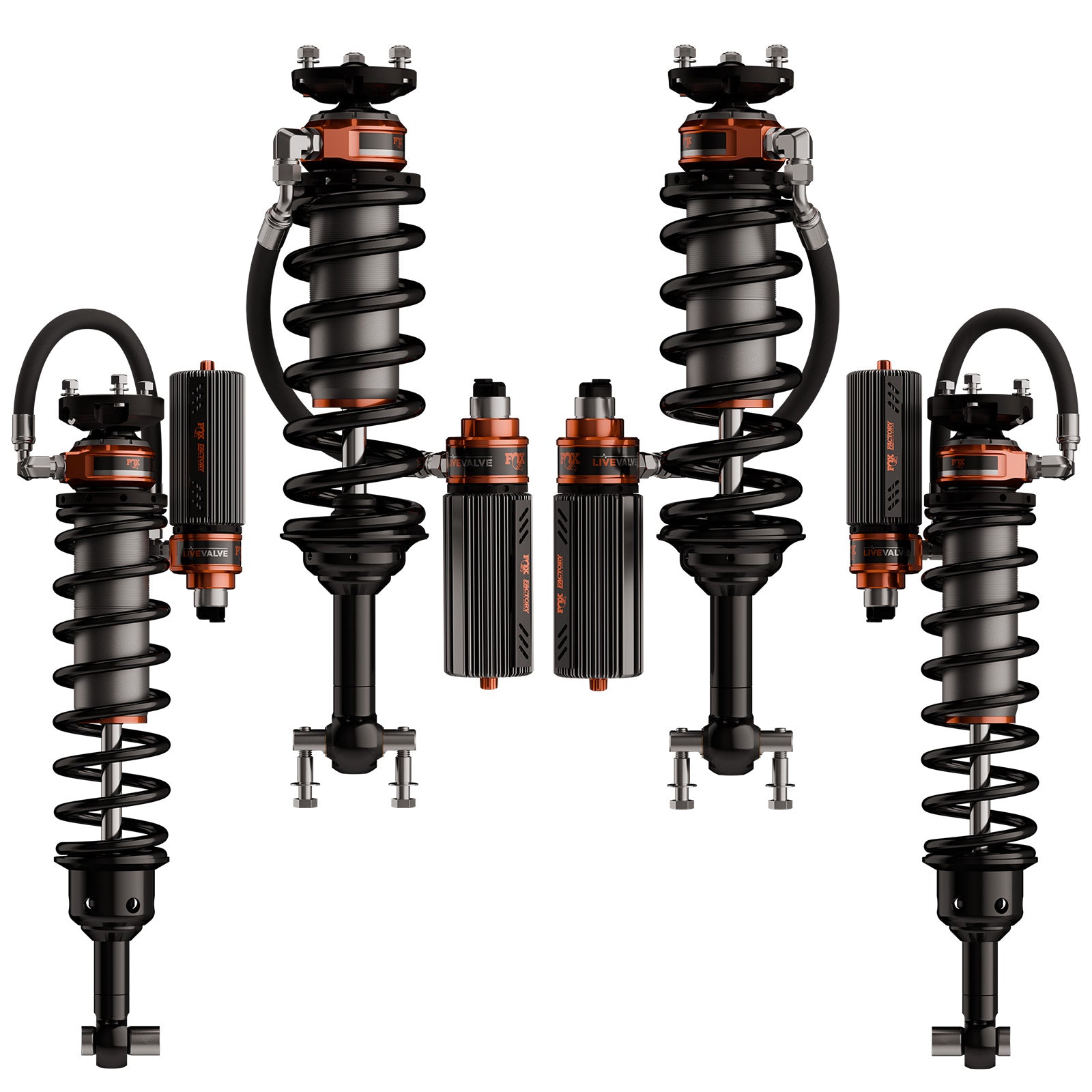

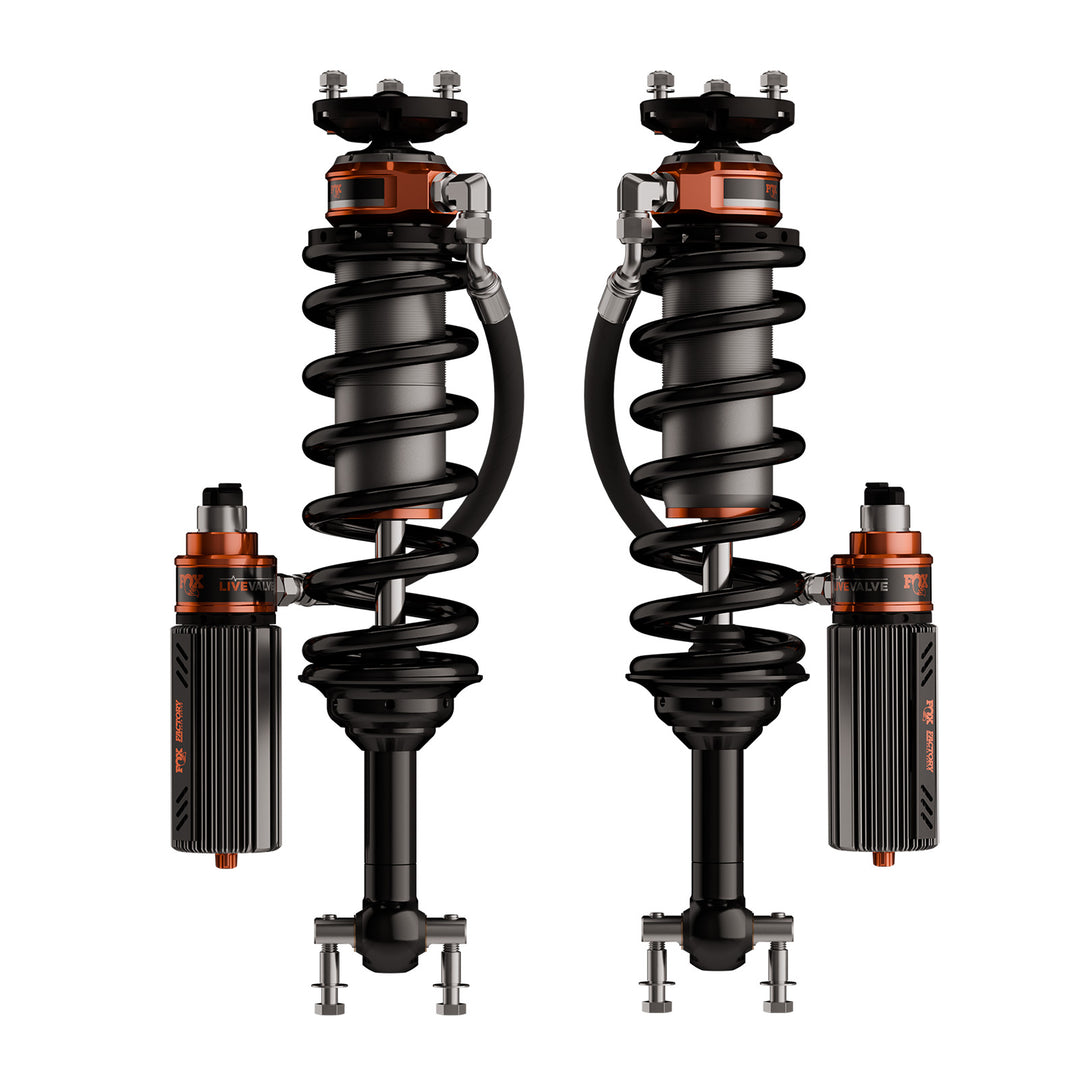

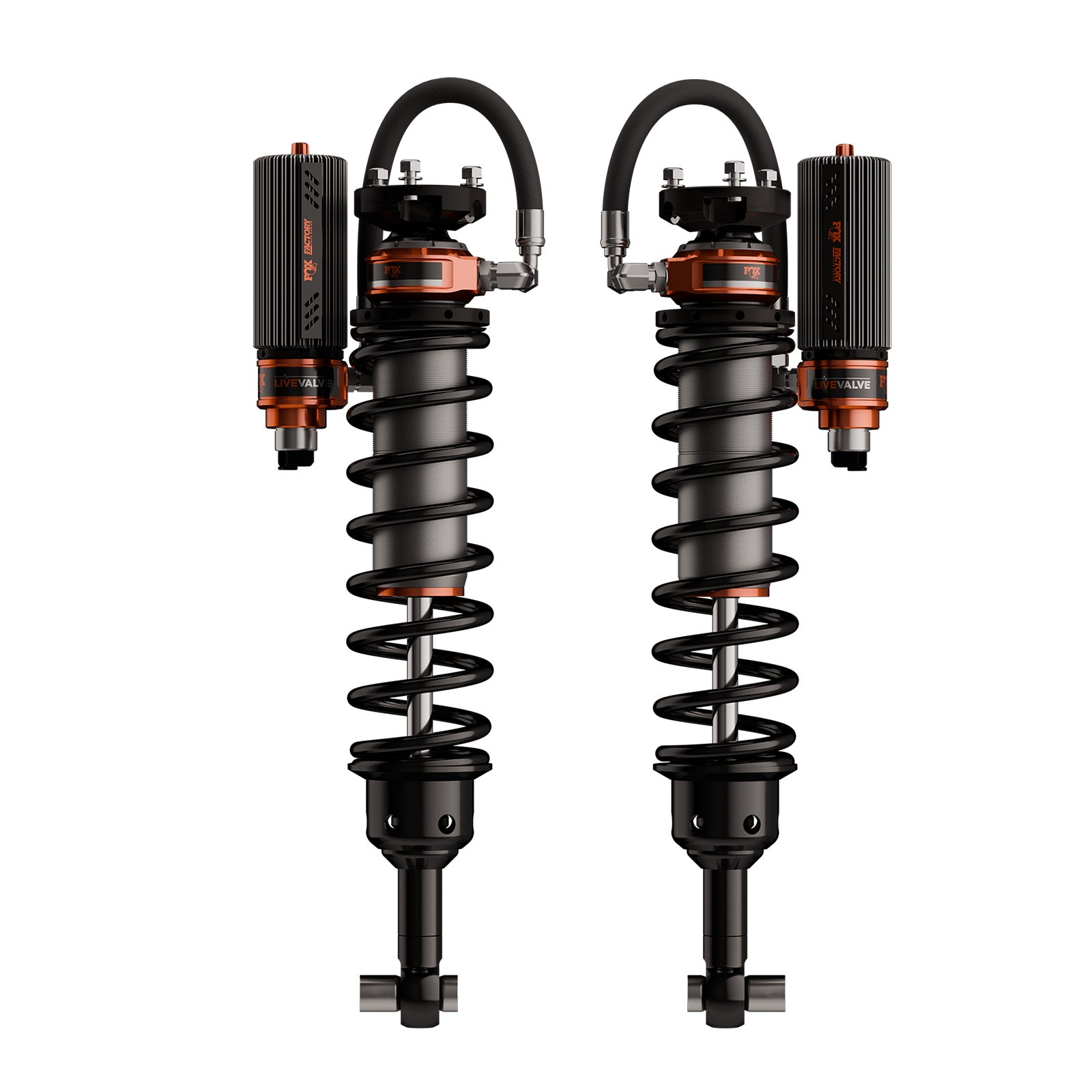

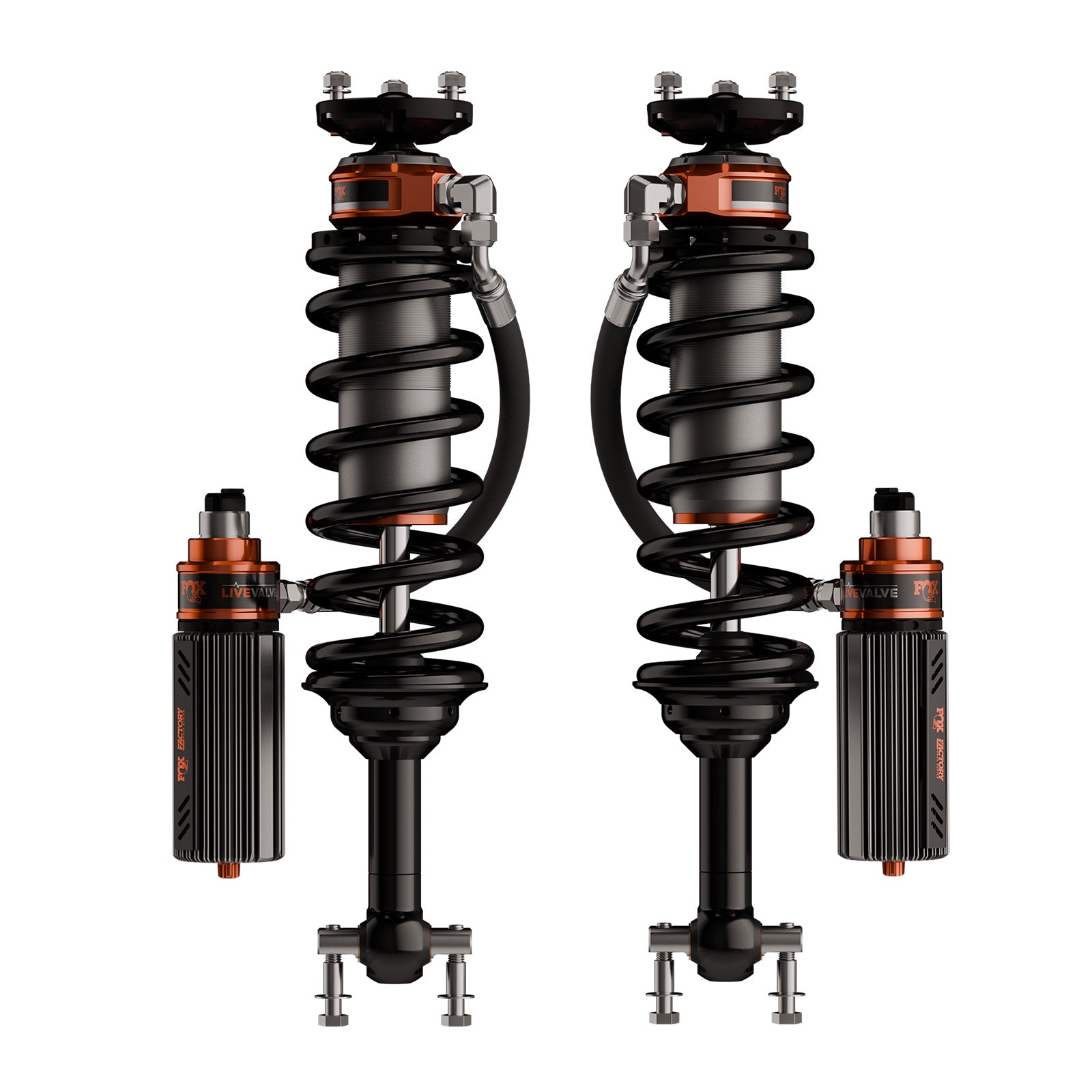

FOX 3.2 Factory Race Series Coilover Shock 2021+ Ford Bronco Live Valve 883-06-249 – FOX part number 883-06-249.
This FOX 3.2 Factory Race Series coilover remote reservoir shock is made for the 2021+ Ford Bronco. Specs: 5.42 (F)/7.97 (R) in of travel, 17.95 in (F)/18.45 in (R) collapsed, 24.22 in (F)/27.22 in (R) extended. Live Valve electronic damping version.
Live Valve senses speed and pitch to lock in support on-road, then frees up compliance for ledges, sand, and washouts. That means less dive, less roll, and more tire contact for your Bronco.
Features and Benefits:
- Performance Tuned For Vehicle Specific Application
- Durable Zinc Plated Seamless Alloy Body
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
Details:
- Diameter: 3.2 Inch
- Series: Factory Race
- Top: OEM
- Travel Length: 5.42 Inch (F)/7.97 Inch (R)
- Bottom: Bar Pin(F)/Eyelet(R)
- Extended Length: 24.22 Inch (F)/27.22 Inch (R)
- Collapsed Length: 17.95 Inch (F)/18.45 Inch (R)
- Reservoir Type: Remote
- Shock Type: Coil-Over
- Material: Aluminum
- Warranty: 1 Year
- Sold As: Kit
Dsc evo features Variable Valve Control (vvc) on the high-speed circuit. Unlike most compression adjusters that rely on adding preload, Vvc adjusts leverage to isolate high-speed from low-speed damping precisely.
The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity.
Product information
- FOX part number: 883-06-249
- Warranty: 1 Year
- Country of origin: USA
- Package size: 48 x 40 x 26 in
- Shipping weight: 210 lb
