FOX 3.0 Factory Race Series Rear Shock 2010-2014 Ford Raptor 0-1" Lift 883-09-241 – FOX part number 883-09-241.

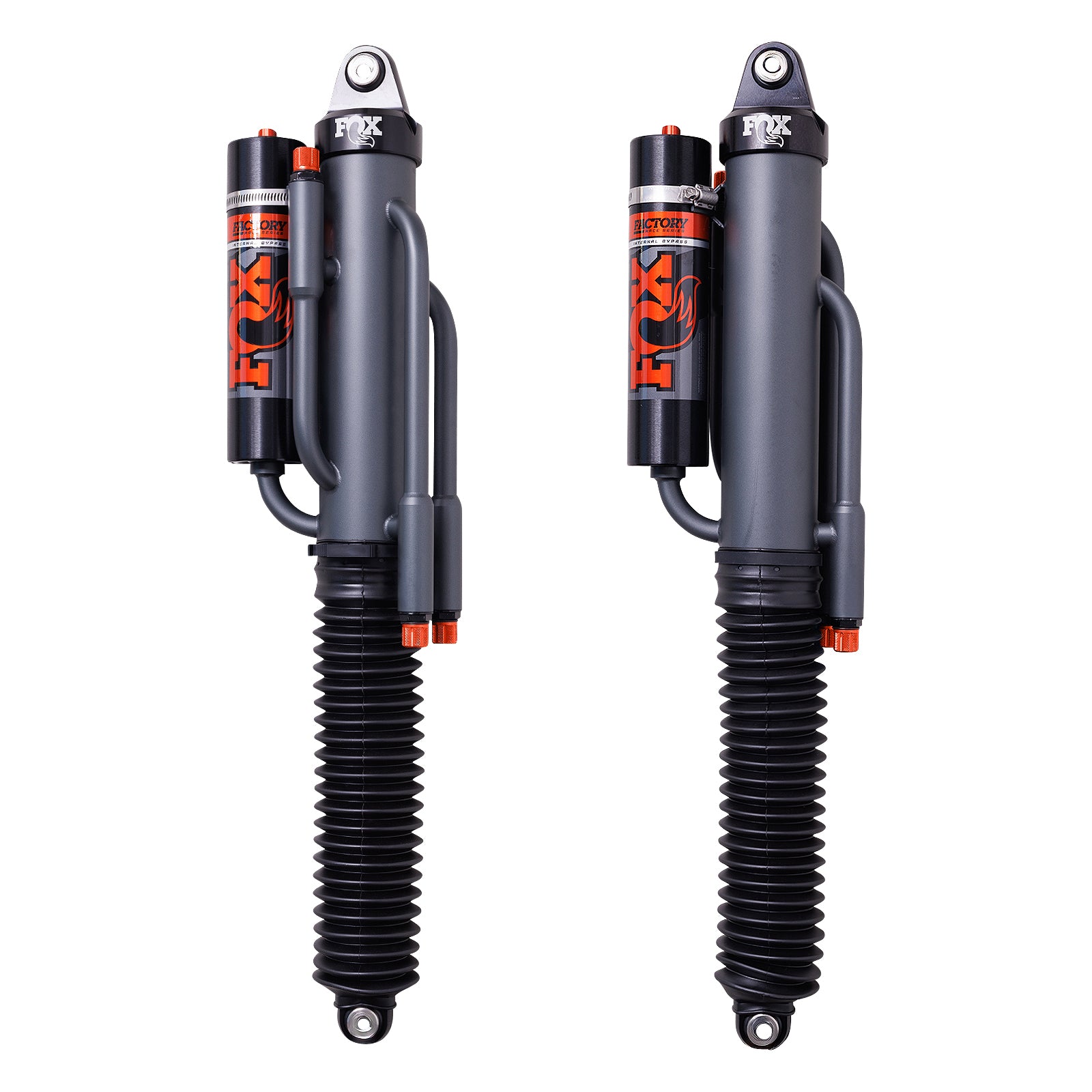

This FOX 3.0 Factory Race Series rear external bypass remote reservoir shock is made for the 2010-2014 Ford Raptor. Intended lift height: 0-1 in. Specs: 11.42 in of travel, 17.93 in collapsed, 29.35 in extended.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Features and Benefits:
- Performance Tuned For Vehicle Specific Application
- Durable Zinc Plated Seamless Alloy Body
- Quick Adjust Bypass Knobs For Easy Adjustments
- External Reservoir System Dissipates Heat Fast
Details:
- Lift Height: 0-1 Inch Lift
- Diameter: 3.0 Inch
- Location: Rear
- Series: Factory Race
- Top: Eyelet
- Travel Length: 11.42 Inch
- Bottom: Eyelet
- Extended Length: 29.35 Inch
- Collapsed Length: 17.93 Inch
- Reservoir Type: Remote
- Shock Type: External Bypass
- Material: Steel
- Warranty: 1 Year
- Sold As: Kit
Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.
Product information
- FOX part number: 883-09-241
- Warranty: 1 Year
- Country of origin: USA
- Package size: 31.5 x 17.5 x 8.5 in
- Shipping weight: 90 lb
