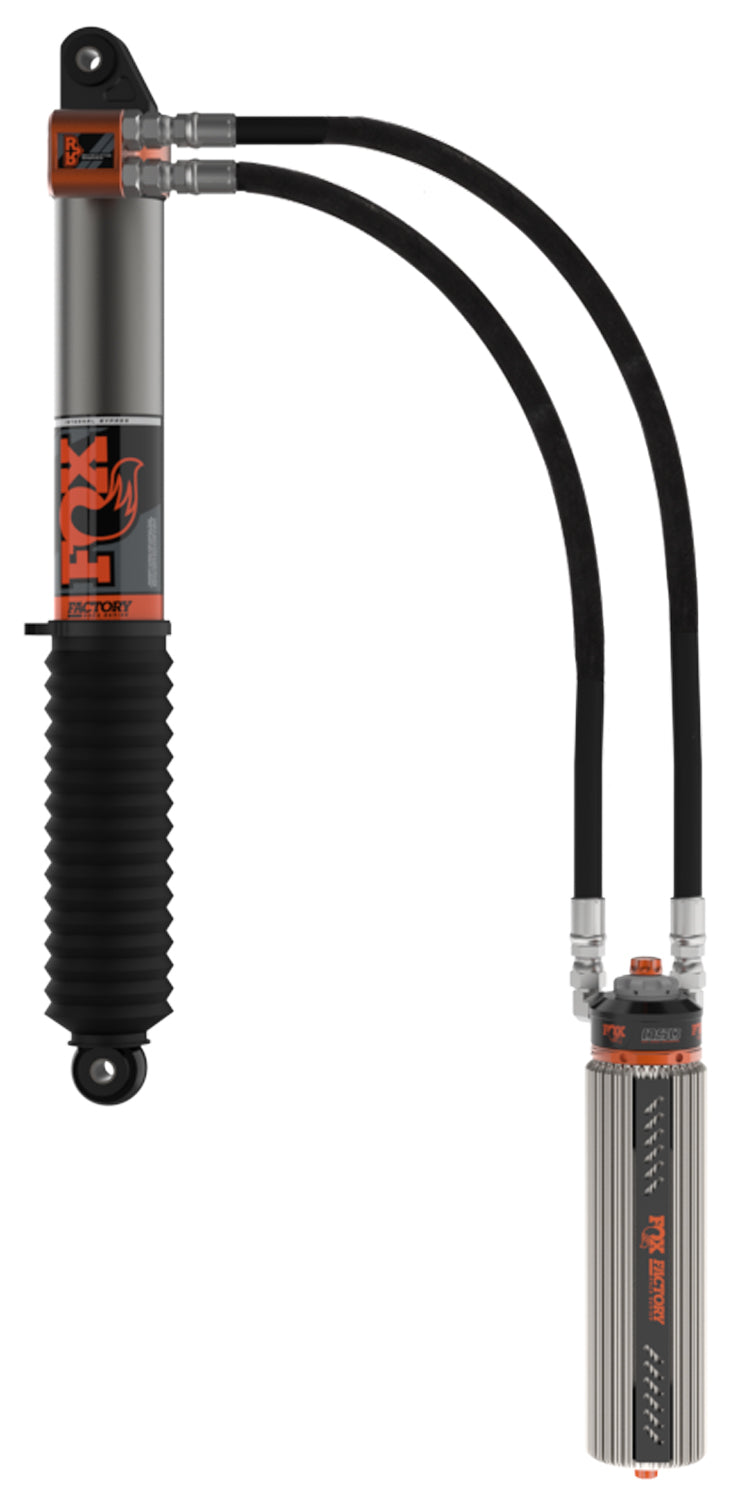

FOX 3.0 Factory Race Series Rear Internal Bypass Shock 2019+ GM 1500 DSC 883-26-105 – FOX part number 883-26-105.
This FOX 3.0 Factory Race Series rear internal bypass Recirculating remote reservoir shock is made for the 2019+ GM 1500. Intended lift height: 2-3 in. Specs: 10.32 in of travel, 17.16 in collapsed, 27.73 in extended.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your Jeep.
Features and Benefits:
- Performance Tuned For Vehicle Specific Application
- Aluminum Body Dissipates Heat Faster Than Steel
- Multiple Internal Damping Zones
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
Details:
- Lift Height: 2-3 Inch Lift
- Diameter: 3.0 Inch
- Location: Rear
- Series: Factory Race
- Top: Eyelet
- Travel Length: 10.32 Inch
- Bottom: Eyelet
- Extended Length: 27.73 Inch
- Collapsed Length: 17.16 Inch
- Reservoir Type: Recirculating Remote
- Shock Type: Smooth Body Internal Bypass
- Material: Aluminum
- Warranty: 1 Year
- Sold As: Kit
Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.
Product information
- FOX part number: 883-26-105
- Warranty: 1 Year
- Country of origin: USA
- Package size: 39.25 x 20.375 x 11.25 in
- Shipping weight: 54 lb
