FOX 3.0 Factory Race Series Front Shock 2019+ GM 1500 3" Lift DSC 883-06-175 – FOX part number 883-06-175.

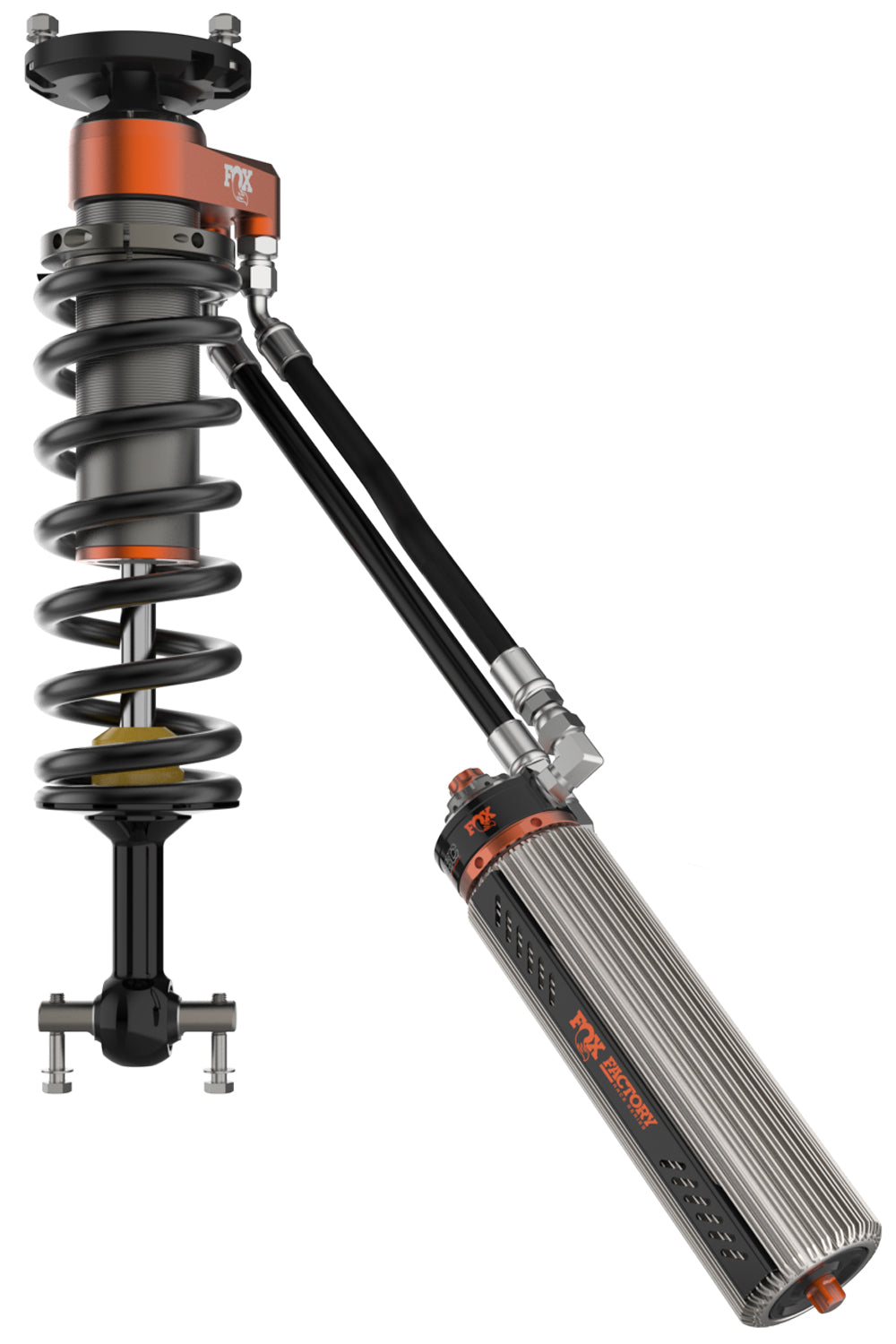

This FOX 3.0 Factory Race Series front internal bypass coilover Recirculating remote reservoir shock is made for the 2019+ GM 1500. Intended lift height: 3 in. Specs: 5.34 in of travel, 17.15 in collapsed, 22.74 in extended.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Features and Benefits:
- Finned External Reservoir System Dissipates Heat Fast
- Quick Switch Compression And Rebound Adjusters
- Black Anodized CNC Machined Aluminum Components
Details:
- Lift Height: 3 Inch Lift
- Diameter: 3.0 Inch
- Location: Front
- Series: Factory Race
- Top: OEM
- Travel Length: 5.34 Inch
- Bottom: Bar Pin
- Extended Length: 22.74 Inch
- Collapsed Length: 17.15 Inch
- Reservoir Type: Recirculating Remote
- Shock Type: Coil-Over Internal Bypass
- Material: Aluminum
- Warranty: 1 Year
- Sold As: Kit
Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.
Product information
- FOX part number: 883-06-175
- Warranty: 1 Year
- Country of origin: USA
- Package size: 39.25 x 20.375 x 11.25 in
- Shipping weight: 89 lb
