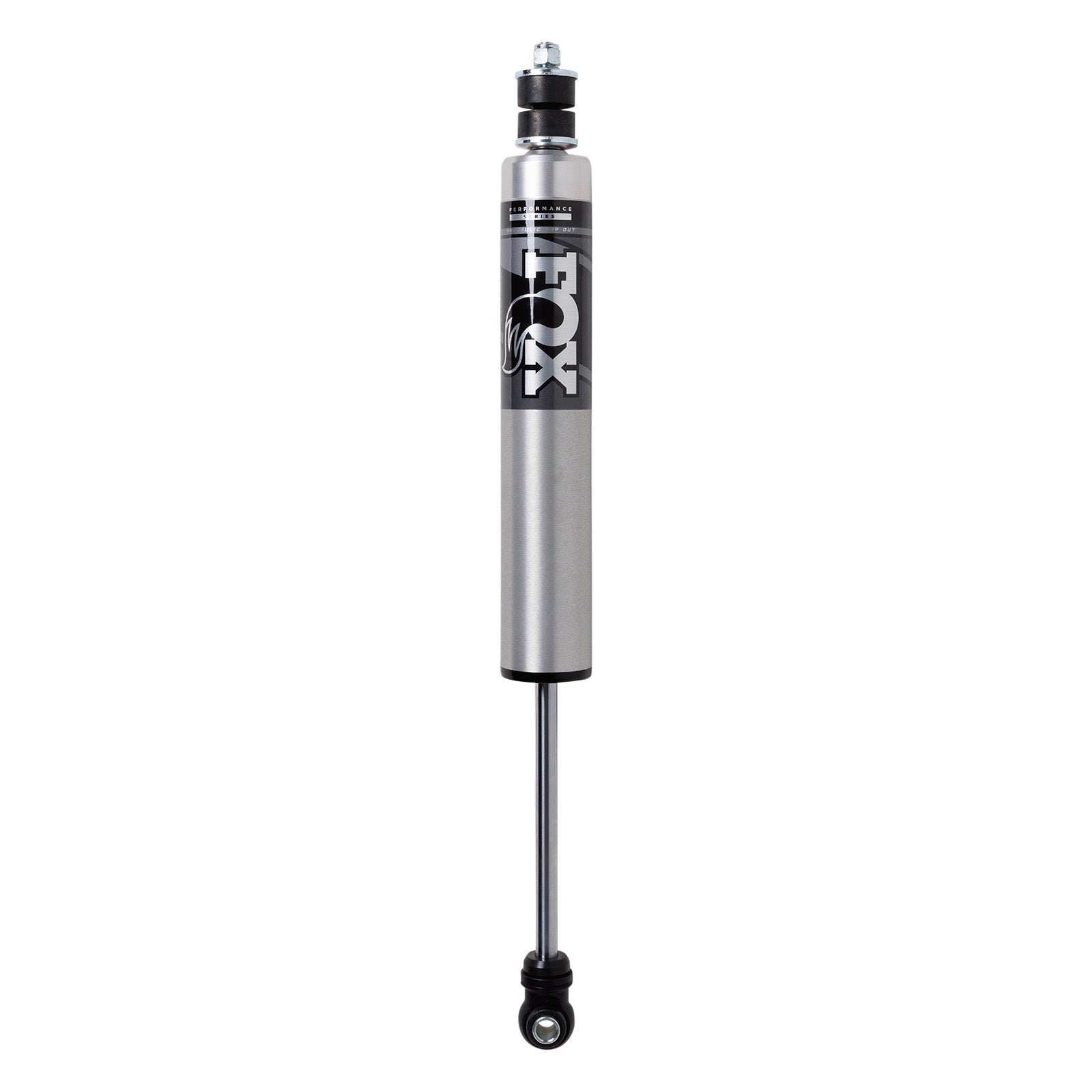

FOX 2.5 Performance Series Rear IFP Shock 2014+ Ram 3500 HTO 987-24-050 – FOX part number 987-24-050.
This FOX 2.5 Performance Series rear IFP shock is made for the 2014+ Ram 3500. Specs: 11.36 in of travel, 19 in collapsed, 30.36 in extended.
5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology vehicle-specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion.
5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than Oem specification. 5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Features and Benefits:
- 2.5 Inch Impact extruded 6061-T6 aluminum shock body
- Type II clear-anodized body plating
- High-flow velocity-sensitive damping
- 5/8 Inch hard chrome shaft
- Internal floating piston (IFP)
Details:
- Diameter: 2.5 Inch
- Location: Rear
- Series: Performance
- Top: Stem
- Travel Length: 11.36 Inch
- Bottom: Eyelet
- Extended Length: 30.36 Inch
- Collapsed Length: 19 Inch
- Reservoir Type: Internal Floating Piston
- Shock Type: Smooth Body
- Gas Charged: Yes
- Material: Aluminum
- Warranty: Lifetime
Increase your vehicle's off-road capability by extending drop-out travel in most applications. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway.
Product information
- FOX part number: 987-24-050
- Warranty: Lifetime
- Country of origin: USA
- Package size: 26 x 3 x 3 in
- Shipping weight: 7 lb
