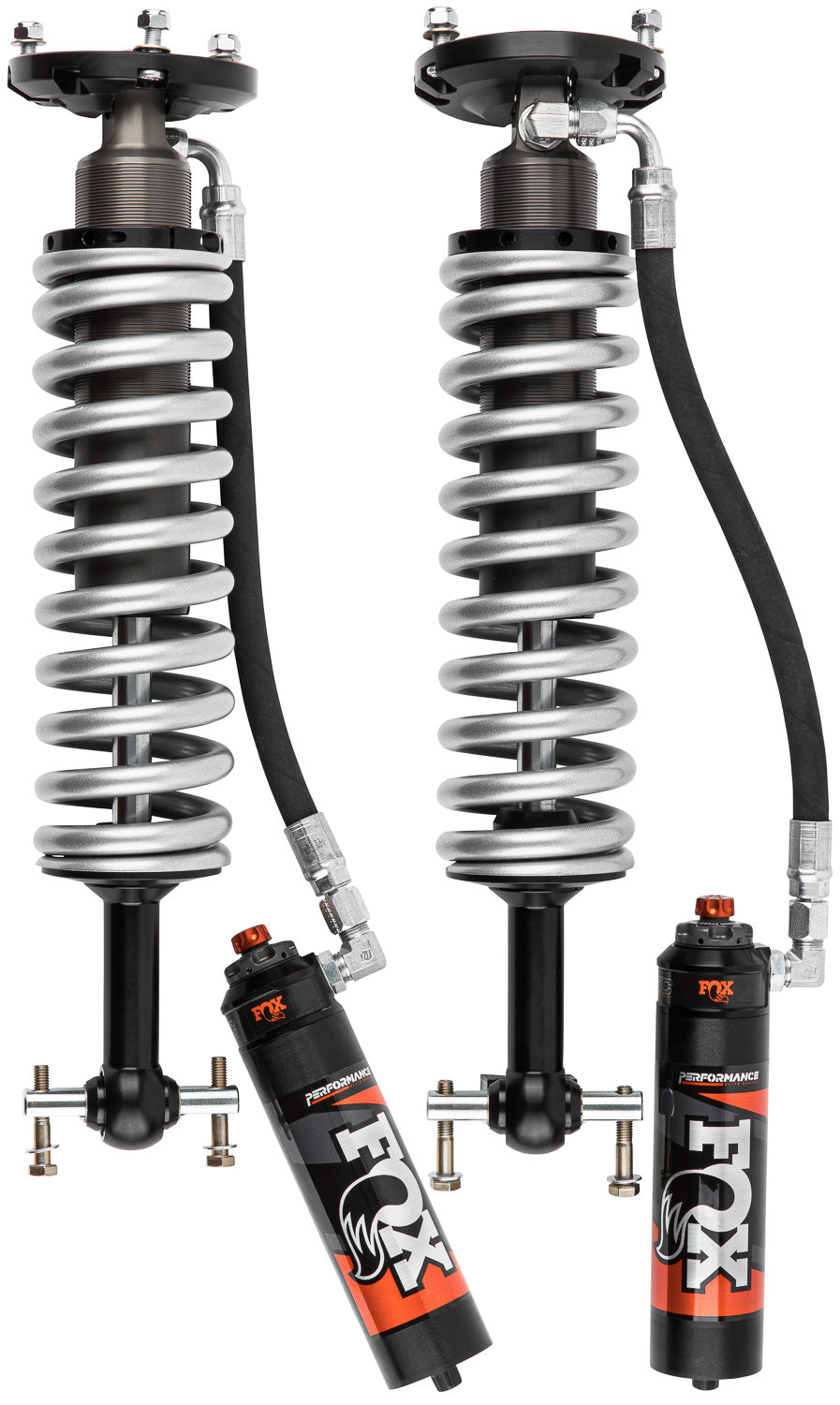

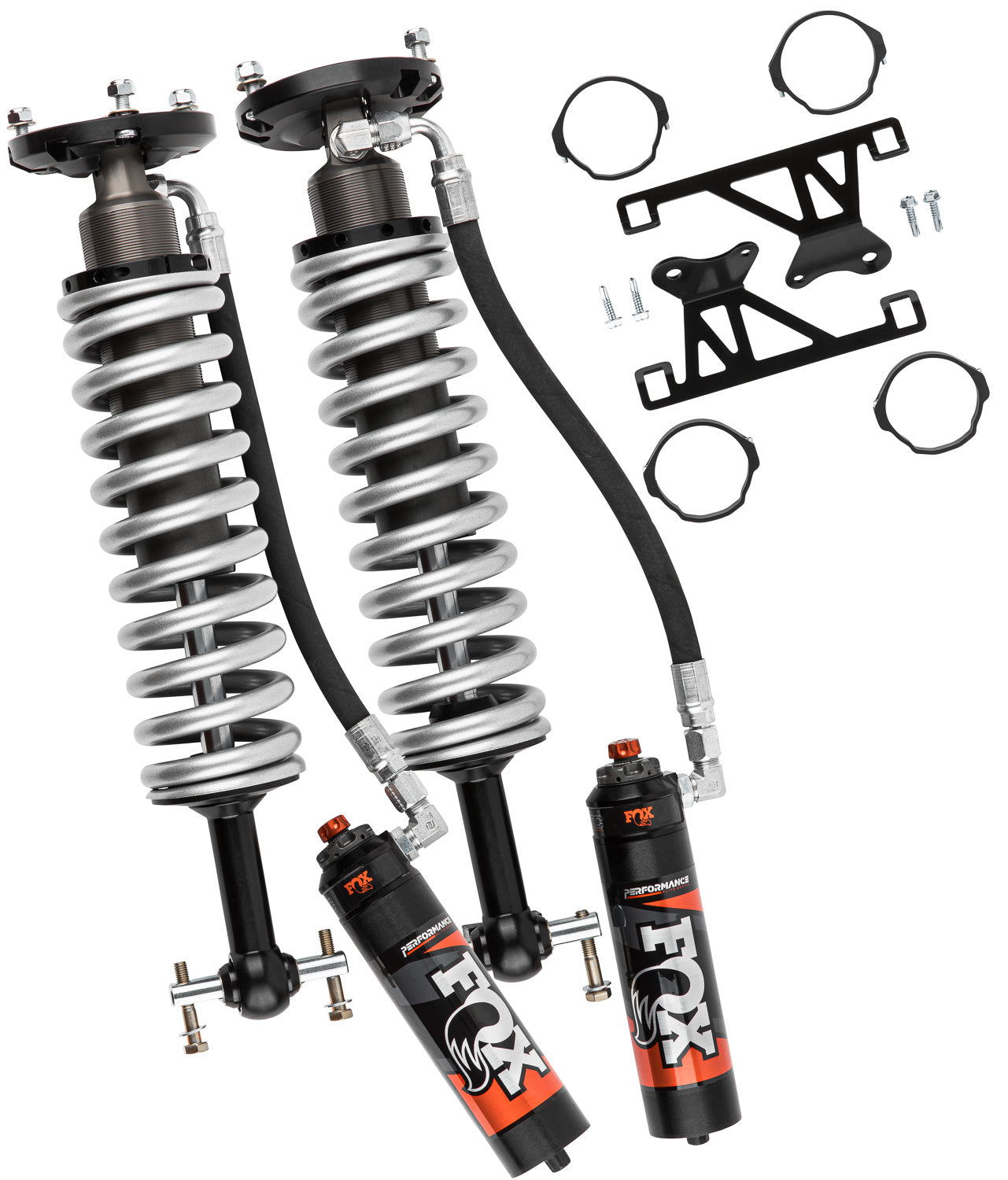

FOX 2.5 Performance Elite Series Front Shock 2007-2018 GM 1500 with UCA 883-06-164 – FOX part number 883-06-164.
This FOX 2.5 Performance Elite Series front coilover remote reservoir shock is made for the 2007-2018 GM 1500 with UCA. Specs: 4.03 in of travel, 15.94 in collapsed, 19.97 in extended.
Developed from our off-road race shocks, FOX Performance Elite Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Features and Benefits:
- Performance Tuned For Vehicle Specific Application
- Aluminum Body Dissipates Heat Faster Than Steel
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
Details:
- Diameter: 2.5 Inch
- Location: Front
- Series: Performance Elite
- Top: OEM
- Travel Length: 4.03 Inch
- Bottom: Bar Pin
- Extended Length: 19.97 Inch
- Collapsed Length: 15.94 Inch
- Reservoir Type: Remote
- Shock Type: Coil-Over
- Material: Aluminum
- Warranty: 1 Year
- Sold As: Kit
*important*: Cast aluminum lower control arm required for '16-18 model year trucks for Cv boot clearance.
Product information
- FOX part number: 883-06-164
- Warranty: 1 Year
- Country of origin: USA
- Package size: 40 x 18.5 x 8.125 in
- Shipping weight: 65.4 lb
