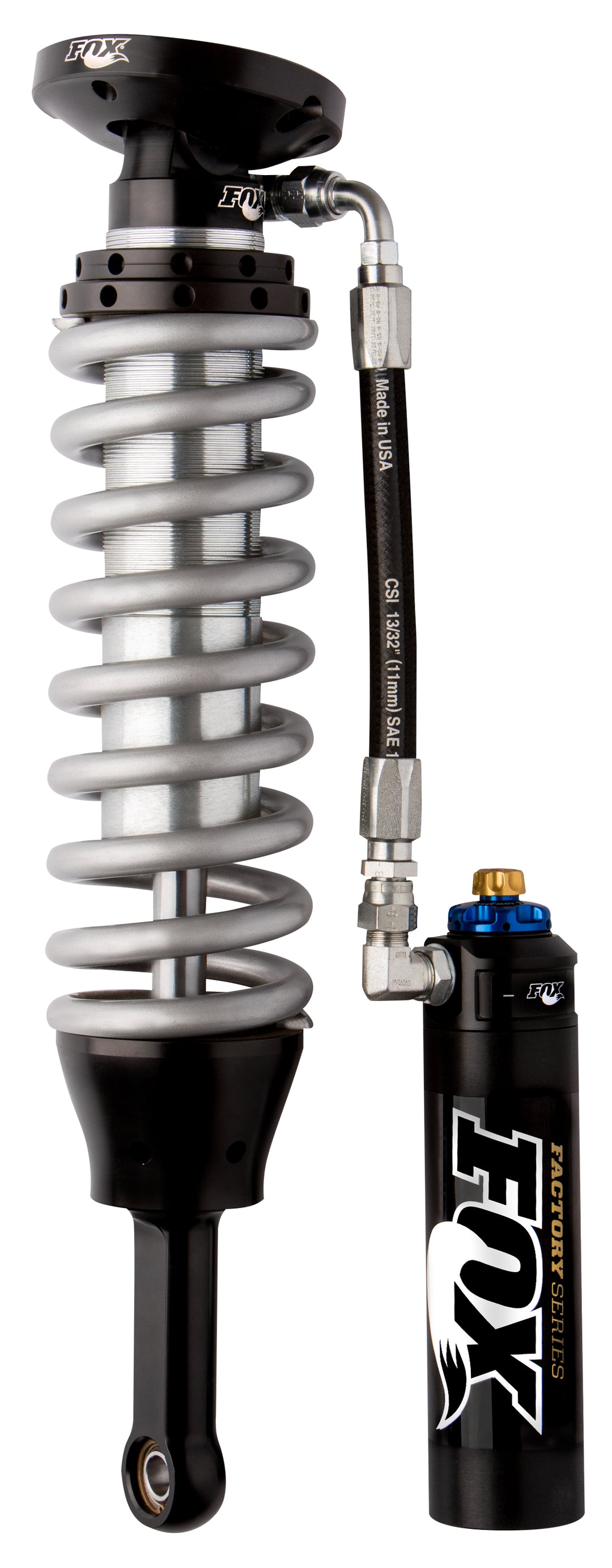

FOX 2.5 Factory Race Series Front Coilover Shock 2012+ Ford T6 Ranger 4WD 883-06-093 – FOX part number 883-06-093.
This FOX 2.5 Factory Race Series front coilover remote reservoir shock is made for the 2012+ Ford T6 Ranger 4WD & 2WD Hi-Rider. Intended lift height: 0-2 in. Specs: 5.1 in of travel, 15.6 in collapsed, 20.7 in extended.
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
Features and Benefits:
- Performance Tuned For Vehicle Specific Application
- Durable Zinc Plated Seamless Alloy Body
- External Reservoir System Dissipates Heat Fast
- Black Anodized CNC Machined Aluminum Components
Details:
- Lift Height: 0-2 Inch Lift
- Diameter: 2.5 Inch
- Location: Front
- Series: Factory Race
- Top: TM
- Travel Length: 5.1 Inch
- Bottom: Eyelet
- Extended Length: 20.7 Inch
- Collapsed Length: 15.6 Inch
- Reservoir Type: Remote
- Shock Type: Coil-Over
- Drive: 4WD & 2WD
- Material: Steel
- Warranty: 1 Year
- Sold As: Kit
Uncompromised performance through FOX's patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke - while creating humongous pressure at other points - supporting the vehicle like no other product can.
Product information
- FOX part number: 883-06-093
- Warranty: 1 Year
- Country of origin: USA
- Package size: 31.5 x 17.5 x 8.5 in
- Shipping weight: 65 lb
