Flange Yoke 1410 Non CV
1410 flange is drilled & tapped for (4) 12mm x 1.25 bolts on a 3.75" diameter and has a 2.75" female index. use spicer companion 3-2-1329
Spicer 3-2-159 can also be used, but would require the holes in the Spicer yokes to be drilled out to fit the 12 MM bolt. Note: 3-2-159 is a longer yoke from face of flange to centerline at 1.938" verse the other yokes that are 1.688.

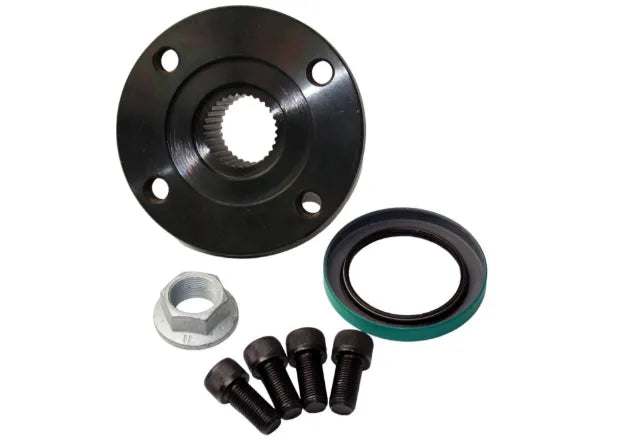

What's Included
- Seal-Atlas Front/Rear Output 32T Yoke (Part# 300473)
- Yoke-Flange 1350/1410. 2.75 Female Index 12 mm And 7/16-20 (Part# 300471S)
- 12mm X 1.25TH X 25mm S.H.C.S. (Part# 720084)
