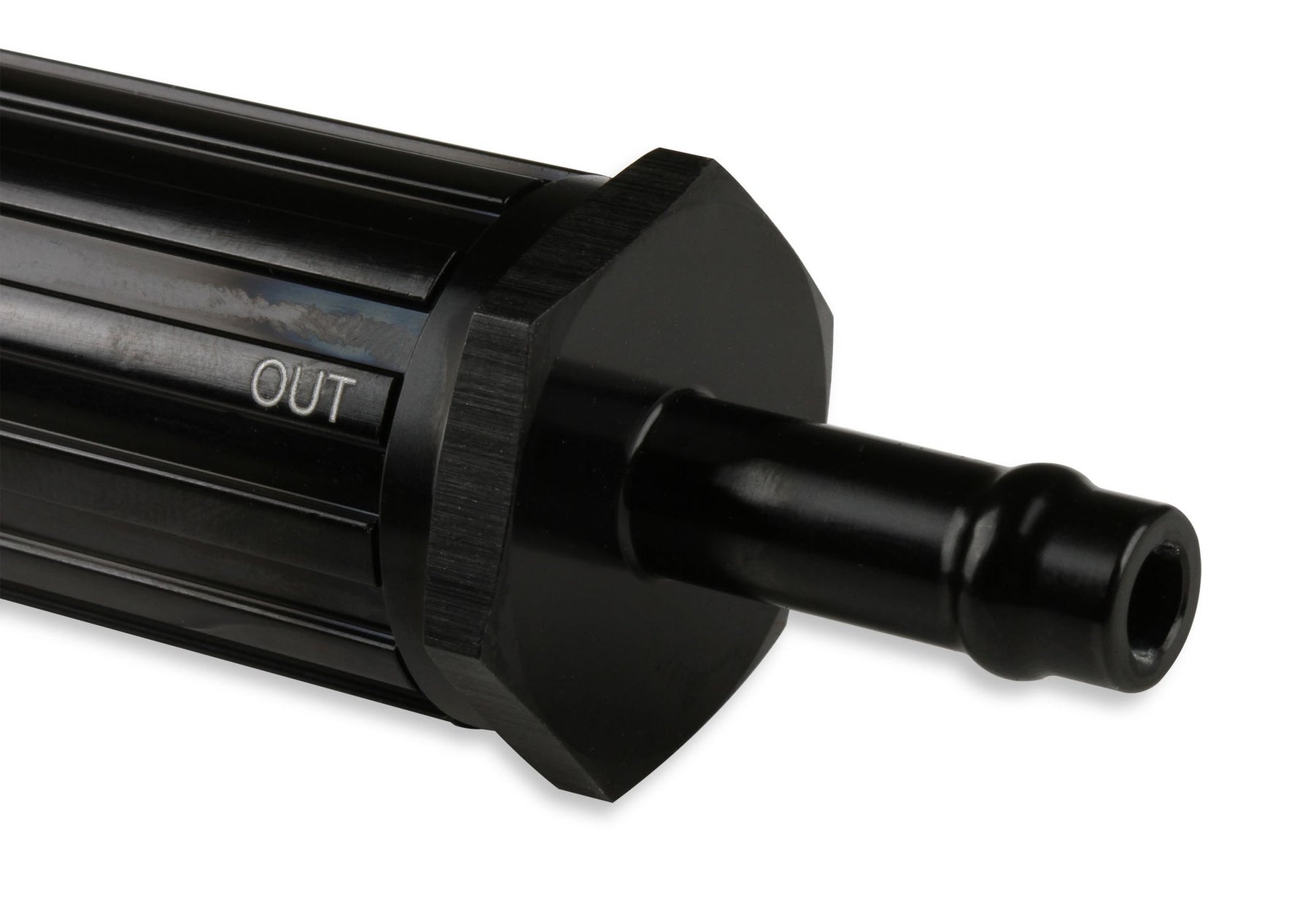

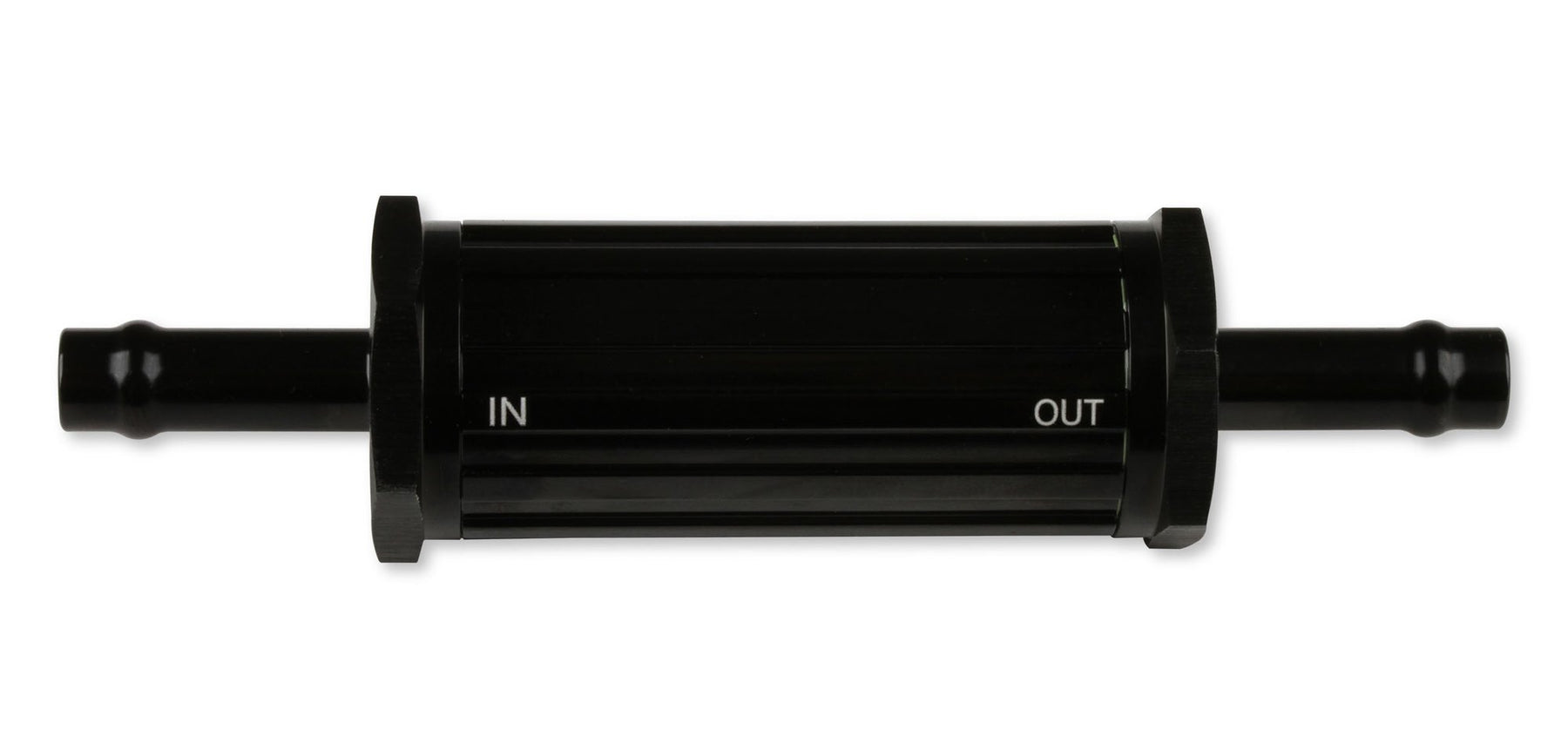

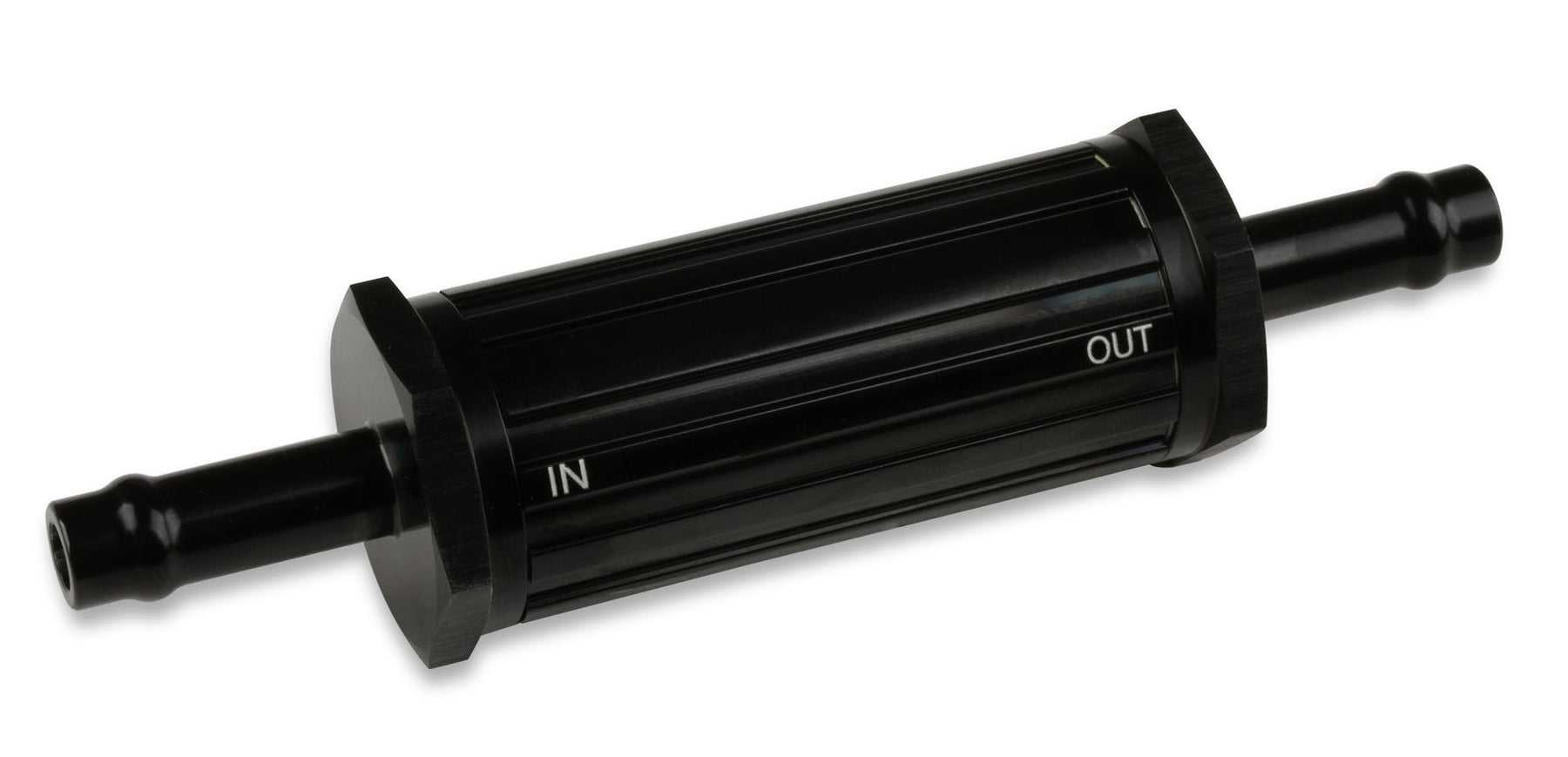

Earl's Vapor Guard™ Fuel Filter

Billet aluminum fuel filter for EFI (10 micron) applications. Use w/ 5/16" Vapor Guard Fuel Hose & Clamps.

• Filter Flows 125 GPH at 4.1 PSI (Free Flow) & 88 GPH at 61.4 PSI

Specifications

• Adjustable: Yes
• Assembly Method: Barb & Band Clamp
• Body Diameter: 1.0"
• Brand: Earl's
• Category: Air and Fuel Delivery
• Color: Black
• Compatible Hose: Vapor Guard
• Diameter: 1.00 inch
• Element Material: Sintered Bronze
• Emission Code: 5
• Filter Type: Post Filter
• Finish: Anodized Black
• Fitting to Hose Mate Type: Barb & Band Clamp
• Fuel System Type: EFI
• Fuel Type: Gasoline / Diesel
• GPH: 88
• Hose Barb: 5/16"
• Hose End Family: Vapor Guard
• Hose End Series: 75/78
• Hose Size: 5/16
• Inlet / Outlet Size: 5/16" Hose Barb
• Inlet Size: 5/16" Barb
• Installed Length: 2.560"
• Material: 6061 Aluminum
• Max PSI: 100
• Micron: 10 Micron
• Outlet Size: 5/16" Barb
• Overall Length: 4.500"
• Part Type: Fuel Filter
• Product Line: Budget
• Product Type: Fuel Filter
• Reusable: Yes
• Sub Category: Filters
• Swivel: No
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 731155ERL
