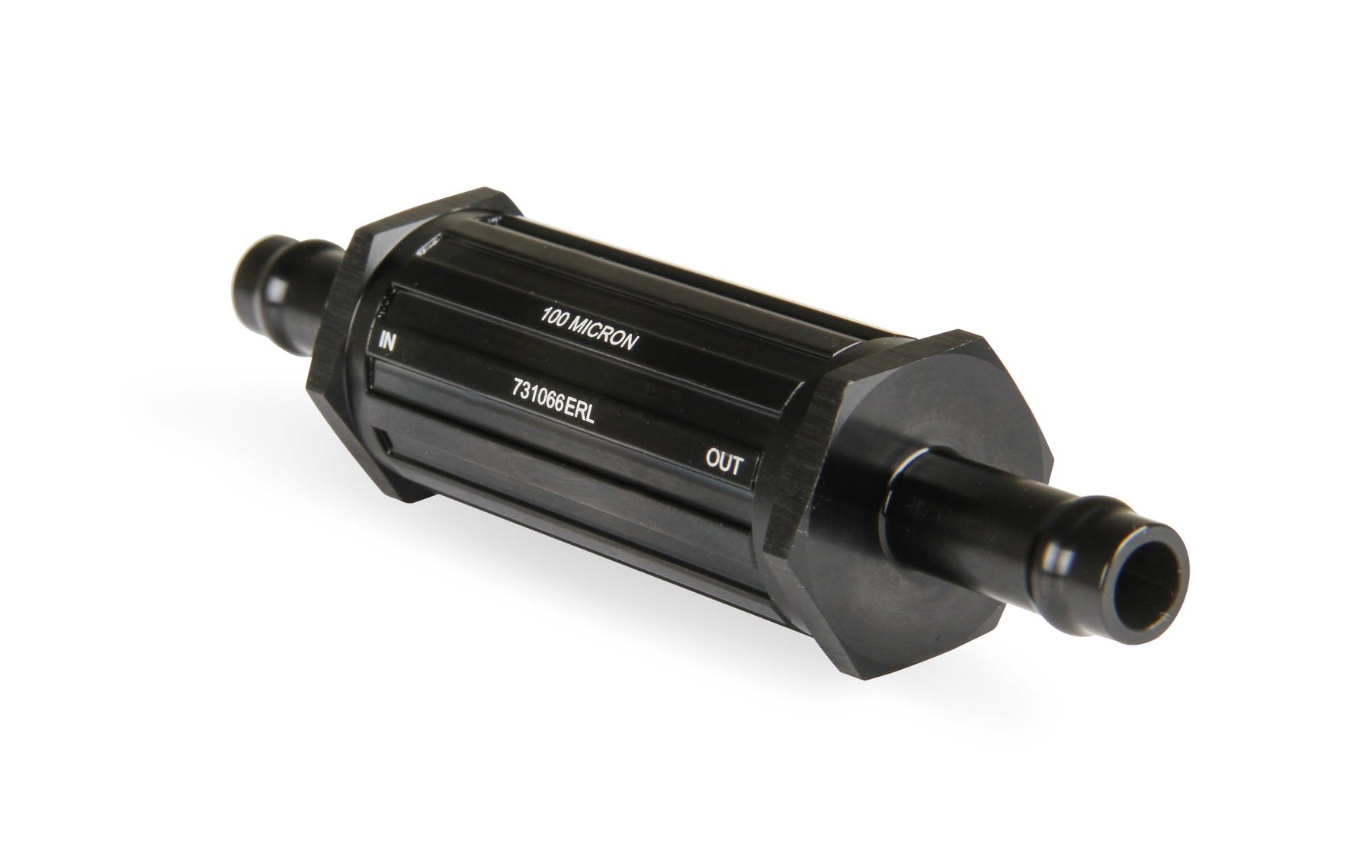

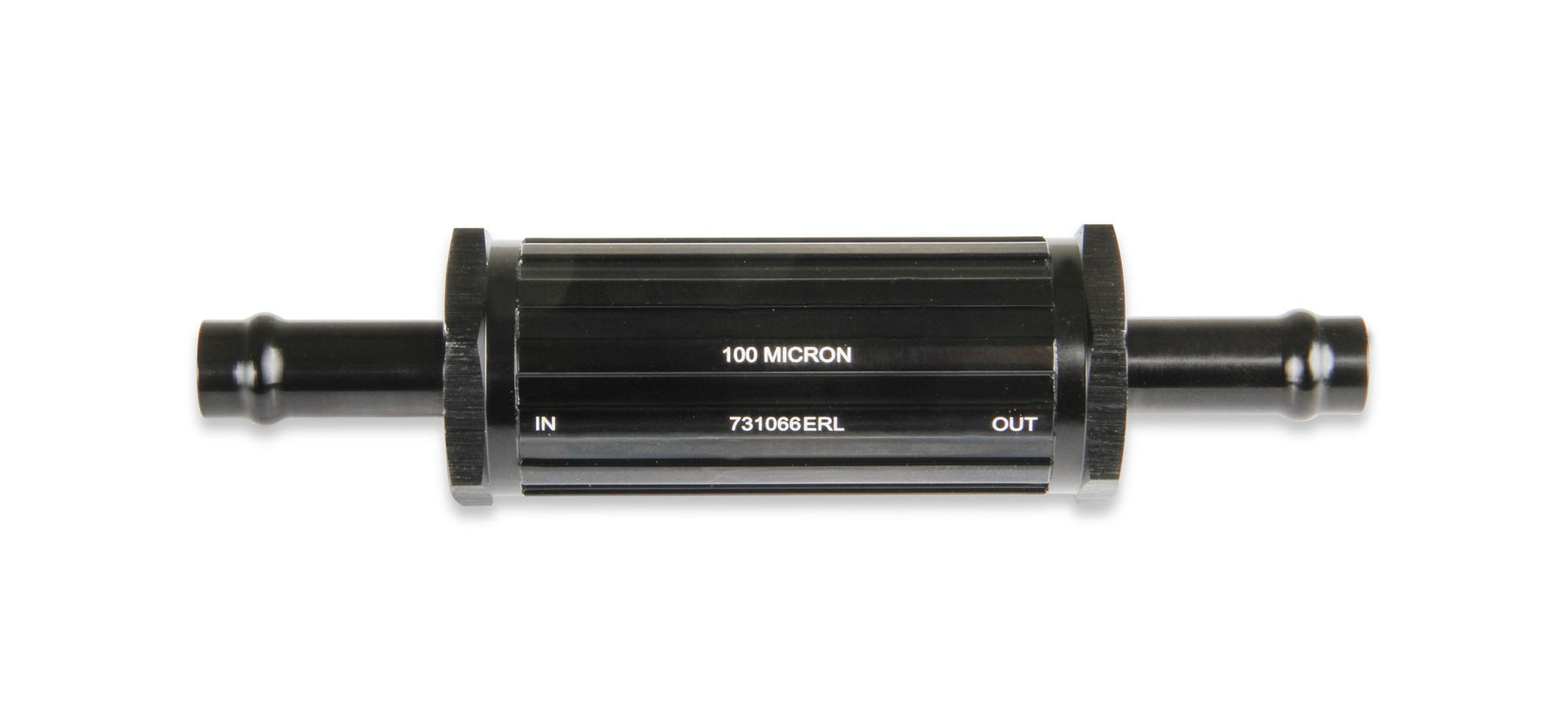

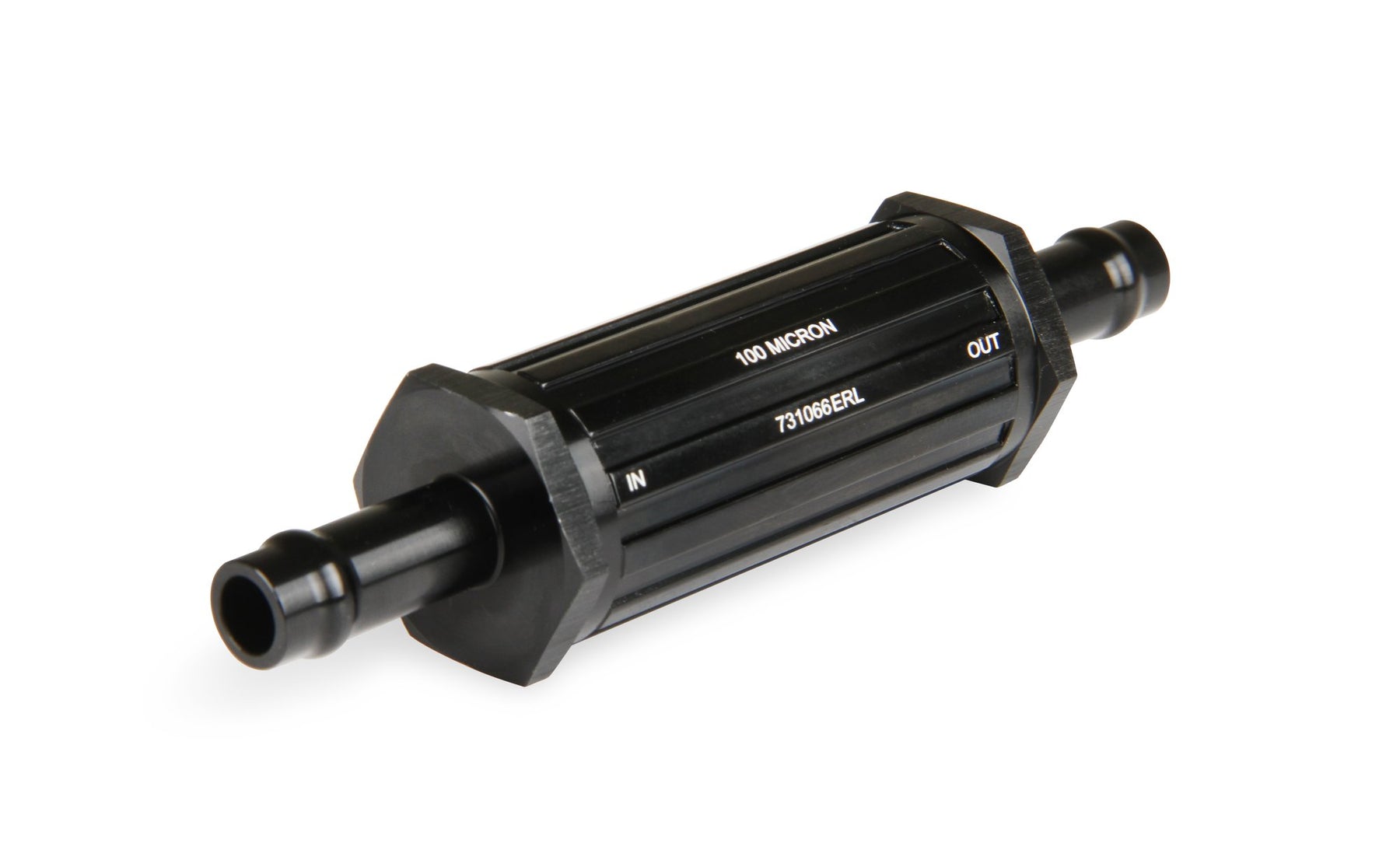

Earl's Vapor Guard Fuel Filter

Billet aluminum pre-filter (100 micron) for use before the fuel pump in EFI & carburetor applications. Use w/ Vapor Guard® fuel hose & clamps.

• Filter Flows 125 GPH at 4.1 PSI (Free Flow) & 88 GPH at 61.4 PSI

Specifications

• Adjustable: Yes
• Assembly Method: Barb & Band Clamp
• Body Diameter: 1.0"
• Brand: Earl's
• Category: Plumbing AN Fittings and Hose
• Color: Black
• Compatible Hose: Vapor Guard
• Diameter: 1.00 inch

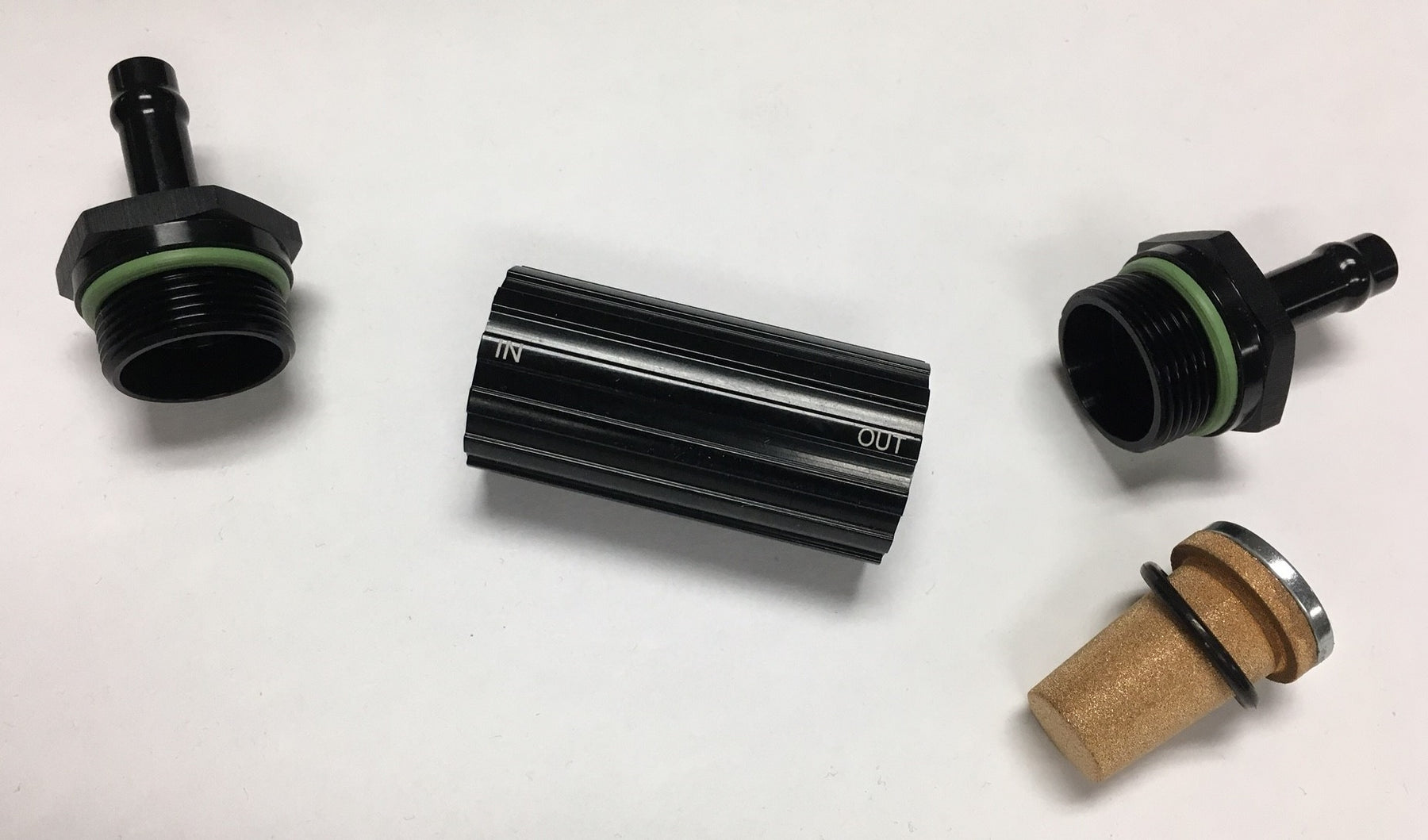

• Element Material: Sintered Bronze
• Emission Code: 5
• Filter Type: Pre Filter
• Finish: Anodized Black
• Fitting to Hose Mate Type: Barb & Band Clamp
• Fuel System Type: Carburetor
• : EFI
• Fuel Type: Gasoline / Diesel
• GPH: 88
• Hose Barb: 3/8"
• Hose End Family: Vapor Guard
• Hose End Series: 75/78
• Hose Size: 3/8
• Inlet / Outlet Size: 3/8" Hose Barb
• Inlet Size: 3/8" Barb
• Installed Length: 2.560"
• Material: 6061 Aluminum
• Max PSI: 100
• Micron: 100 Micron
• Outlet Size: 3/8" Barb
• Overall Length: 4.500"
• Part Type: Fuel Filter
• Product Line: Budget
• Product Type: Fuel Filter
• Reusable: Yes
• Swivel: No
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 731066ERL
