Earl's Billet Fuel Filter

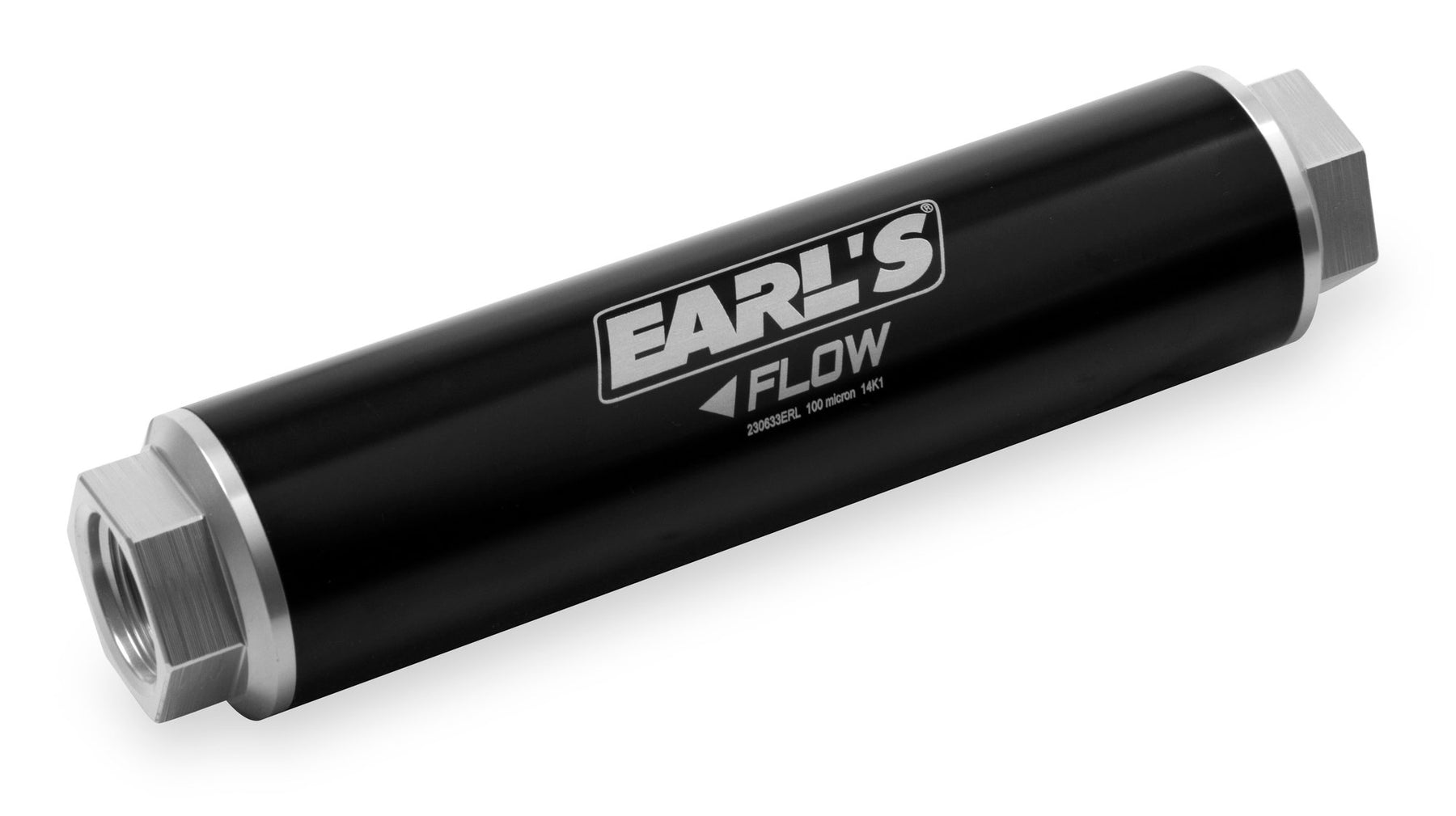

Earl's new HP Billet Fuel Filters are part of the complete HP Fuel Systems product line. HP Billet fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. The Earl's 230633ERL fuel filter features - 12 AN inlet and outlet ports. Replacement elements are also available.

• Recommended as a pump filter (before the pump) in both Carbureted or EFI applications

Specifications

• Body Diameter: 2.0"
• Body Length: 8.750 Inch
• Brand: Earl's
• Category: Air and Fuel Delivery
• Color: Black and Silver
• Diameter: 2 inch
• Element Material: Stainless Steel Woven Mesh
• Emission Code: 5
• Filter Type: Pre Filter
• Finish: Black
• Fuel Type: Gasoline / Diesel / E85
• GPH: 460
• Inlet / Outlet Size: 1-1/16 Female O-Ring (AN 12)
• Inlet Size: 12 AN O-Ring
• Length: 8.75 inch
• Material: Aluminum
• Max PSI: 100
• Micron: 100 Micron
• Outlet: -12 AN O-Ring
• Outlet Size: 12 AN O-Ring
• Part Type: Fuel Filter
• Product Type: Fuel Filter
• Sub Category: Filters
• Warranty: Manufacturer's Limited 90 Day Warranty
• Part Number: 230633ERL
