Dodge Ram HD Single Plane Tie Rod End Metal On Metal 1-14 LH Synergy MFG

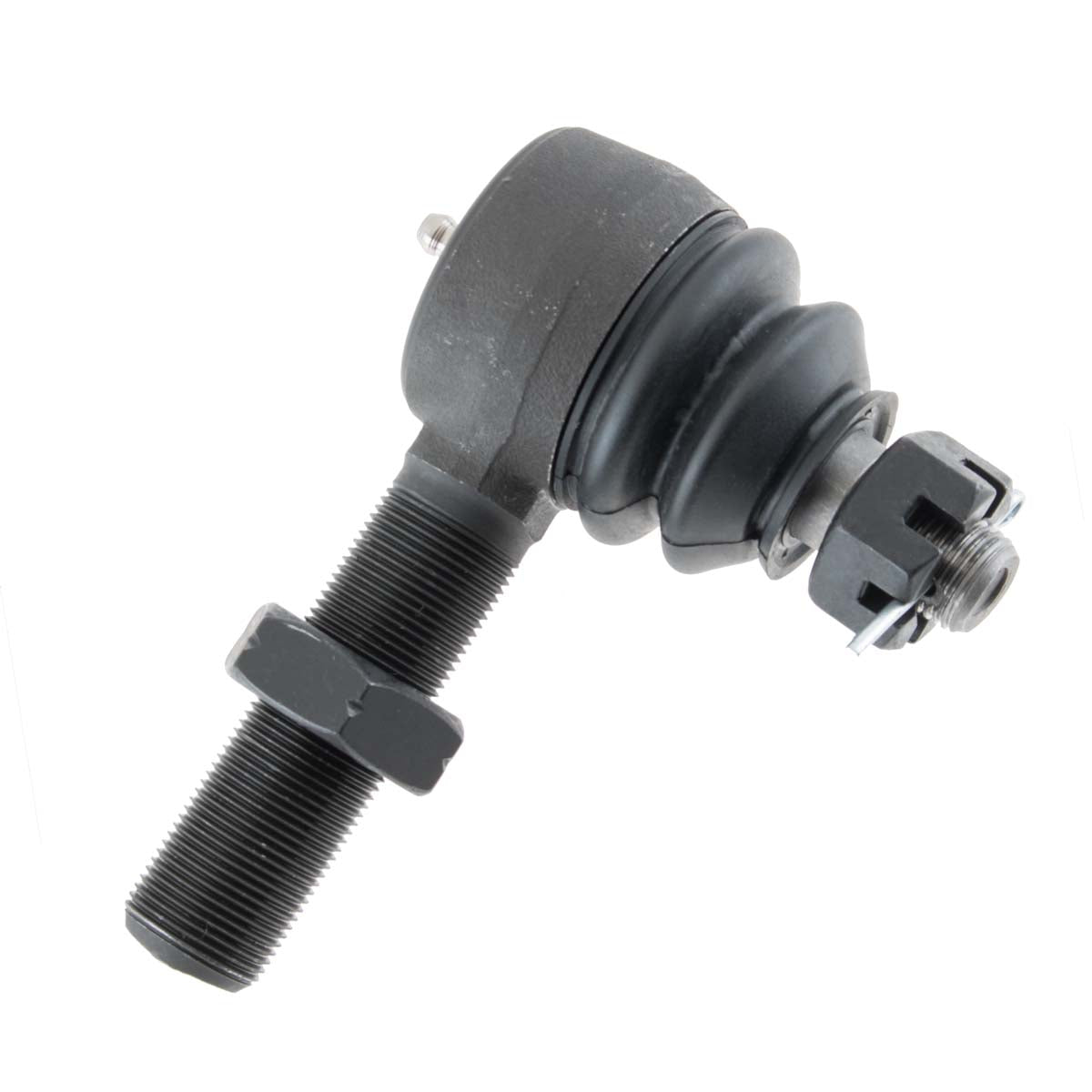

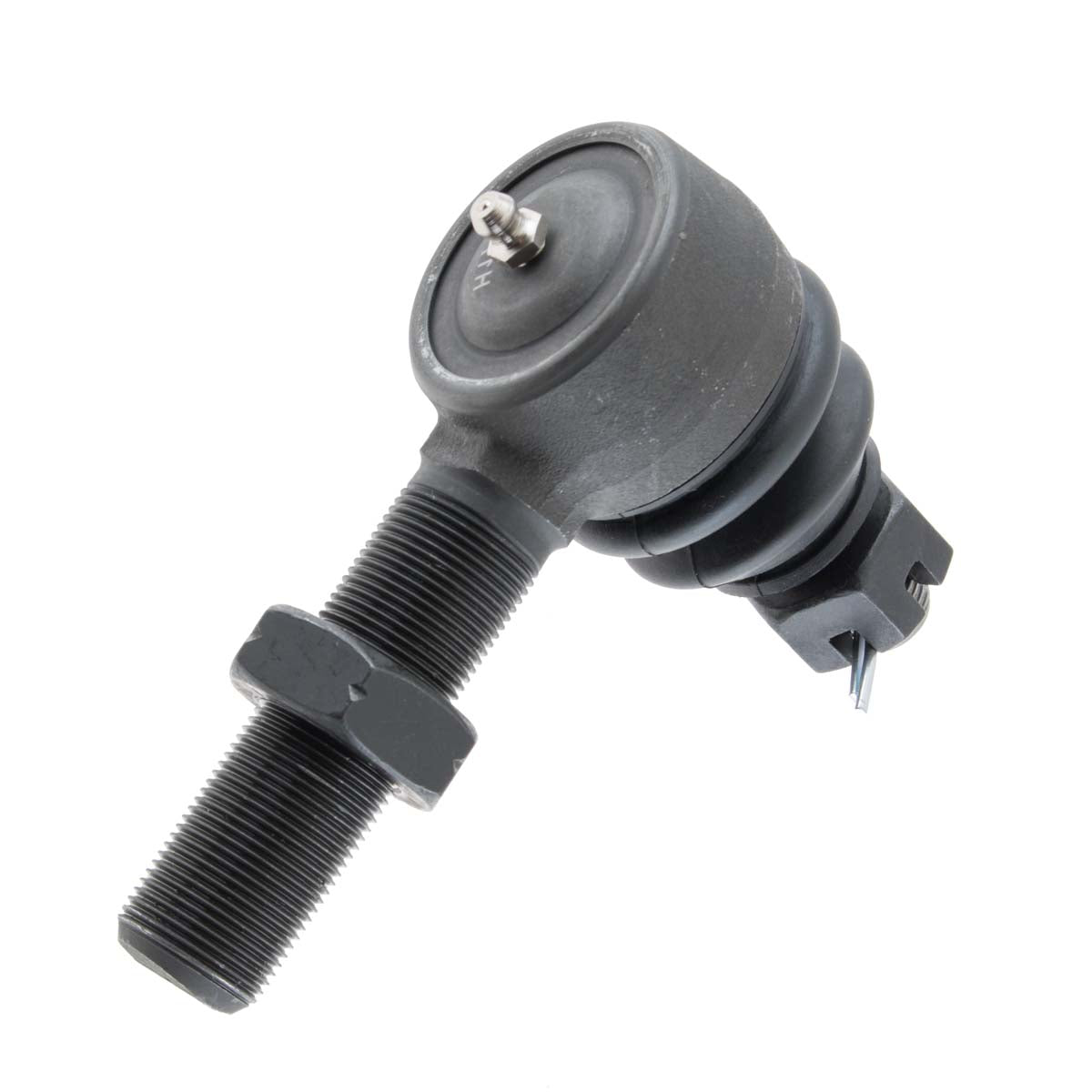

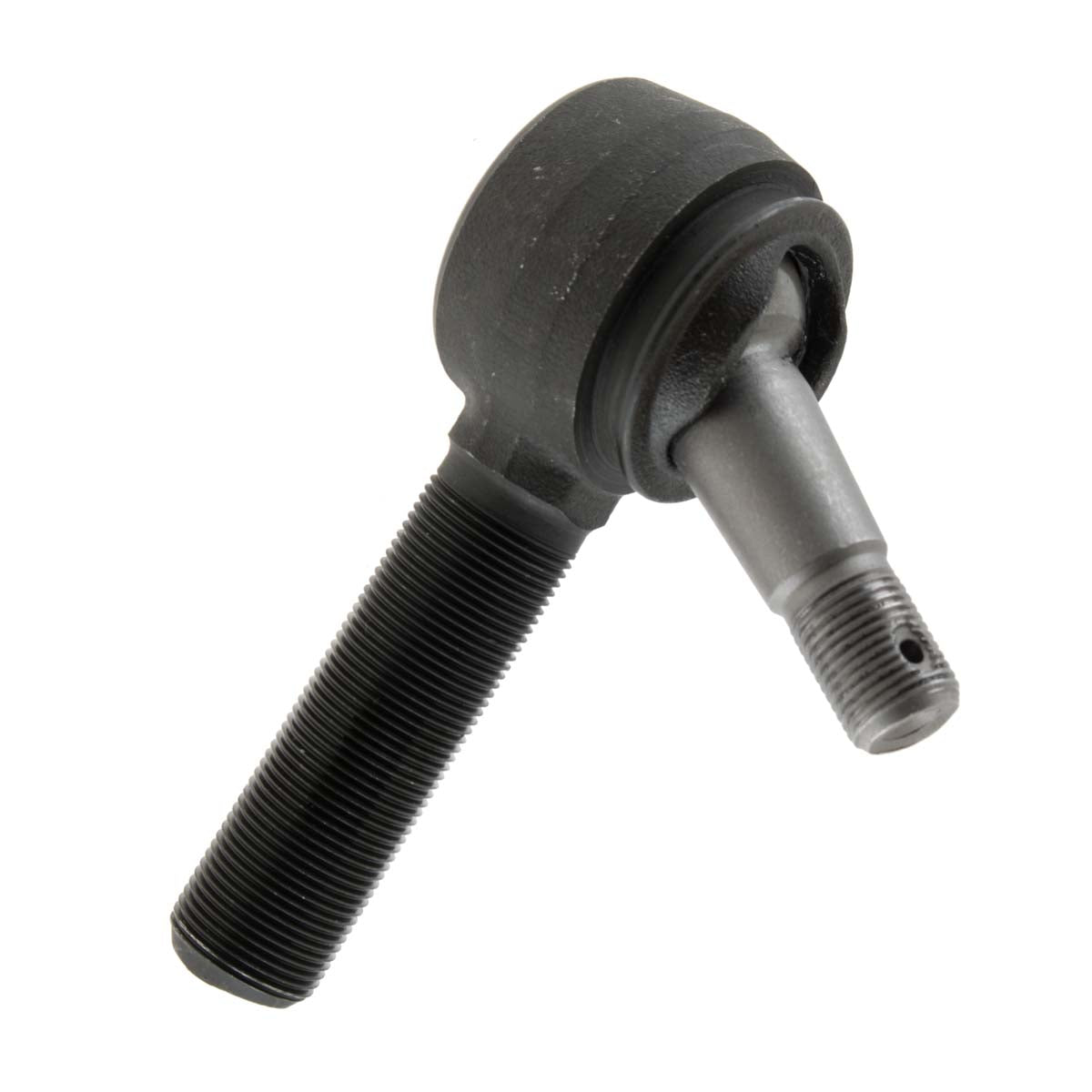

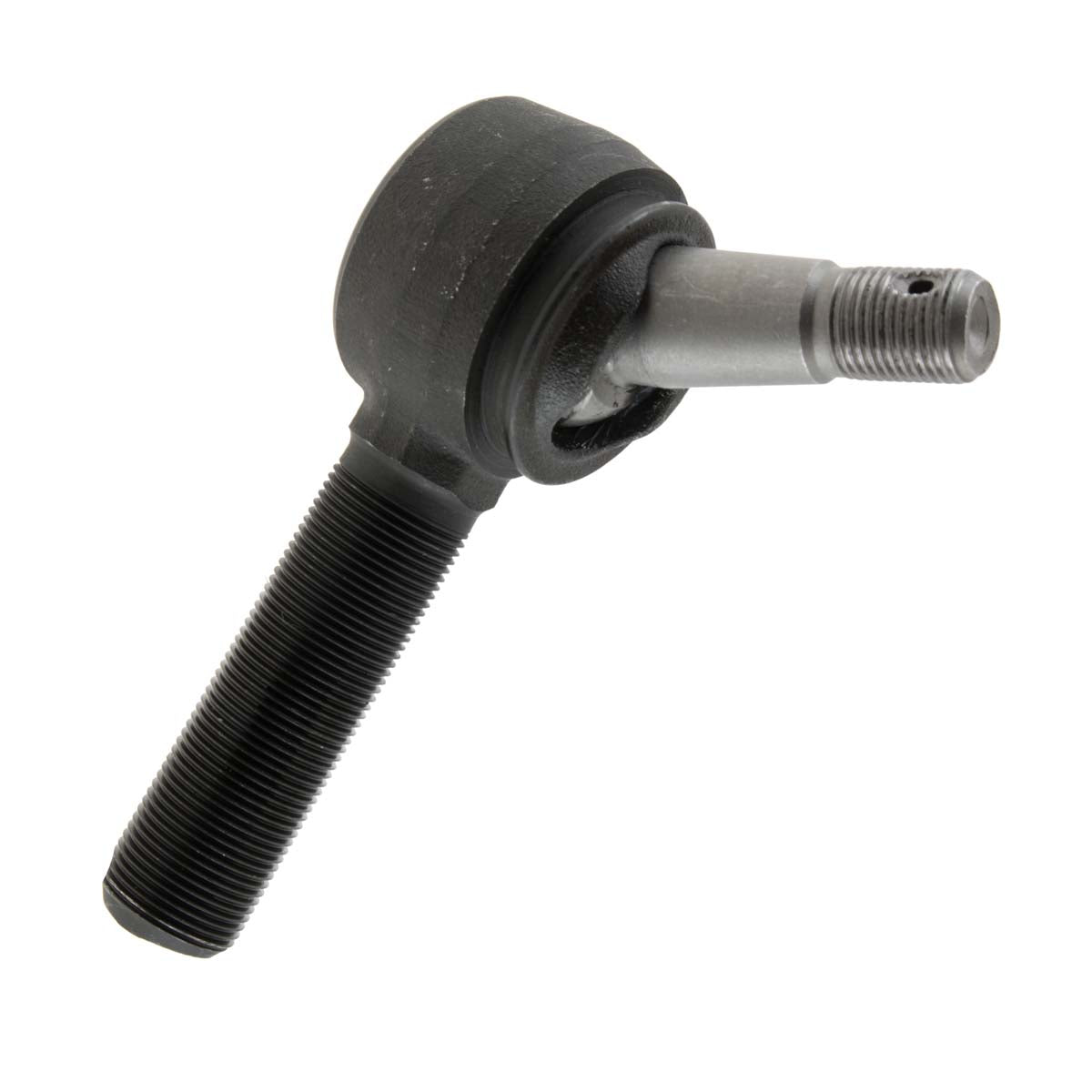

Synergy Dodge Ram HD Single Plane Metal-on-Metal Tie Rod End 1-14 LH

Details:

• Synergy Dodge Ram Heavy Duty Metal-on-Metal Tie Rod Ends
• Fully greasable sintered metal on metal bushing design has high wear resistance
• Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
• Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
• Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
• Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
• Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
• Boots are made from tear/wear resistant black NBR and come with retaining springs. (4133-L, 4136-L, 4138-L, and 4160-L only. 4134-L does not include a dust boot. 4134-L low misalignment boot available separately, 4134-02)

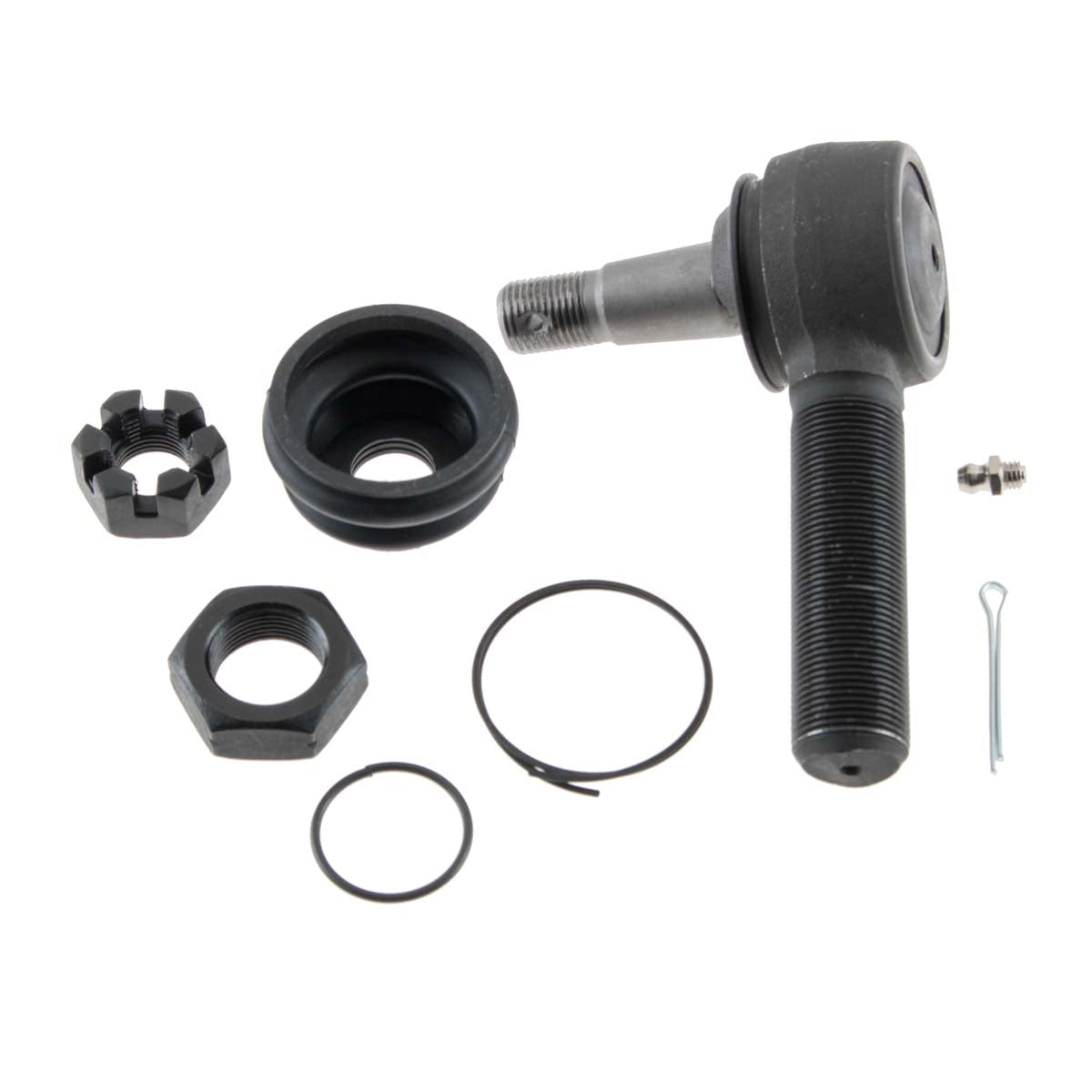

• Includes all necessary hardware for installation
• 1-14 UNF LH Thread
• Synergy High Performance Grease (4119) is the recommended grease for this product
• Fits: 94-current Dodge Ram trucks with Synergy 8525 or 8725 Steering
• Sold Individually

Vehicle fitment: 1994–2010 Dodge Ram 1500; 1994–2010 Dodge Ram 2500; 1994–2010 Dodge Ram 3500; 2011–2019 Ram 1500; 2011–2019 Ram 2500; 2011–2019 Ram 3500

Specifications:

• Synergy MFG part number: 4160-L
• Position: Front
• Vehicle type: Truck/SUV
• Country of origin: India
