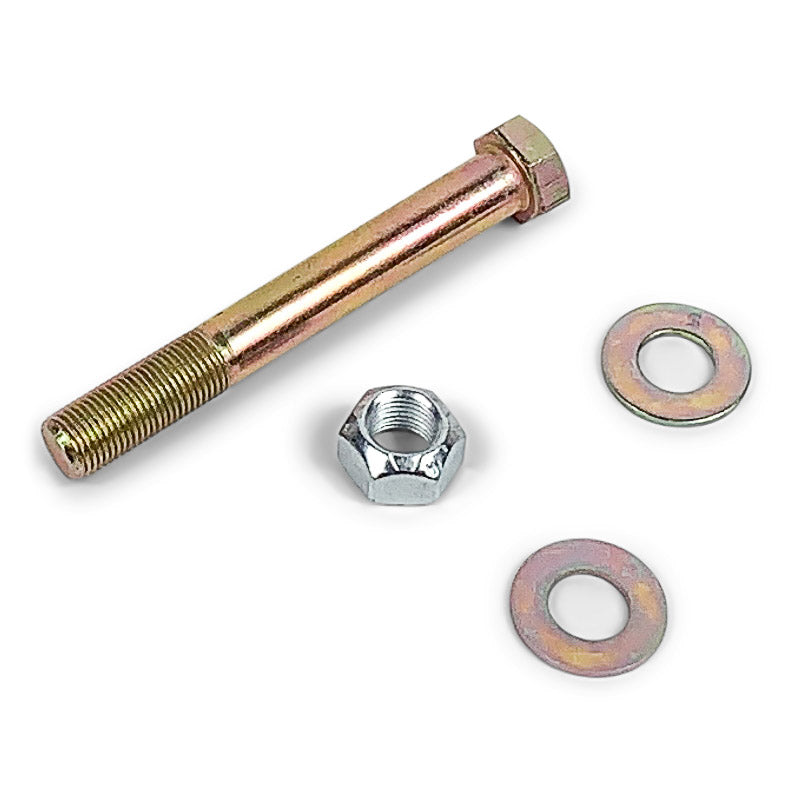

9/16 Inch-18 x 4.0 Inch Bolt Kit
Grade 8 bolt, 2 washers and an all metal lock nut.
- 9/16 Inch-18 x 4 Inch Yellow Zinc Finish Sae J429 Grade 8 Hex Cap Screw
- 9/16 Inch-18 Zinc Finish Grade C Top Lock Nut
- 9/16 Inch Yellow Zinc Finish Sae Thru-Hardened Flat Washer
Approximate torque spec = 146 ft-lbs
Note : This kit uses a Top Lock - it will Not screw on by hand. Start by hand, then use torque wrench.
Uniquely shaped threads provide a vibration resistant friction fit, so the nut stays put. These all metal locknuts withstand higher temperatures than nylon insert locknuts. Top thread section is deformed to create two or three locking zones; they start easily by hand, then must be wrenched into final position. Grade C equivalent to Grade 8. IFI-100/107 Grade C. Ansi B1.1 Unc or Unf Class 2B thread requirement. Zinc plating, retards the corrosion rate in a normal atmosphere.
