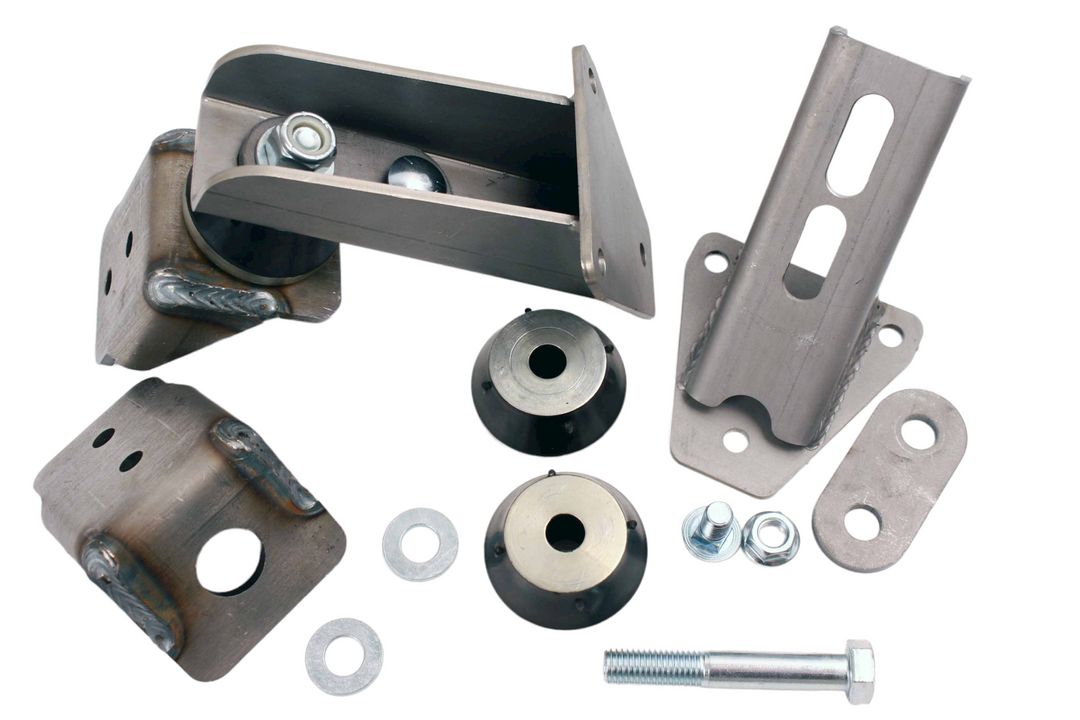

A universal weld-in engine mount kit for older Chevy V8s and Gen I and II small blocks, with brackets you can position up or down to find the right engine location.
Features
- Engine side mounts built from 3/16 inch steel
- Gusseted weld-in frame mounts from 1/4 inch steel
- Slotted design allows side-to-side adjustment, with a slide lock tab to secure position
- Fits 2WD and 4WD frame rail widths up to 28.75 inches
- Complete bolt kit for temporary bolt-in fitment before welding
What is included
- Two engine side mounts
- Two gusseted weld-in frame mounts
- Rubber mount kit
- Slide lock tabs
- Bolt kit
Fitment
- Chevy small block V8 Gen 1 and 2, and 4.3L / 3.8L V6
- Jeep CJ2A to CJ6, M38, MB, Willys truck and wagon
Good to know
- Brackets require welding for final installation
- Open channel frames should be boxed before mounting
- For wider frames put the rubber mounts in the outer slots, and use the inner slots for narrower frames
Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
