Chevy V8 and 4.3L V6 Engine Mount Kit, Narrow Frame (Up to 27.75 in.) - 713001-S

A universal weld-in engine mount kit for putting a Chevy V8 or 4.3L V6 into 2WD and 4WD vehicles with frame rails up to 27.75 inches apart. Frame brackets can be used up or down, so you can fine tune the engine height.

Features

• Slotted mounts allow side to side adjustment, locked in with a slide lock tab
• Bolt the brackets in place first so a welder can finish the job
• Two 3/16 inch steel engine side mounts and two 1/4 inch gusseted frame mounts

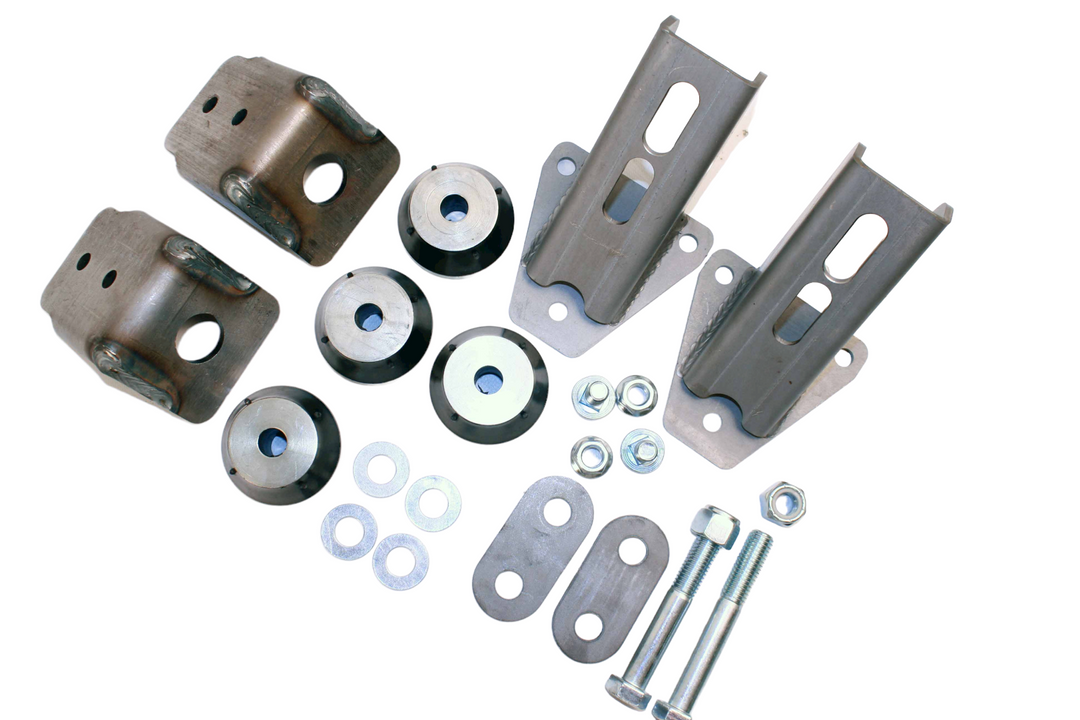

What is included

• 2 engine side mounts
• 2 weld-in frame mounts
• Slide lock tabs
• Rubber mounts and bolt kit

Fitment

• GM V8s and 4.3L V6s with the triangular 3-bolt boss on the block
• 1979-1985 Toyota trucks and 4Runners
• Jeep YJ Wrangler
• Frame widths up to 27-3/4 inches

Good to know

• For a Gen III / IV LS engine, see 713088
• Box in open channel frame rails before welding the new bracket

Not sure this fits your build? Send us your vehicle, engine and transmission and we will confirm fit before you order.
