Carli 2020-2022 Ford F-250/F-350 Super Duty Diesel Commuter System, PAP 2.5"/3.5" Lift Kit

Ford Leveling Commuter System, Progressive Add-A-Pack Valving

3.5″ Lift – 2020-2023 F250/350 4×4 Diesel, Base Kit

2.5″ Lift – 2017-2019 F250/350 4×4 Diesel, Base Kit

The Super Duty Commuter 2.0 system is designed for people seeking the best on-road ride quality that don’t plan to off-road their vehicle beyond low-speed trail driving. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling.

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.

The truck will sit 3.5” higher in the front and have more wheel travel thanks to the lighter rate Carli Coil Springs. The Adjustable Track Bar centers the front axle and Stainless Brake Lines firm up braking and ensure there is enough line for the newfound travel. To round off the front end, we include Caster Shims to tighten the steering and a fabricated, High-Clearance Bump Stop Drop to keep the springs clear from the contacting the factory bump stop. The front Sway Bar Geometry will need to be addressed with your choice of a Sway Bar Drop Bracket (more economical, maintains the factory Sway Bar End Links) or our Extended Sway Bar links with relocation brackets – a FAR more robust option. For those seeking the most possible ride quality, we offer our full replacement Torsion Sway Bar that lightens the most neglected spring rate – the factory sway bar. From the Torsion Sway bar upgrade, one can expect a far more compliant feel and increased articulation with only slightly more body roll.

The rear can be outfitted with one of 3 options:

1. 1. Best: A replacement Full Progressive Spring Pack (reduces capacity to a “light” ¾-ton). The Full Progressive Leaf Spring Pack offers the best ride and will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression. The Full Replacement Leaf Springs do not require any block (factory block is removed). If capacity is a concern, an aftermarket airbag system should be installed to complement the Full Progressive Leaf Springs to restore the F350 capacity. We recommend a system that will allow the airbags to disconnect from the lower mount during suspension cycling to ensure you’re able to take advantage of all your rear suspension travel. The Full Progressive Leaf Spring Pack will shift the axle slightly forward in the wheel well to ensure maximum tire clearance for a 37” M/T at full compression.
   2. Better: Factory leaf-pack modifying Progressive Add-a-Pack (maintains factory payload capacity). The F250 has a lighter rate spring pack (2 main leaf springs) than its 350 counterpart (3 main leaf springs). The F250 Add-a-Pack equipped systems are a nice improvement over stock; the F350 with the Add-a-Pack is still very stiff in the rear as the main pack doesn’t move much unless loaded. We recommend the Full Replacement Leaf Spring packs for both trucks but especially the F350 given the super-stiff factory springs. If you own an F250 built with the Tremor or high-capacity tow package, these are equipped with an F350 rear spring and should avoid the add-a-pack, as well.
   3. Good: The final option is to select “NO rear option” in this scenario, the rear lift will be left up to the customer as no rear spring modification is purchased. With this option, the rear springs are unaltered and customers will be best with the “PAP” valving profile. The valving has been tested on both F250 and F350 (2 and 3 leaf main packs). The F250s with 2 Main springs will require a taller block to sit level (4″ and slightly tapered). The F350 (and f250 High capacity tow) with 3- leaf main springs will need a 3″ block, also slightly tapered. Tremors do not require a block change as they come with a taller, tapered block and will sit slightly rear high with the Carli System installed.

Wheel and Tire: Factory Wheels SHOULD NOT be run with oversized tires. They’re known to rub the radius arm, sway bar and most concerning – Brake Lines. Factory tires and factory wheels will work without issue but we DO NOT recommend running oversized tires on factory wheels. On our 3.5” Ford Systems, we recommend 17”-18” wheels, no more than 9” wide with 5.5” of backspacing with Carli Fabricated Radius Arms or 5” Backspace with factory arms; 5” will require a bit more trimming. Tires, 37×12.5” will fit with some trimming; 35” will likely fit without trimming. The more rubber, the better the small bump compliance will be at proper inflation pressures. The ride will firm up as you go larger in wheel diameter.

Specifications

• F250/350 Lift Height: 3.5″
• TREMOR Lift Height: 1.5″
• Front Travel: 9.0″
• Rear Travel: 12.3″
• Shock Diameter: 2″
• Tire Fitment: 37″ x 12.5″

Base kit includes

• CS-FLC-05 – Front Leveling Coils

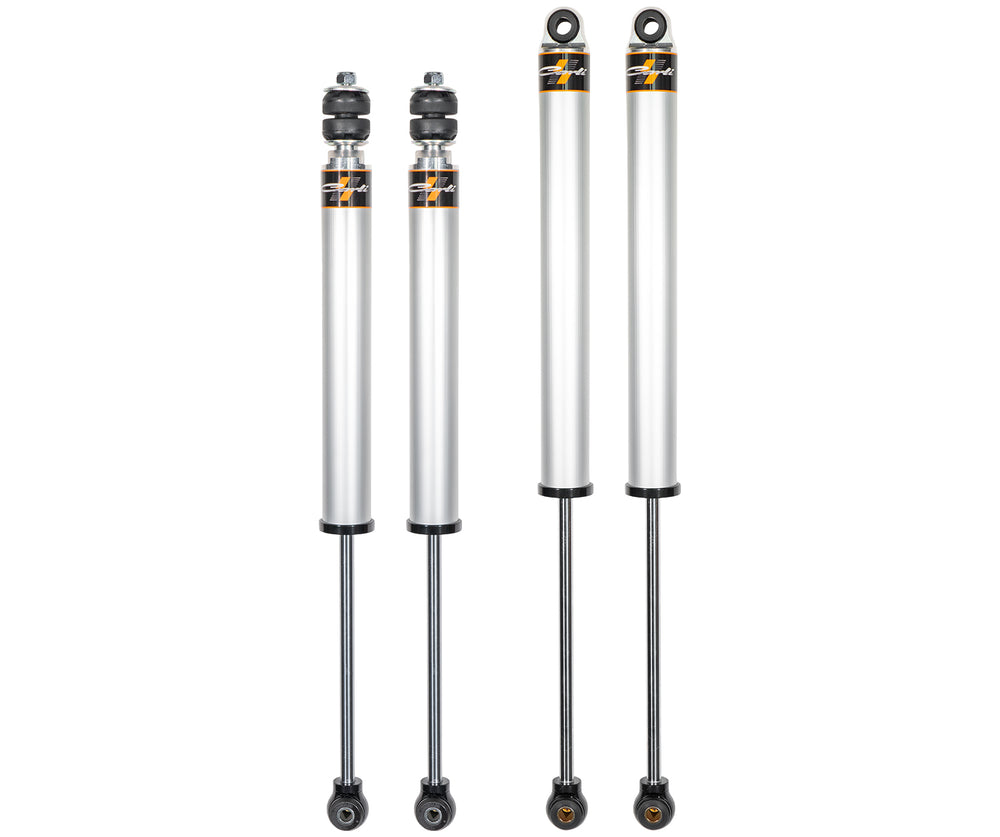

• AS-FLVLSPKG-CS20IFP-B – Carli SPEC 2.0″ IFP Shocks, Front and Rear, PAP Valving
• CS-FBDF-25-17 – Front Bump Drops

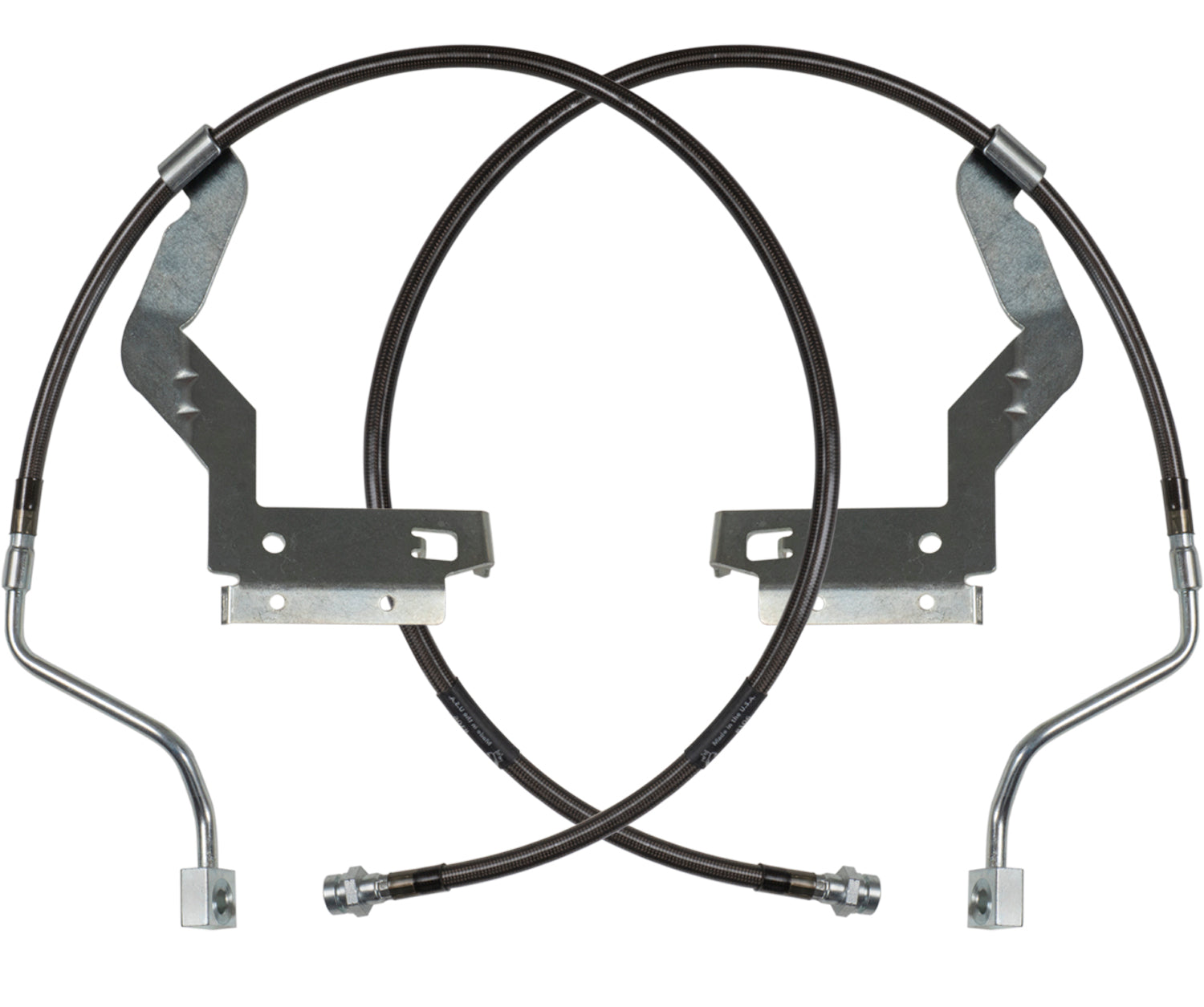

• CS-FORDBBL-LVL-17-F – Front Brake Lines
• CS-FCASTERSHIM-25 – 2° Caster Shim
• CS-FATB-17 – Track Bar

Available add-ons

• Base Kit Option (required): Diesel Commuter System, PAP 2.5"/3.5" Lift (CS-FLVL-COM-CS-17-PAP); Diesel Commuter System, FSP 2.5"/3.5" Lift (CS-FLVL-COM-CS-17-FSP)
• Front Sway Bar Selection (required): Stock Sway Bar Frame Drop Bracket 2.5"/3.5" Lift (CS-FSBD-LVL-1723); Extended Sway Bar End Link & Sway Bar Drop Bracket Kit - 3.5" (CS-FELKIT-LVL-20); Torsion Sway Bar Kit with End Links 2.5"/3.5" Lift (CS-FTSB-LVL-17)
• Rear Leaf Spring Selection: Progressive Add-A-Pack 1" Lift (CS-FPAP-LVL-17); Full Progressive Leaf Spring Kit 1" Lift (CS-FFSP-LVL-17); HD +1000lbs Progressive Leaf Spring Kit 1" Lift (CS-FFSP-LVL-17-HD)
• Leaf Spring Shackle: Fabricated Leaf Spring Shackle (CS-FSHACKLE-11)
• 2° Pinion Shim: Ford Pinion Shim Kit, 2 Degree (CS-FPSKIT-3X2)
• Adjustable Radius Arms: Fabricated Radius Arms 2.5"/3.5" Lift (CS-FARA-LVL-05)
• High Mount Steering Stabilizer: High Mount Steering Stabilizer - Stainless Steel 2.5"/4.5" Lift (CS-FHMSS-17)
• Low Mount Steering Stabilizer: Low Mount Steering Stabilizer Kit - with Differential Guard (CS-FLMSS-05)
• Light Bar: Fabricated Light Bar (CS-FLB-17)
• Trophy Hitch: Ford Trophy Hitch (CS-FHITCH-1723)
