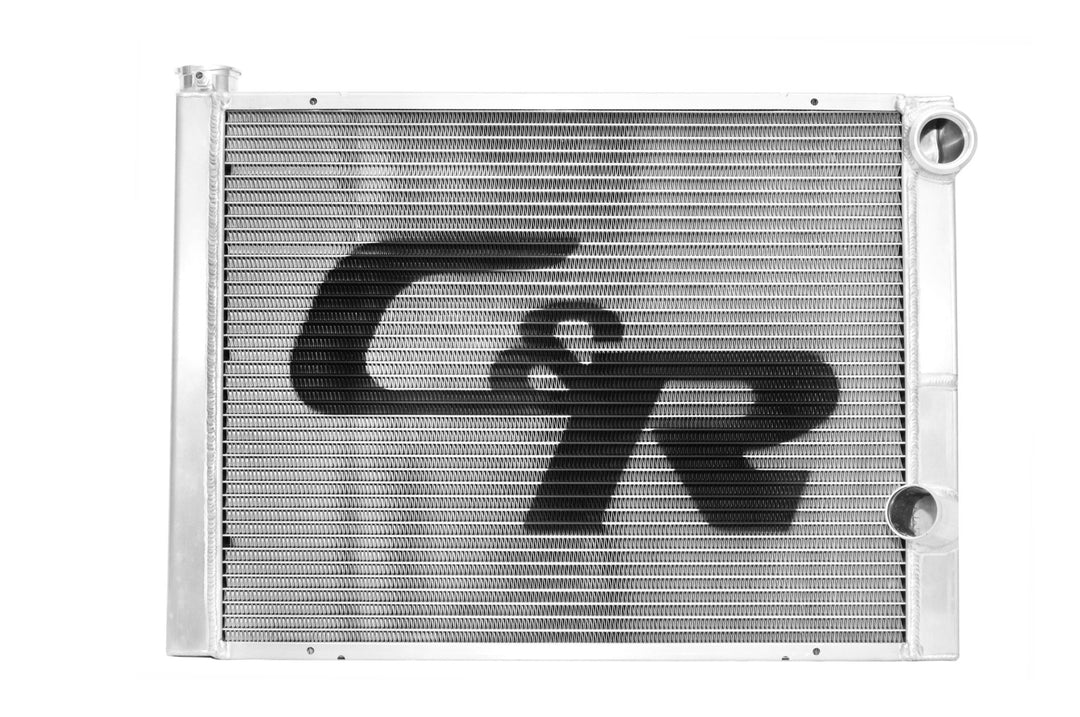

C&R Universal CR Performance Radiator 2-Pass Open 31" x 16" 1-3/4" High Outlet 902-31161

C&R Universal CR Performance Radiator 2-Pass Open 31" x 16" 1-3/4" High Outlet 902-31161 – C&R Racing part number 902-31161.

CR Racing universal radiators with internal heat exchangers are excellent, general-purpose radiators capable of cooling many applications depending on the vehicle and use. They utilize an in-tank aluminum 7-plate heat exchanger/oil cooler with -12 AN Male Fittings.

Our universal radiators come standard with a 42mm thick core utilizing rolled dimpled tubes with our engineered V-shape fin. These radiators are available in either a single or double pass configuration as well as being an open or closed system.

The inlet comes with our -20AN universal port bung so you can select the inlet size of your choice while the outlet comes standard with a 1-3/4 inch hose barb fitting available in a high or low mounting position. Mounting provisions for SPAL fans and aluminum shrouds are included onto the radiators.
Features:

• Radiator Universal CR Performance Double Pass Open 31 Inch x 16 Inch 1-3/4 Inch High Outlet
• Radiator Style: Crossflow
• Number of Passes: Double
• Inlet Location: Upper Passenger Side
• Inlet Size: Universal
• Outlet Location: Lower Passenger Side
• Outlet Size: 1.75 Inch
• Tube Size: 42mm

Specifications

• Core material: Aluminum
• Finish: Natural
• Rows: 1

Product information

• C&R Racing part number: 902-31161
• Country of origin: USA
• Package size: 36 x 26 x 9 in
• Shipping weight: 25 lb
