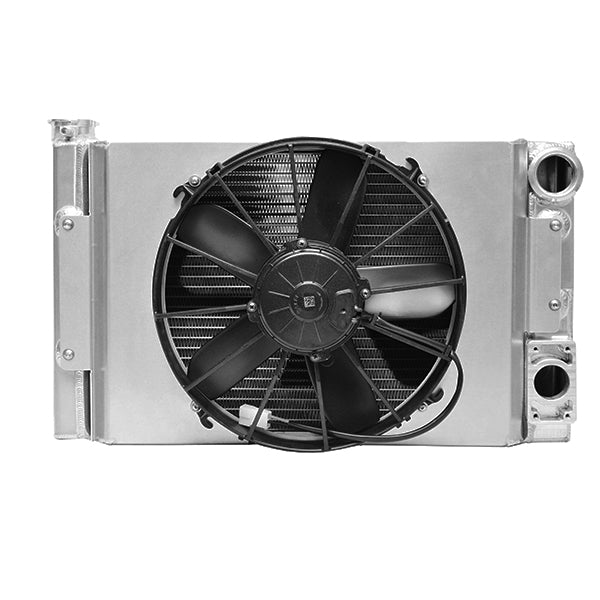

C&R Scirocco Drag Radiator Module Open 22" x 13" for Meziere Pump w/ 12" Fan & Shroud 937-22132
937-22132
C&R Scirocco Drag Radiator Module Open 22" x 13" for Meziere Pump w/ 12" Fan & Shroud 937-22132 – C&R Racing part number 937-22132.
Specify your inlet and outlet fittings when ordering.
Module Drag Universal Scirocco Style Built For The Meziere Electric Water Pump (pump not included) W/Spal 12 in Fan and Shroud 22 in x 13 in Open System One Row 42mm Extruded Tube Double Pass -20 Bung For Inlet (Please Specify Universal Inlet Fitting Size). C&Rs drag car radiator package truly outshines all others. Whether a front engine door-slammer, pro-stock, super gas, super mod, etc. or a rear engine dragster, we have you covered. Our Scirocco style radiators bolt into the industry standard location and are not only totally universal inlet and outlet, but also available with or without Meziere or Stewart electric pump mounted to the radiator. Used by Warren and Kurt Johnson for over 10 years!
Specifications
- Radiator style: Crossflow
- Number of passes: Double
- Core material: Aluminum
- Finish: Natural
- Tube size: 42mm
- Rows: 1
- Inlet size: Universal
- Inlet location: Upper Passenger Side
- Outlet location: Lower Passenger Side
- Radiator cap: No
- Engine oil cooler included: No
- Power steering cooler included: No
- Transmission cooler: No
- LS steam line port: No
- Fans included: Yes
- Fan quantity: 1
- Fan diameter: 12 in
- Maximum fan CFM: 1640
- Fan blade material: Plastic
- Fan used: IX-30102038
Product information
- C&R Racing part number: 937-22132
- Country of origin: USA
