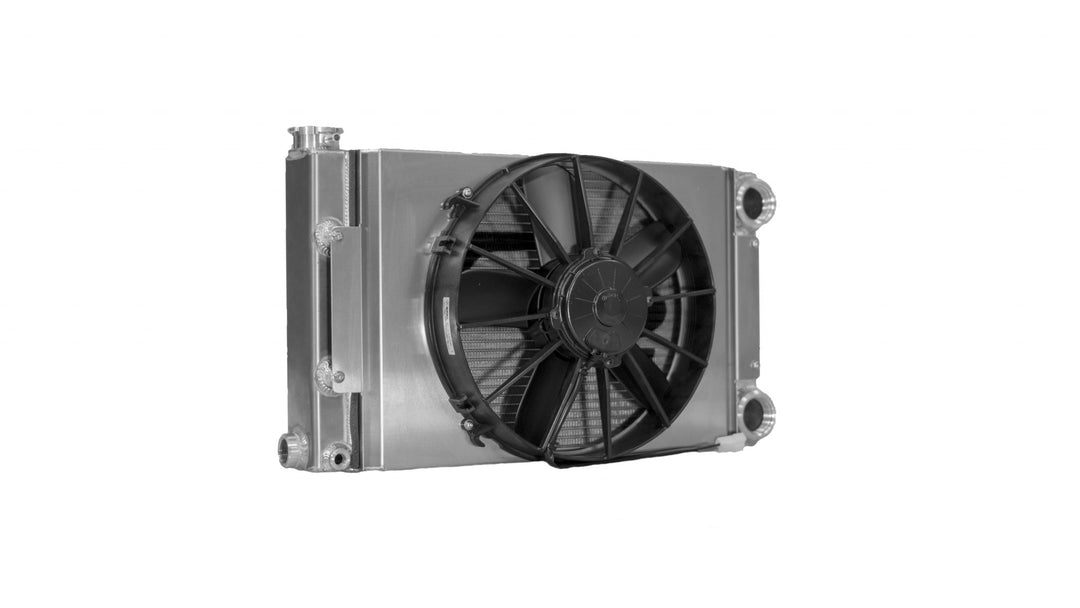

C&R Scirocco Drag Radiator Module Open 22" x 13" -20 AN w/ 12" Fan & Shroud 939-00000

C&R Scirocco Drag Radiator Module Open 22" x 13" -20 AN w/ 12" Fan & Shroud 939-00000 – C&R Racing part number 939-00000.

Specify your inlet and outlet fittings when ordering.

CR's Drag Racing Radiator Packages truly outperform all others. Whether it's a door-slammer, pro-stock, super gas, super mod, or a rear engine dragster, we have you covered.
Features:

• Radiator Module Drag Scirocco Style Open 22 Inch x 13 Inch -20 AN Port Inlet and Outlet (Specify Fittings) w/ 12 Inch Spal Fan and Shroud
• 42mm Extruded Tube Core
• Large Radiator Neck, Open System.
• -20AN Universal Port Bung, Inlet
• -20AN Universal Port Bung, Outlet
• (2) 1/2 inch NPT Chiller/Cool Down Hookups
• 1/4 inch NPT Bung
• 3/4 inch NPT Drain
• (8) 1/4 inch-20 Mounting Bosses to mount in vehicle and to attach shroud
• SPAL 12 inch High-Performance Fan w/ Custom Made Aluminum Shroud
• Fan CFM: 1640
• Radiator Style: Crossflow
• Number of Passes: Double
• Inlet Location: Upper Passenger Side
• Inlet Size: Universal
• Outlet Location: Lower Passenger Side
• Outlet Size: Universal
• Tube Size: 42mm

Specifications

• Core material: Aluminum
• Finish: Natural
• Rows: 1

Product information

• C&R Racing part number: 939-00000
• Country of origin: USA
• Package size: 29 x 20 x 7 in
• Shipping weight: 20 lb
