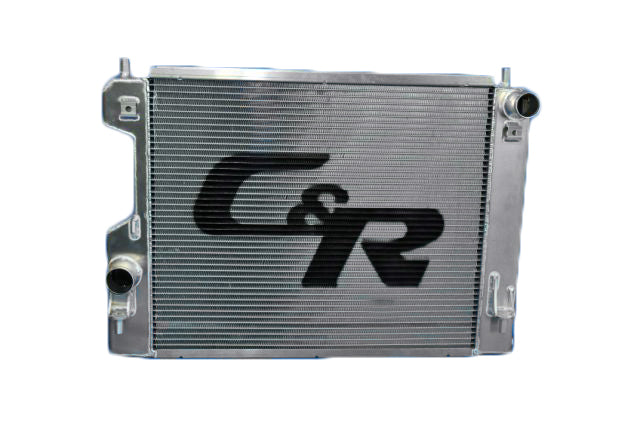

C&R Ford Mustang Shelby GT500 2007-2014 Extruded Tube Radiator - Uses OE Fan & Condenser Mounts 25-10640
25-10640
C&R Ford Mustang Shelby GT500 2007-2014 Extruded Tube Radiator - Uses OE Fan & Condenser Mounts 25-10640 – C&R Racing part number 25-10640.
Fits: 2007-2014 Ford Mustang.
C & R Performance introduces a revolutionary advancement in cooling technology for the 07-14 Ford Shelby GT500. With all-new extruded tube aluminum radiator that features a reinforced race fin design. Additionally, CR Racings exclusive, reinforced race fin design is cross-braced for maximum strength and durability and features an aluminum fin that has a unique shape and the leading edge is hemmed for more durability and added cooling. It is that exclusive reinforced extruded tube that allows C & R Performance aluminum radiators to have a 100 PSI burst rating, more than triple the burst pressure of any other performance aluminum radiator in the world.
Using current F1 and NASCAR cooling technology, C&R extruded tube core has reinforced corner sub headers for unequalled strength.
- Extruded Aluminum 55mm core. 12 4mm wide tubes
- Race fin that allows more contact area of the coolant tube and more airflow thru the fin.
- Hemmed leading edge fin for stronger fin. Will not fold over as easy as regular fin cores.
- 100 psi burst pressure
- corner sub headers for increased strength.
- Will cool up to 650 hp
- OE fit for easy installation
- Accepts factory Ford Fan and a/c condenser
- Highly recommended for hot climates or increased HP.
Specifications
- Radiator style: Crossflow
- Number of passes: Single
- Core material: Aluminum
- Finish: Natural
- Tube size: 1 Inch
- Rows: 2
- Inlet size: 1.75 Inch
- Inlet location: Upper Drivers Side
- Outlet size: 1.75 Inch
- Outlet location: Lower Drivers Side
- Radiator cap: No
- Engine oil cooler included: No
- Power steering cooler included: No
- Transmission cooler: No
- LS steam line port: No
- Fans included: No
Compatible engines: Ford Engine, Ford V8, 5.4L Ford, 5.8L Ford.
Product information
- C&R Racing part number: 25-10640
- Country of origin: USA
- Package size: 26 x 9 x 36 in
- Shipping weight: 28 lb
