C&R Ford Mustang GT500/GT350/GT 2007-2014 Tall Supercharger Heat Exchanger 56-00001
56-00001
C&R Ford Mustang GT500/GT350/GT 2007-2014 Tall Supercharger Heat Exchanger 56-00001 – C&R Racing part number 56-00001.
Fits: 2005-2014 Ford Mustang.

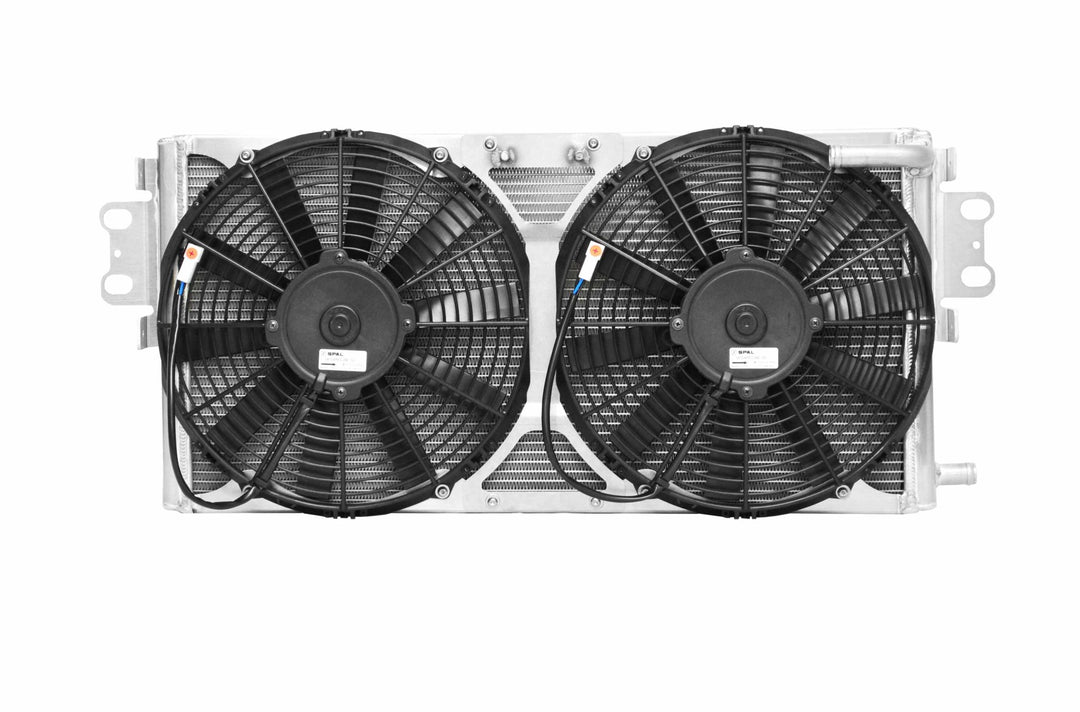

Mustang GT500 tall heat exchanger stops dreaded heat soak. Using unique PWR core and high-performance spal fans gives C&R the advantage over our competition. Designed for the 1000hp Shelby Super Snake and is a direct bolt in on any 2005-14 Mustang GT, GT350 and GT500. We recommend this unit for 700 plus hp or hot climates. Spal fans come already mounted and help pull cool air thru the core at no or low speeds.They pull up to 15 amps each. All required hardware, fan relays and hoses are included. We recommend factory coolant or equivalent. The fans and electric water pump are activated by the ECM.
- Direct bolt in on 2005-14 Mustang
- stops heat soak
- recommended for 700 plusHP or hot climates
- lower IAT'S for higher HP and torque
- keeps engine from going into limp mode
- Perfect for factory or aftermarket superchargers
Specifications
- Number of passes: Single
- Core material: Aluminum
- Finish: Polished
- Tube size: 42mm
- Rows: 1
- Radiator cap: No
- Engine oil cooler included: No
- Power steering cooler included: No
- Transmission cooler: No
- LS steam line port: No
- Fans included: Yes
- Fan quantity: 2
- Maximum fan CFM: 2100
- Fan blade material: Plastic
- Fan used: IX-30101504
Compatible engines: Ford Engine, Ford V8, 4.6L Cammer Ford, 5.0L Cammer Ford, 5.0L Coyote Ford, 5.4L Ford, 5.8L Ford.
Product information
- C&R Racing part number: 56-00001
- Country of origin: USA
- Package size: 26 x 10 x 36 in
- Shipping weight: 30 lb
