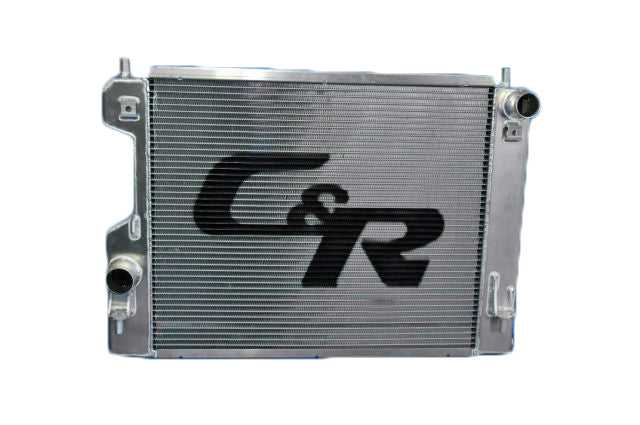

C&R Ford Mustang 2005-2014 Extruded Tube Radiator GT 4.6 5.0 Coyote 25-10600 – C&R Racing part number 25-10600.
C & R Performance introduces a revolutionary advancement in cooling technology for the 2005-14 Ford Mustang GT. With all-new extruded tube aluminum radiator that features a reinforced race fin design. Additionally, CR Racings exclusive, reinforced race fin design is cross-braced for maximum strength and durability and features an aluminum fin that has a unique shape and the leading edge is hemmed for more durability and added cooling. It is that exclusive reinforced extruded tube that allows C & R Performance aluminum radiators to have a 100 PSI burst rating, more than triple the burst pressure of any other performance aluminum radiator in the world.
Using current F1 and NASCAR cooling technology, C&R extruded tube core has reinforced corner sub headers for unequalled strength.
- Extruded Aluminum 55mm core. 12 4mm wide tubes
- Race fin that allows more contact area of the coolant tube and more airflow thru the fin.
- Hemmed leading edge fin for stronger fin. Will not fold over as easy as regular fin cores.
- 100 psi burst pressure
- corner sub headers for increased strength.
- Will cool up to 650 hp
- OE fit for easy installation
- Accepts factory Ford Fan and a/c condenser
Specifications
- Radiator style: Crossflow
- Number of passes: Single
- Core material: Aluminum
- Finish: Natural
- Tube size: 1 Inch
- Rows: 2
- Inlet size: 1.50 Inch
- Inlet location: Upper Drivers Side
- Outlet size: 1.50 Inch
- Outlet location: Lower Drivers Side
- Radiator cap: No
- Engine oil cooler included: No
- Power steering cooler included: No
- Transmission cooler: No
- LS steam line port: No
- Fans included: No
Compatible engines: Ford Engine, Ford V8, 4.6L Cammer Ford, 5.0L Cammer Ford, 5.0L Coyote Ford.
Product information
- C&R Racing part number: 25-10600
- Country of origin: USA
- Package size: 26 x 9 x 36 in
- Shipping weight: 28 lb
