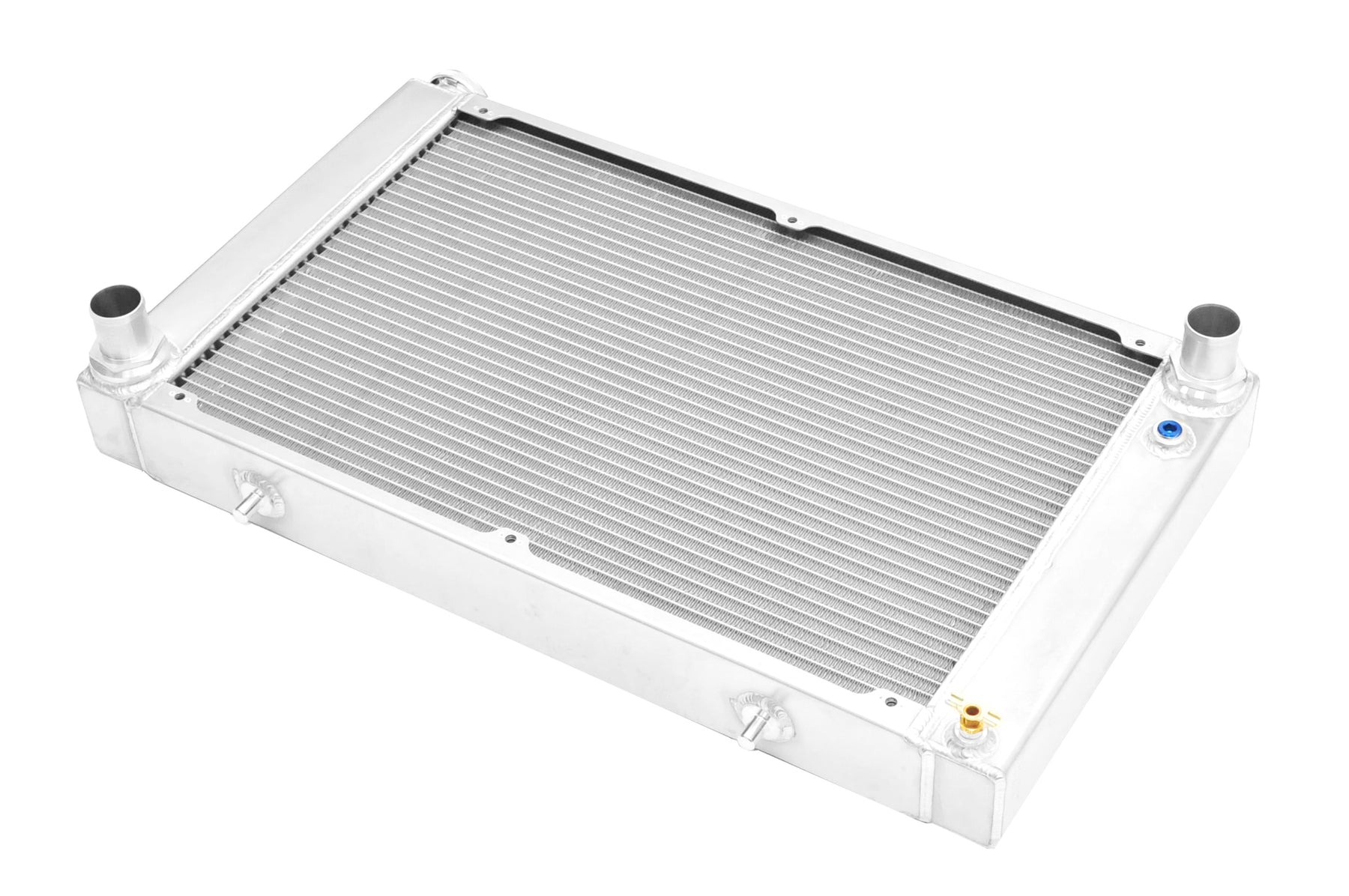

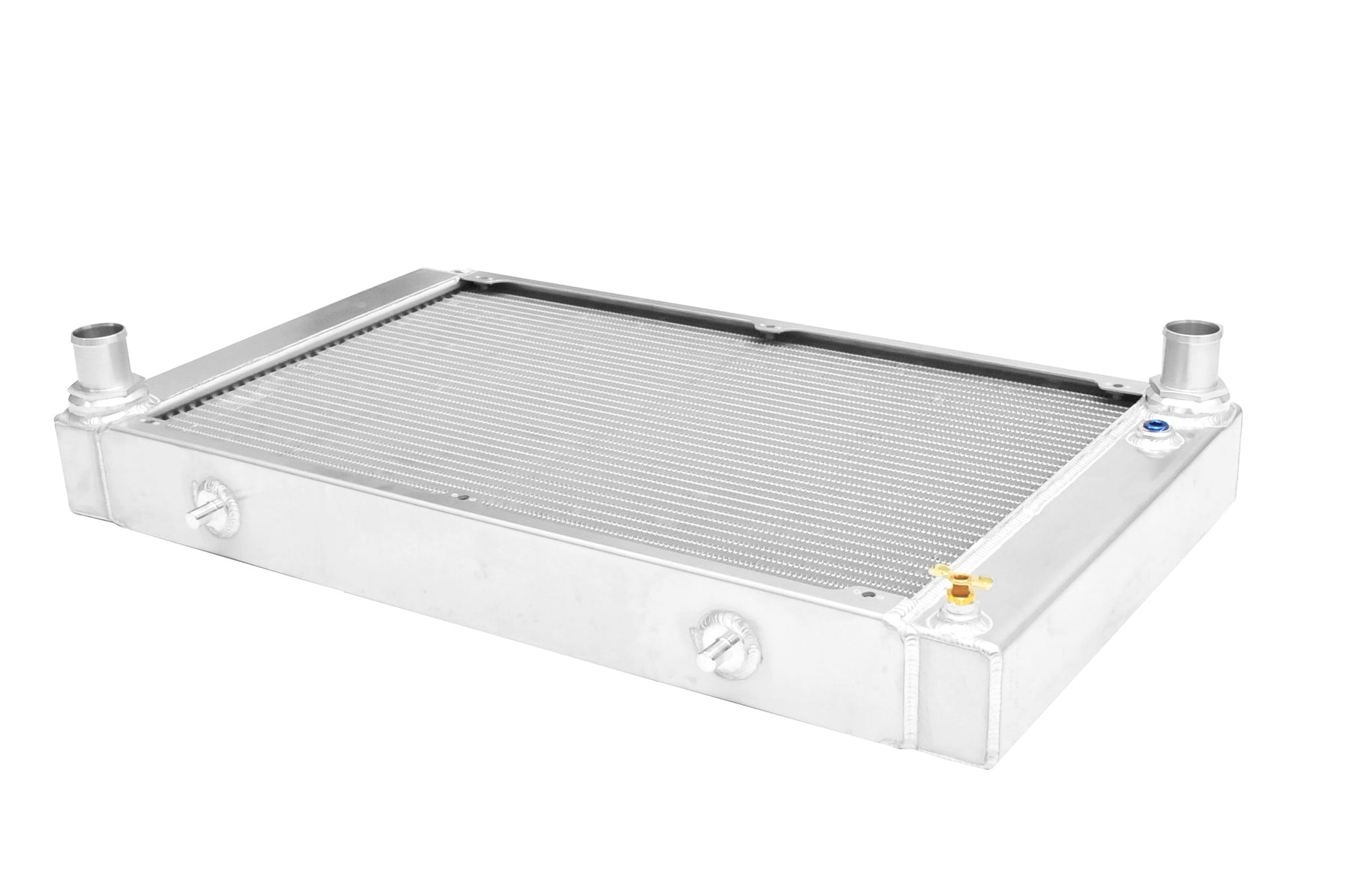

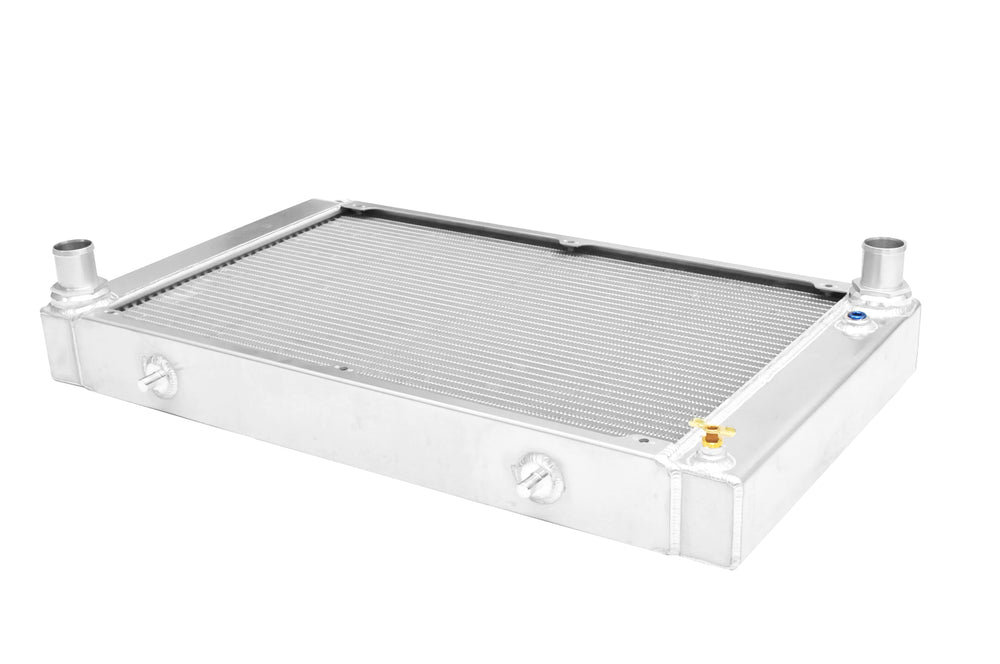

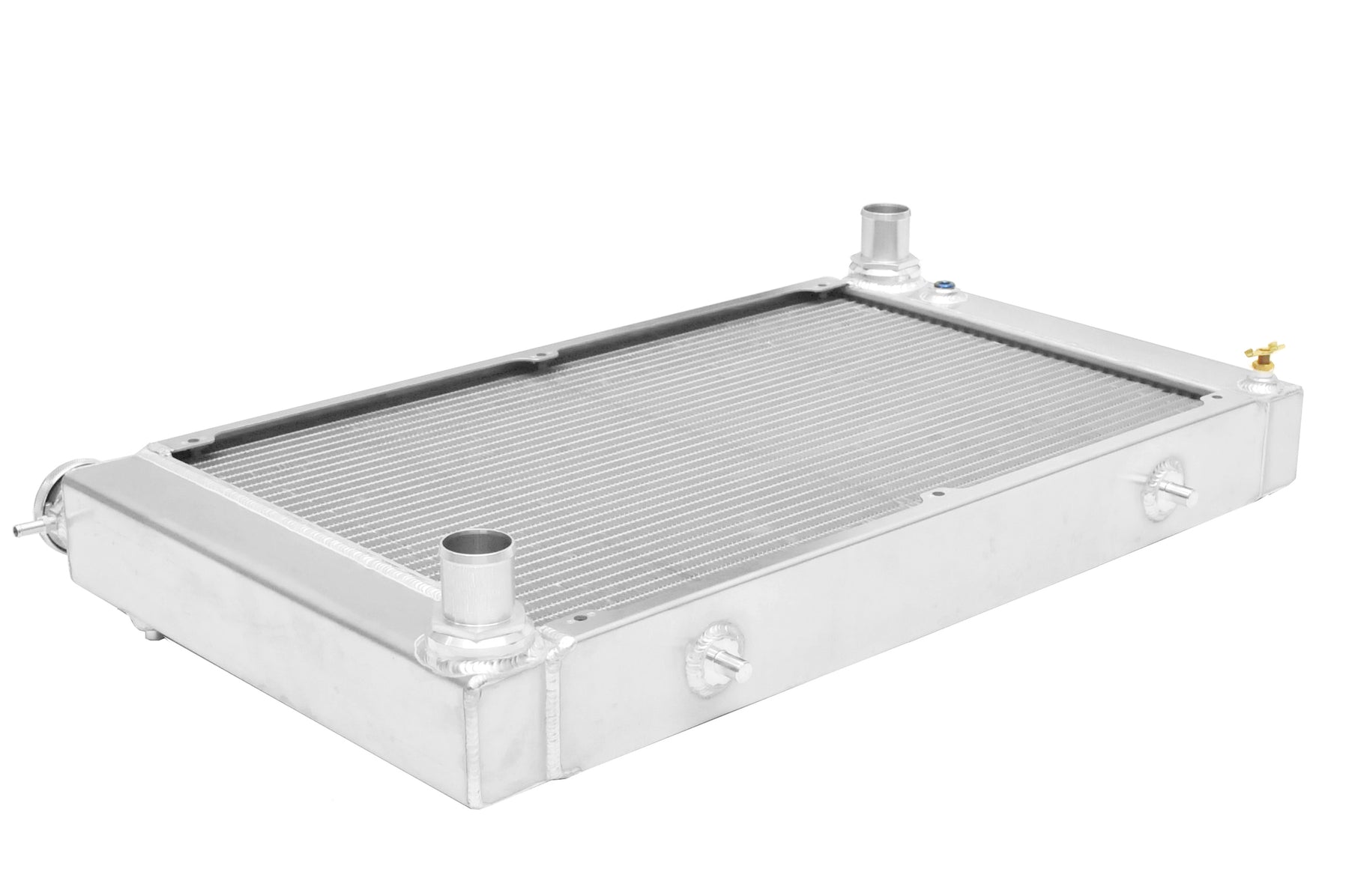

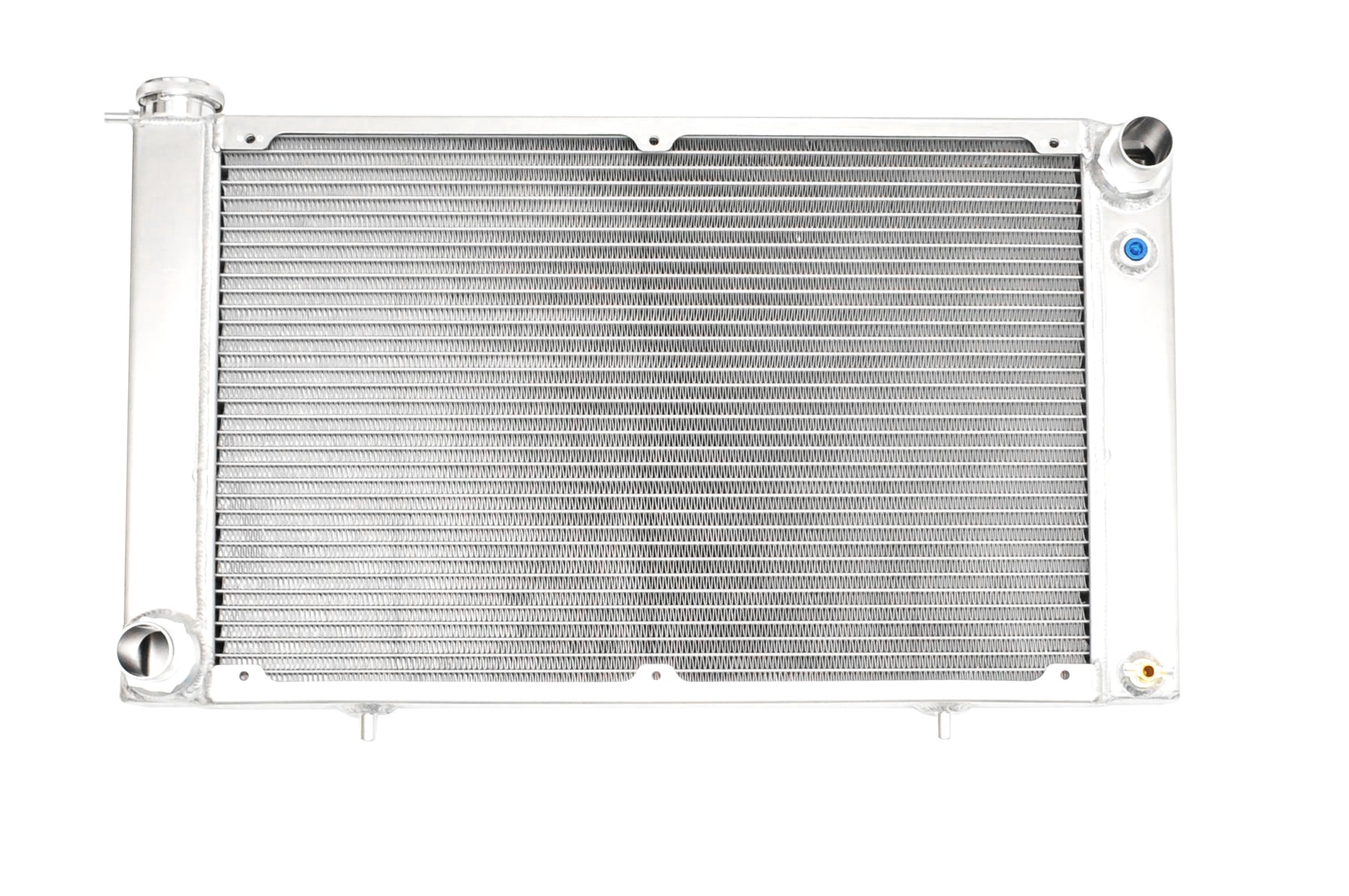

C&R Ford Mustang 1967-1970 Extruded Tube Crossflow Radiator SBF/BBF 25-10550 – C&R Racing part number 25-10550.
Fits: 1967-1970 Ford Mustang.
Abbreviations: SBF = small block Ford.
Mustang Radiator Crossflow 67-70 SBF/BBF. C&R Performance introduces a revolutionary advancement in cooling technology with our all-new extruded tube aluminum radiator that features a reinforced race fin design. C&R’s exclusive, reinforced race fin design is cross-braced for maximum strength and durability.
It features a unique shape for additional cooling with a hemmed leading edge for maximum durability. Our exclusive reinforced extruded tube allows C&R Performance aluminum radiators to have a 100 PSI burst rating, more than triple the burst pressure of any other performance aluminum radiator in the world.
Developed using our current F1 and NASCAR cooling technology, C&R extruded tube cores have unmatched performance. You too can now have the same cooling technology for the street as the top motorsports champions use week after week.
Details:
- Extruded Aluminum Tube
- Race fin that allows the fin more contact area to the coolant tube and more airflow thru the fin.
- Hemmed leading edge fin for stronger fin. Will not fold over as easy as regular fin cores.
- 100 psi burst pressure
- Unmatched Performance
Specifications
- Radiator style: Crossflow
- Number of passes: Single
- Core material: Aluminum
- Finish: Natural
- Tube size: 55mm
- Rows: 12
- Inlet size: 1.50 Inch
- Inlet location: Upper Passenger Side
- Outlet size: 1.75 Inch
- Outlet location: Lower Drivers Side
- Radiator cap: Yes
- Engine oil cooler included: No
- Power steering cooler included: No
- Transmission cooler: No
- LS steam line port: No
- Fans included: No
Compatible engines: Ford Engine, Ford V8, 289 Ford, 289HP Ford, 351C Ford, 351M Ford, 351W Ford, 5.0L Ford, Boss 302 Ford, Boss 351 Ford, 390 Ford, 429 Ford, Boss 429 Ford.
Product information
- C&R Racing part number: 25-10550
- Country of origin: USA
- Package size: 30 x 12 x 36 in
- Shipping weight: 25 lb
