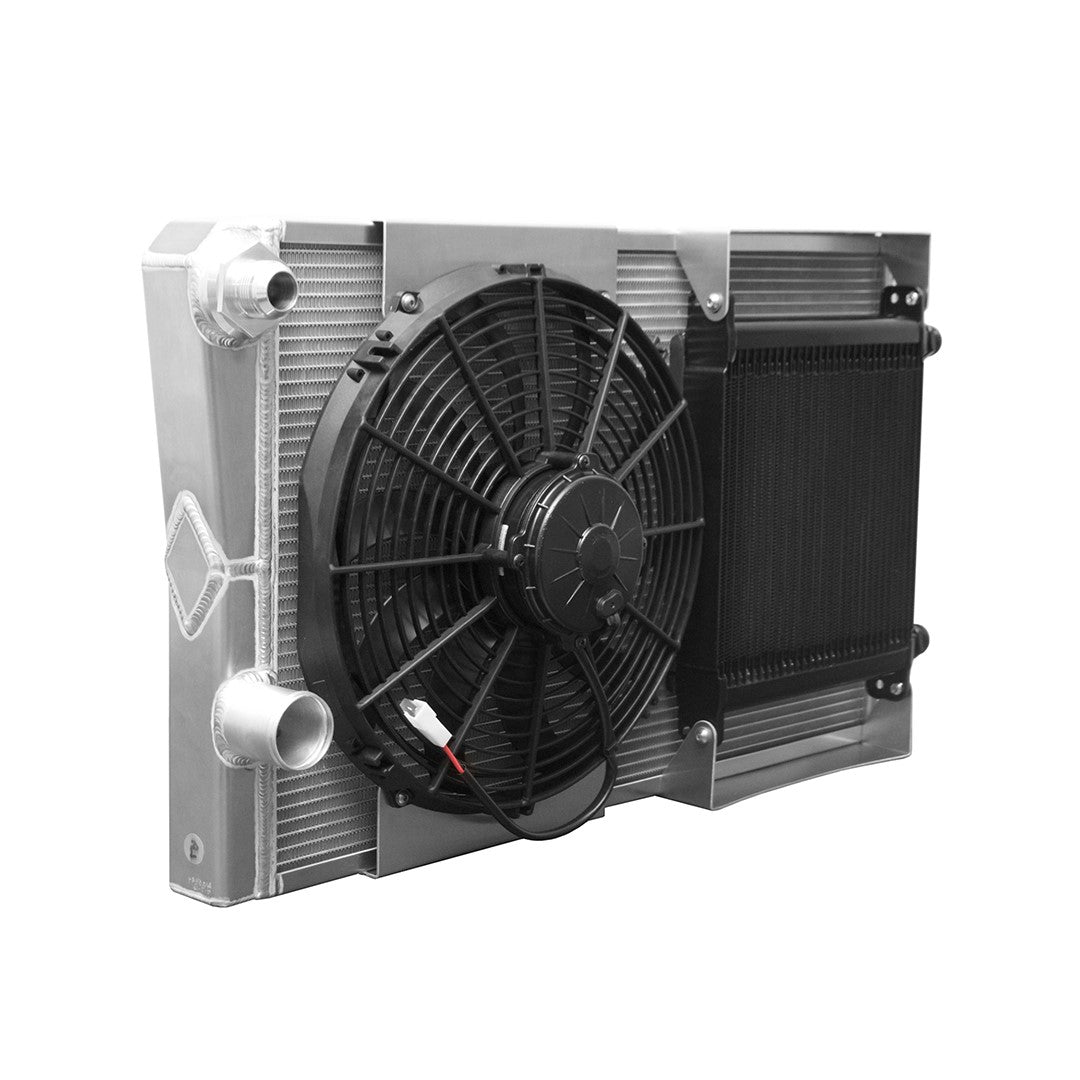

C&R Ford Late Model Radiator Module Closed 27.5" x 16.26" w/ 13" Fan & PWR Oil Cooler 948-28163

C&R Ford Late Model Radiator Module Closed 27.5" x 16.26" w/ 13" Fan & PWR Oil Cooler 948-28163 – C&R Racing part number 948-28163.

The Lightweight Late Model Package is built for Pavement Late Model Racing. This package is built with our Extruded Tube Radiator Core with a PWR Engine Oil Cooler and 13 inch SPAL Fan mounted behind the Radiator next to each other.

This package is available with or without a 9 inch SPAL Fan for the Engine Oil Cooler. For demanding applications and increased boiling points, this package can be used with our C&R Pressurized Water Kit.
Features:

• Radiator Module (Ford) Lightweight Late Model Ext.Tube Closed 27.5 Inch x 16.26 Inch 1-3/4 Inch Outlet w/PWR Oil Cooler and Spal 13 Inch Fan
• 27.5 inch x 16.26 inch - Ford Style
• PWR 28-Plate Oil Cooler
• 13 inch SPAL High-Performance Fan
• Specify Oil Cooler Fittings (sold separately)
• -20 AN Universal Port Inlet - Radiator
• 1-3/4 inch Standard Outlet - Radiator
• 1/4 inch Female NPT Fitting - Radiator
• Closed System

Specifications

• Radiator style: Crossflow
• Number of passes: Double
• Core material: Aluminum
• Finish: Natural
• Tube size: 42mm
• Rows: 10
• Inlet location: Upper Drivers Side
• Outlet size: 1.75 Inch
• Outlet location: Lower Drivers Side

Product information

• C&R Racing part number: 948-28163
• Country of origin: USA
• Package size: 25 x 8 x 34 in
• Shipping weight: 29 lb
