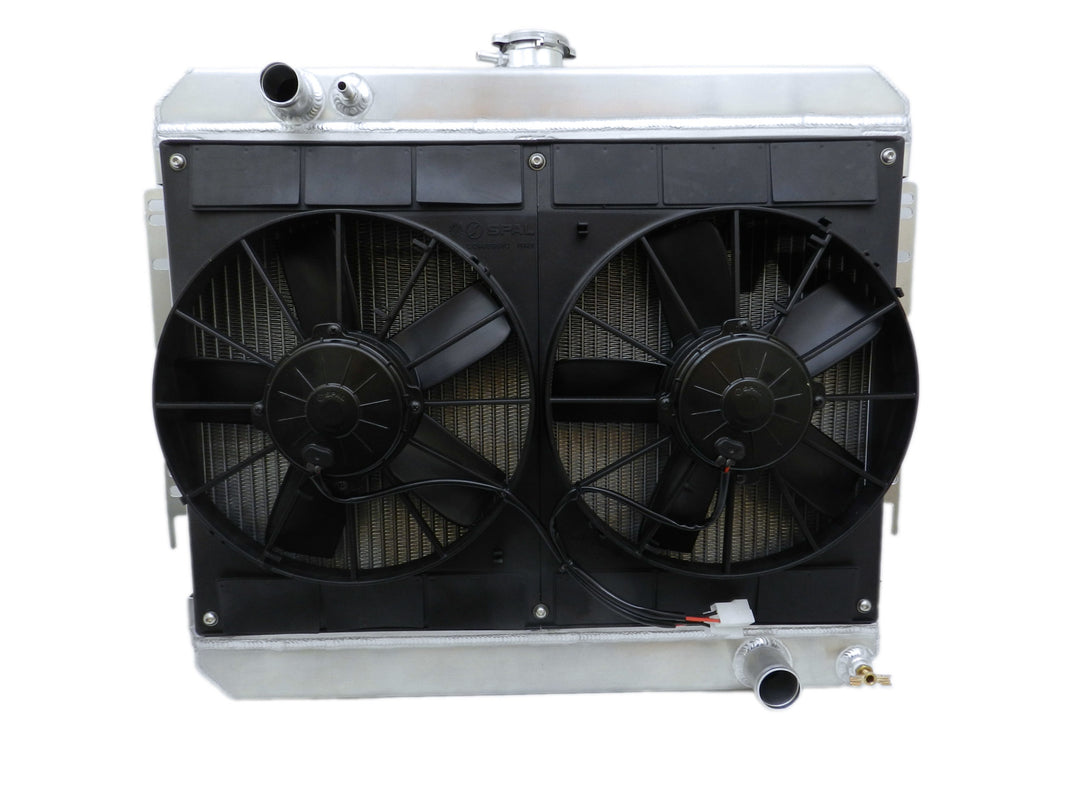

C&R Chevy Chevelle El Camino Module 1964-1965 LS Downflow w/ Dual 11" Fans 15-11230
15-11230
C&R Chevy Chevelle El Camino Module 1964-1965 LS Downflow w/ Dual 11" Fans 15-11230 – C&R Racing part number 15-11230.
Fits: 1964-1965 Chevrolet Chevelle; 1964-1965 Chevrolet El Camino.
Chevelle El Camino Module 64-65 LS Engine Downflow with Spal Dual 11 in Fans. CR Racing Aftermarket Radiator Modules are Made in the US using the latest aluminum core designs and manufacturing techniques for optimum cooling.
They are built by the finest metal fabricators and welders in the industry. Features such as Spal fans, unique fan mounting, exclusive upper soft mounting system really set C&R Racing apart from our competition.
Pro Touring and Track cars will really benefit from our 10 plate Engine Oil Cooler and Internal Power Steering Oil Cooler. Both of which is used in our NASCAR radiators.
Having these coolers mounted in the aftermarket radiator module not only makes for clean, simple packaging underneath the hood but will lower your oil temps better than any air to oil cooler, especially when using the GM LS engines.
Specifications
- Radiator style: Downflow
- Number of passes: Single
- Core material: Aluminum
- Finish: Natural
- Tube size: 1 Inch
- Rows: 2
- Inlet size: 1.25 Inch
- Inlet location: Upper Passenger Side
- Outlet size: 1.50 Inch
- Outlet location: Lower Passenger Side
- Radiator cap: Yes
- Engine oil cooler included: No
- Power steering cooler included: No
- Transmission cooler: No
- LS steam line port: Yes
- Fans included: Yes
- Fan quantity: 1
- Fan diameter: 11 in
- Maximum fan CFM: 2900
- Fan blade material: Plastic
- Fan used: IX-30102052
Compatible engines: GM Engine, GM V8, 4.8L GM, 5.3L GM, 6.0L GM, 6.2L GM, 7.0L GM, L33 GM, L59 GM, LM4 LSA GM, LQ4 GM, LQ9 GM, LS1 GM, LS2 GM, LS3 GM, LS4 GM, LS6 GM, LS7 GM, LS9 GM, LSX GM, LY6 GM.
Product information
- C&R Racing part number: 15-11230
- Country of origin: USA
- Package size: 24 x 13 x 38 in
- Shipping weight: 42 lb
