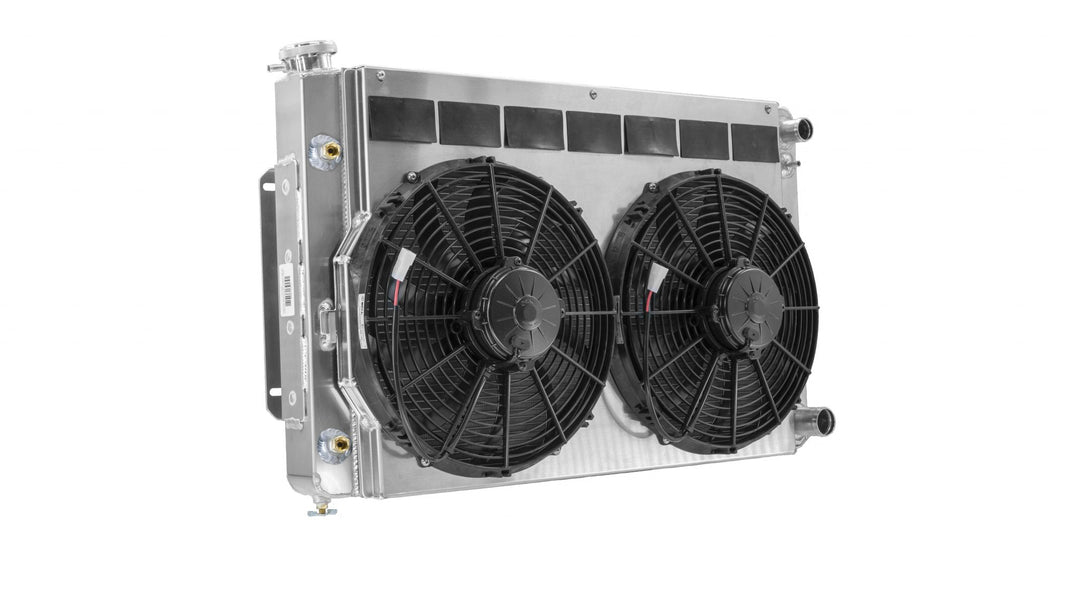

C&R Chevy Camaro/Firebird 1967-1969 LS 2-Pass Radiator Module w/ TOC & Dual 13" Fans 15-11031

C&R Chevy Camaro/Firebird 1967-1969 LS 2-Pass Radiator Module w/ TOC & Dual 13" Fans 15-11031 – C&R Racing part number 15-11031.

Fits: 1967-1969 Pontiac Firebird; 1967-1969 Chevrolet Camaro.

Abbreviations: TOC = transmission oil cooler.

CR's new line of Camaro radiators have taken cooling to a whole new level. From the engineered design and high-efficiency core built here at our facility to the custom aluminum shroud and largest possible Spal fans, your vehicle will have the most efficient, highest-performing cooling package on the market today.

CR radiators are designed and engineered for today's high HP applications using the many years of high-level racing experience and expertise we have here. Protect the most expensive part of your vehicle with the quality and performance of a CR radiator.
Features:

• Chevrolet Camaro Pontiac Firebird 1967-69 LS Double Pass Radiator Module w/TOC and Dual 13 Inch Spal Fans
• CR's new generation of Camaro radiators designed with our own CR built cores
• Handmade and Professionally Tig-welded in the USA/Indianapolis
• Designed for OE fit and installation. In most instances, our radiators are a true plug and play cooling solution.
• All CR Camaro radiators have been maximized with the most core face possible for the available space.
• Engineered cooling tube and R-fin technology designed specifically for street applications to achieve the most heat rejection
• Radiator modules have a custom aluminum shroud with the largest possible High-Performance Spal fans
• Radiator Style: Crossflow
• Number of Passes: Double
• Inlet Location: Upper Passenger Side
• Inlet Size: 1.25 Inch
• Outlet Location: Lower Passenger Side
• Outlet Size: 1.50 Inch

Specifications

• Core material: Aluminum
• Finish: Natural
• Tube size: 55mm
• Rows: 2

Compatible engines: L33 GM, L59 GM, LM4 LSA GM, LQ4 GM, LQ9 GM, LS1 GM, LS2 GM, LS3 GM, LS4 GM, LS6 GM, LS7 GM, LS9 GM, LSX GM, LY6 GM.

Product information

• C&R Racing part number: 15-11031
• Country of origin: USA
• Package size: 24 x 13 x 38 in
• Shipping weight: 48 lb
