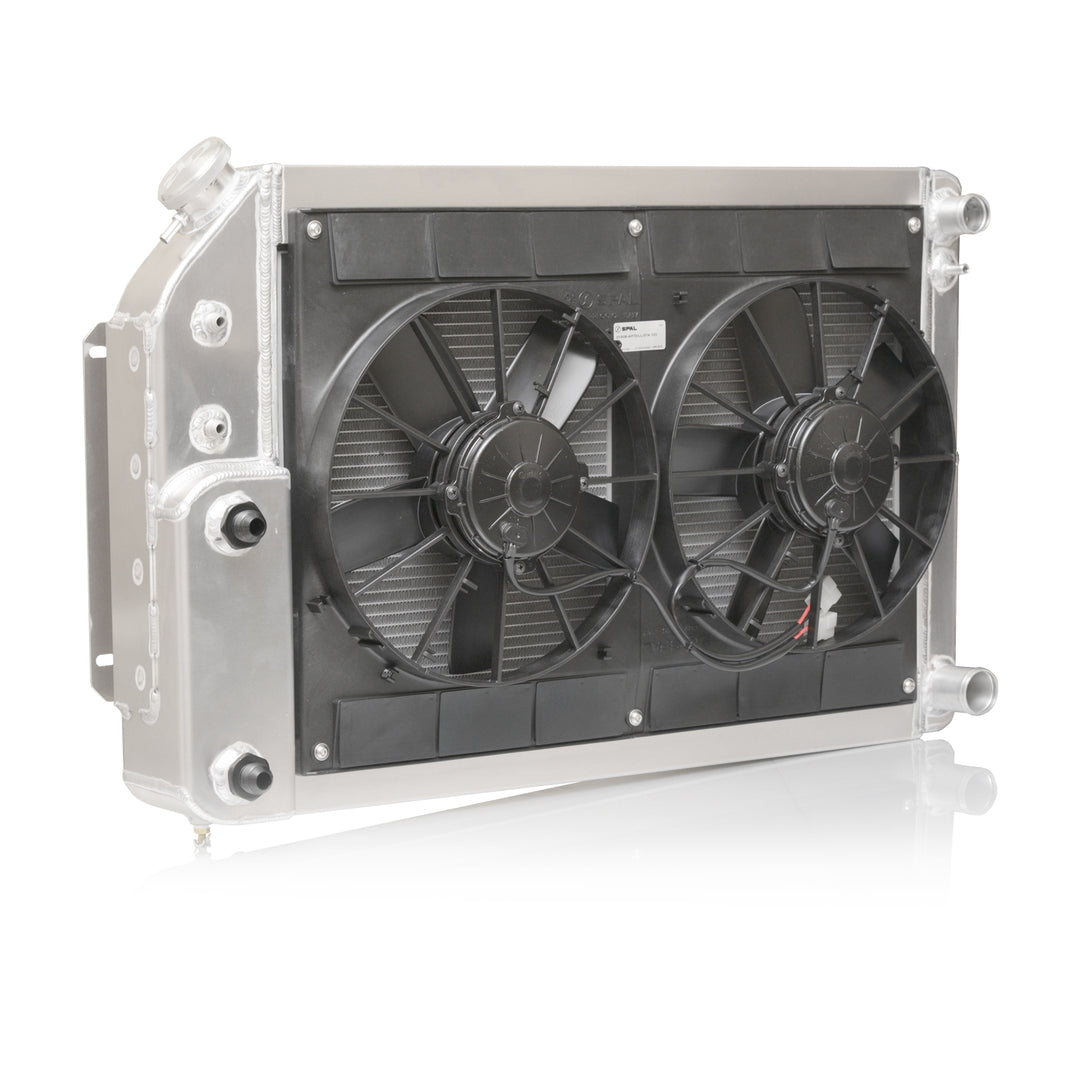

C&R Chevy Camaro/Firebird 1967-1969 2-Pass Radiator Module LS - EOC, PSC & Dual 11" Fans 15-11014
15-11014
C&R Chevy Camaro/Firebird 1967-1969 2-Pass Radiator Module LS - EOC, PSC & Dual 11" Fans 15-11014 – C&R Racing part number 15-11014.
Abbreviations: EOC = engine oil cooler; PSC = power steering cooler.
Camaro Firebird Radiator 67-69 2 Pass LS 13 plate aluminum PWR Engine Oil Cooler, Power Steering Cooler. C&R OE Fit Aftermarket Radiators are Made in the US using 55 MM extruded tube core with burst pressures of up to 100 PSI. They are built by the finest metal fabricators and welders in the industry and most are OE. . It comes with the billet cap and LS steam kit
Bolts to the stock core support.
Specifications
- Radiator style: Crossflow
- Number of passes: Double
- Core material: Aluminum
- Finish: Natural
- Tube size: 4mm
- Rows: 12
- Inlet size: 1.25 Inch
- Inlet location: Upper Passenger Side
- Outlet size: 1.50 Inch
- Outlet location: Lower Passenger Side
- Radiator cap: Yes
- Engine oil cooler included: Yes
- Power steering cooler included: Yes
- Transmission cooler: No
- LS steam line port: Yes
- Fans included: Yes
- Fan quantity: 1
- Fan diameter: 11 in
- Maximum fan CFM: 2900
- Fan blade material: Plastic
- Fan used: IX30102052
Compatible engines: GM Engine, GM V8, 4.8L GM, 5.3L GM, 6.0L GM, 6.2L GM, 7.0L GM, L33 GM, L59 GM, LM4 GM, LM4 LSA GM, LQ4 GM, LQ9 GM, LS1 GM, LS2 GM, LS3 GM, LS4 GM, LS6 GM, LS7 GM, LS9 GM, LSA GM, LSX GM, LY6 GM.
Product information
- C&R Racing part number: 15-11014
- Country of origin: USA
- Package size: 24 x 13 x 38 in
- Shipping weight: 48 lb
