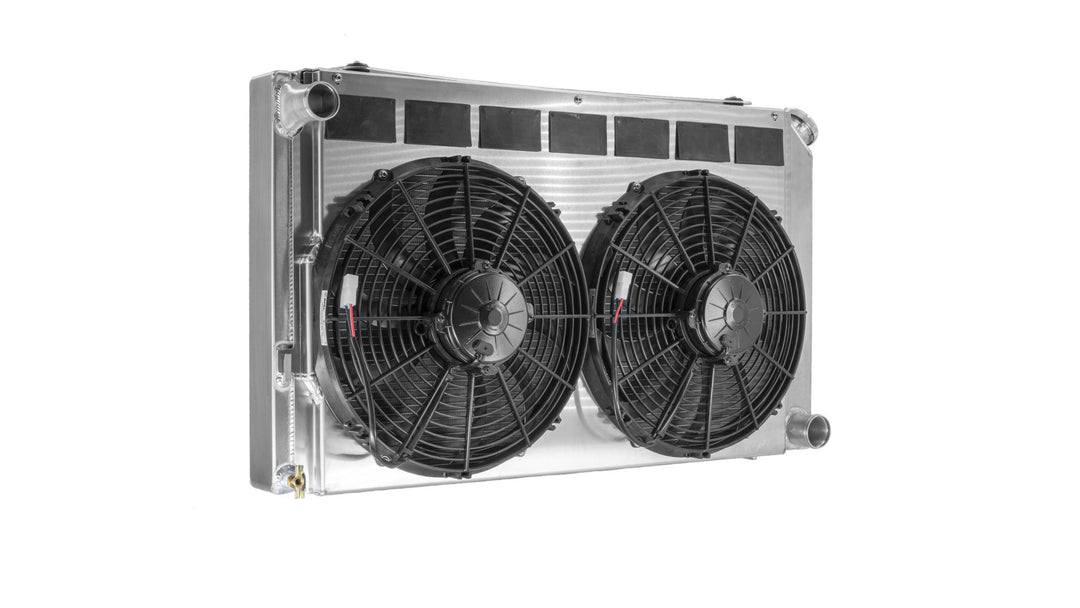

C&R Chevy Camaro 1970-81 & Firebird 1970-74 SB/BB 1-Pass Radiator Module w/ Dual 13" Fans 15-00010

C&R Chevy Camaro 1970-81 & Firebird 1970-74 SB/BB 1-Pass Radiator Module w/ Dual 13" Fans 15-00010 – C&R Racing part number 15-00010.

Fits: 1970-1981 Chevrolet Camaro; 1970-1981 Pontiac Firebird.

Abbreviations: SB/BB = small block/big block.

CR's new line of Camaro radiators have taken cooling to a whole new level. From the engineered design and high-efficiency core built here at our facility to the custom aluminum shroud and largest possible Spal fans, your vehicle will have the most efficient, highest-performing cooling package on the market today.

CR radiators are designed and engineered for today's high HP applications using the many years of high-level racing experience and expertise we have here. Protect the most expensive part of your vehicle with the quality and performance of a CR radiator.
Features:

• Chevrolet Camaro 1970-81 Pontiac Firebird 1970-74 SB/BB Single Pass Radiator Module w/ Dual 13 Inch Spal Fans
• CR's new generation of Camaro radiators designed with our own CR built cores
• Handmade and Professionally Tig-welded in the USA / Indianapolis
• Designed for OE fit and installation. In most instances, our radiators are a true plug and play cooling solution.
• All CR Camaro radiators have been maximized with the most core face possible for the available space.
• Engineered cooling tube and R-fin technology designed specifically for street applications to achieve the most heat rejection
• Radiator modules have a custom aluminum shroud with the largest possible High-Performance Spal fans
• Radiator Style: Crossflow
• Number of Passes: Single
• Inlet Location: Upper Drivers Side
• Inlet Size: 1.50 Inch
• Outlet Location: Lower Passenger Side
• Outlet Size: 1.75 Inch

Specifications

• Core material: Aluminum
• Finish: Natural
• Tube size: 55mm
• Rows: 2

Compatible engines: 283 GM, 302 GM, 327 GM, 350 GM, 396 GM, 400 GM, 409 GM, 427 GM, 454 GM, 502 GM, 572 GM.

Product information

• C&R Racing part number: 15-00010
• Country of origin: USA
• Package size: 24 x 13 x 38 in
• Shipping weight: 42 lb
