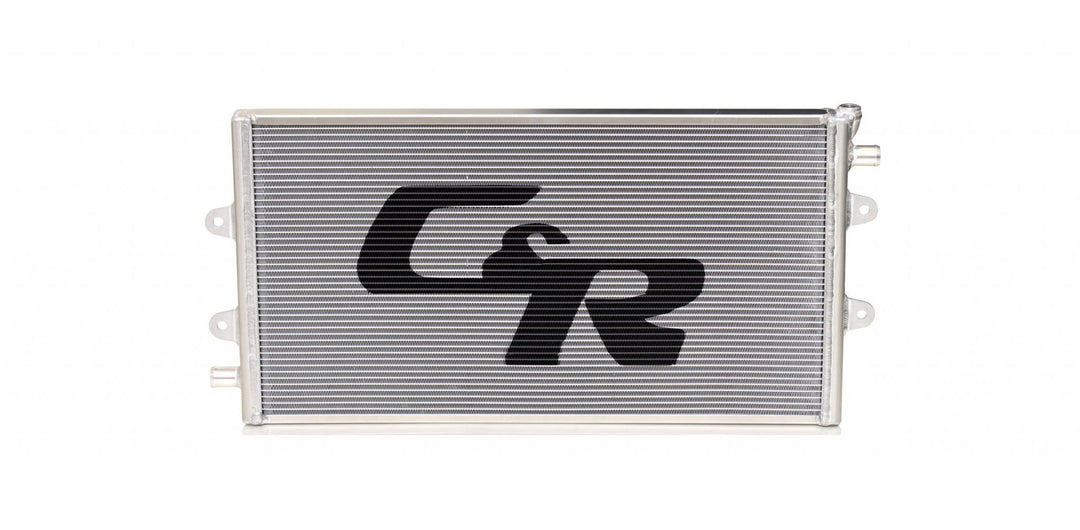

C&R Cadillac CTS-V 2016 Primary Heat Exchanger 56-00016 – C&R Racing part number 56-00016.
The C&R 2016 CTS-V heat exchanger mounts in the stock location, using factory hoses and clamps. Using 27mm race core, same core we used in NASCAR radiators, it will keep the intake air temps (IAT'S) lower. Compressing air will increase the air temperature. Cooling it allows for a more dense charge. You can feel the extra power. This is a must have part for increased boost levels and in hot climates. Will keep ECM from going into limp mode due to high IAT's. CAD design using factory data for a perfect fit.
- 27mm race core
- No modifications required
- Uses factory hoses and clamps
- Uses factory mounting hardware
- Must have part for increased boost or hot climates
- Easy upgrade for any 2016- CTS-V
Specifications
- Radiator style: Crossflow
- Number of passes: Single
- Core material: Aluminum
- Finish: Natural
- Tube size: 27mm
- Radiator cap: No
- Engine oil cooler included: No
- Power steering cooler included: No
- Transmission cooler: No
- LS steam line port: No
- Fans included: No
Compatible engines: GM Engine, GM V8, LT4 GM.
Product information
- C&R Racing part number: 56-00016
- Country of origin: USA
- Package size: 18 x 10 x 36 in
- Shipping weight: 18 lb
