Cable Shifter For An Atlas 2 Or 4 Speed Transfer Case (fits all units built after 5/1/12)
This shifter fits the transfer cases built after May 1 2012; the design of the cable connections to the Atlas was updated for an easier installation. The easy way to tell whether you need this kit or you need PN303009A is by looking at the shift rails coming out of the Atlas transfer case, if they have a hole drilled on the end of them, then this is the correct kit. If the shift rail is solid on the end then you need the earlier version. This cable shifter comes with 72" long cables.

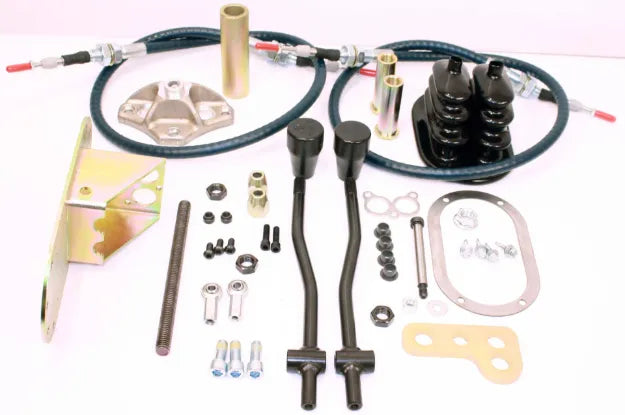

What's Included
- Base- Atlas Twin Stick Mount (Part# 302051)
- Boot- Twin Stick (Part# 302060)
- Atlas Logo For New Knobs (Part# 302061)
- Boot Ring- Atlas Twin Stick (Part# 302063)
- Stud Bolt 1/2 -13 X 7 B7 (Part# 302080)
- Knob- Bulk With Sticker Recess (Part# 302083)
- Shifter Sticker - Atlas Rev Pattern (H-N-L) (Part# 302084)
- Serrated-Flange Hex Locknut 1/2 - 13 zinc (Part# 303120)
- Nut-1/2-13 HX Jam Black Zinc (Part# 303121)
- Housing- Atlas Twin Stick Shifter (Part# 303301)
- Lever- Atlas Twin Stick Cable Shifter (Part# 303304)
- Bracket- Atlas Shift Cable (Part# 303307)
- Cable-Atlas Shifter 72 Length 1 Travel (Part# 303310)
- Bolt- Shoulder 3/8 Dia. 5/16 Th x 3 shoulder l. (Part# 303310A)
- Bushing- Igus 3/8 (Part# 303312)
- Rod End- Female 1/4 -28 (Part# 303313)
- Nut- Atlas Cable Retainer Outer (Part# 303316)
- Nut- Cable Shifter- Jam 1/4-28 (Part# 303317)
- Tube- Atlas Shifter Extension 4.25 (Part# 303325)
- Bolt- 1/4 -28 X 1 S.H.C.S. black oxide (Part# 340617)
- 1/4 USS Flat Washer Pltd. (Part# 722523)
- Screw-Tek Hex Self Drilling W/Neo #10- 16 X 1 (Part# 722546)
- 5/16 -18 NYLOC Hex Nut (Part# 723141)
- Bolt 3/8 -16 X 1.00" SHCS Zinc (Part# 723731)
