Branik Legacy / Wilwood Chevy Kingpin Dana 60 Big Brake Kit — 4 or 6 Piston

The Branik Legacy / Wilwood Chevy Kingpin Dana 60 Big Brake Kit makes it easy to put lightweight racing brakes on your Ultra 4 car, rock crawler, or trail rig. Fits single rear wheel Chevy Kingpin 8x6.5 applications only. Saves approximately 80 pounds over the stock brake setup.

Requires 17" wheels minimum. Racing and off-road use only — not for street use.

The 6061 aircraft grade aluminum rotor hats are specially machined for this setup with a flat bolt-on caliper bracket, then hard coat anodized red. Rotors are laser cut mild steel, CNC machined with holes and slotting. The brake hat assembles like a factory brake rotor, behind the hub — press studs through the back of the hat into the hub.

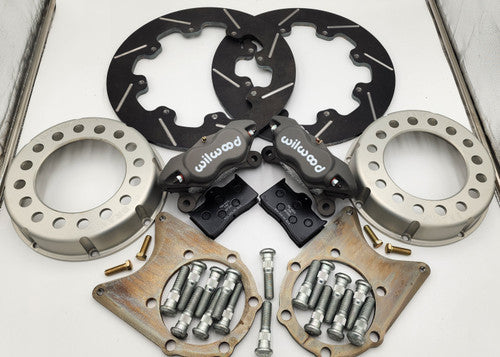

The standard kit includes two 14" rotors, two rotor hats, sixteen rotor to hat bolts, left and right four piston Wilwood calipers (Wilwood P/N 1206818), brake pads (Wilwood P/N 150-8850K), left and right caliper brackets, four caliper bracket bolts, and sixteen wheel studs.

The six piston upgrade replaces the four piston calipers with left and right Wilwood Dyna Pro 6 piston calipers and one set of 6 piston Wilwood rock crawler/street pads (Wilwood P/N 150-Q-6712K).

SKU: LGCY-CHEV-BO-BK-4P (4 Piston) | LGCY-CHEV-BO-BK-6P (6 Piston Upgrade) | Skinny Pedal Racing is an Authorized Branik Motorsports Dealer
