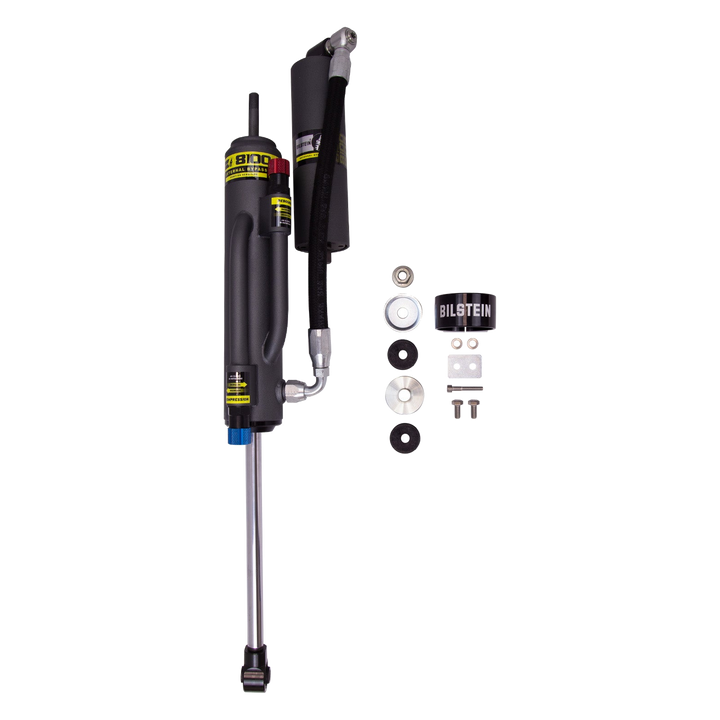

Bilstein B8 8100 Bypass Rear Right Shock 2005-2023 Toyota Tacoma 0-1.5" Lift 25-320459 – Bilstein part number 25-320459.
This Bilstein B8 8100 Bypass rear right shock is made for the 2005-2023 Toyota Tacoma. Intended lift height: 0-1.5 in. Specs: 9.69 in of travel, 14.25 in collapsed, 23.94 in extended.
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Details:
- Position: Rear Right
- Lift height: 0-1.5" lift
- Travel: 9.69 in
- Extended length: 23.94 in
- Collapsed length: 14.25 in
- Upper mount: Stem
- Lower mount: Eye 12mm
- Body diameter: 2.65 in
- Piston diameter: 60mm
- Shaft diameter: 18mm
- Reservoir: Yes
- Damping: Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Internal design: Monotube
- Finish: EVO Grey
- Country of origin: USA
Fitment:
- Toyota Tacoma 2005-2023
- Note: Fits Vehicles With 0-1.5" Rear Lift
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 25-320459
- Sold individually (price is for one shock)
- Shipping weight: 19.6 lb
