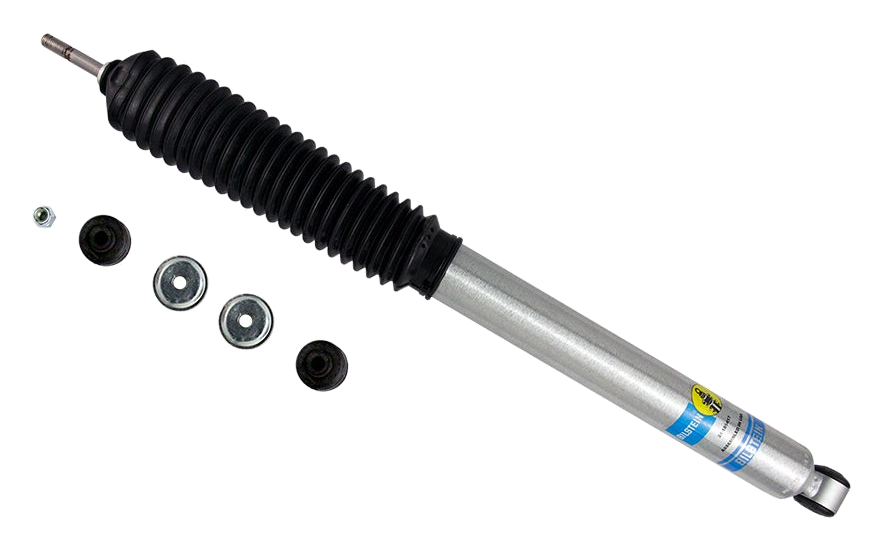

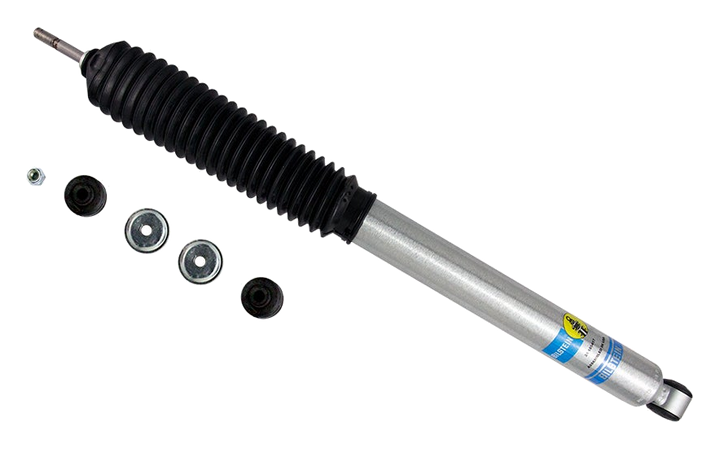

Bilstein B8 5100 Rear Shock 1997-2003 Ford F-150 24-185417 – Bilstein part number 24-185417.
This Bilstein B8 5100 rear shock is made for the 1997-2003 Ford F-150. Specs: 10.94 in of travel, 16.38 in collapsed, 27.32 in extended.
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Details:
- Position: Rear
- Travel: 10.94 in
- Extended length: 27.32 in
- Collapsed length: 16.38 in

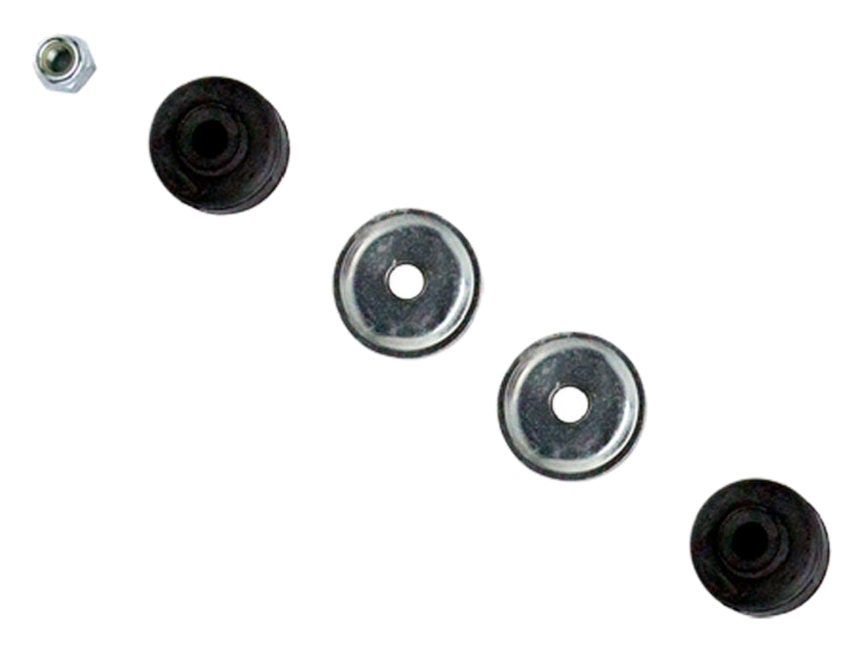

- Upper mount: Stem
- Lower mount: Eye 12mm
- Body diameter: 2.0 in
- Piston diameter: 46mm
- Shaft diameter: 14mm
- Reservoir: No
- Damping: Non-Adjustable
- Internal design: Monotube
- Boot: Black Bellows
- Finish: Zinc Plated
- Country of origin: Mexico
Fitment:
- Ford F-150 1997-2003, F-150 Heritage 2004
- Note: Fits Vehicles With 0-2" Rear Lift
- Note: Fits Vehicles With 4-5" Rear Lift
- Note: Fits Vehicles With 0-2" Rear Lift;With Light Duty Suspension (5-lug wheels)
- Note: Fits Vehicles With 4-5" Rear Lift;With Light Duty Suspension (5-lug wh
Always confirm fitment for your exact year, drivetrain and lift height before ordering.
Product information
- Bilstein part number: 24-185417
- Sold individually (price is for one shock)
- Shipping weight: 5.7 lb
