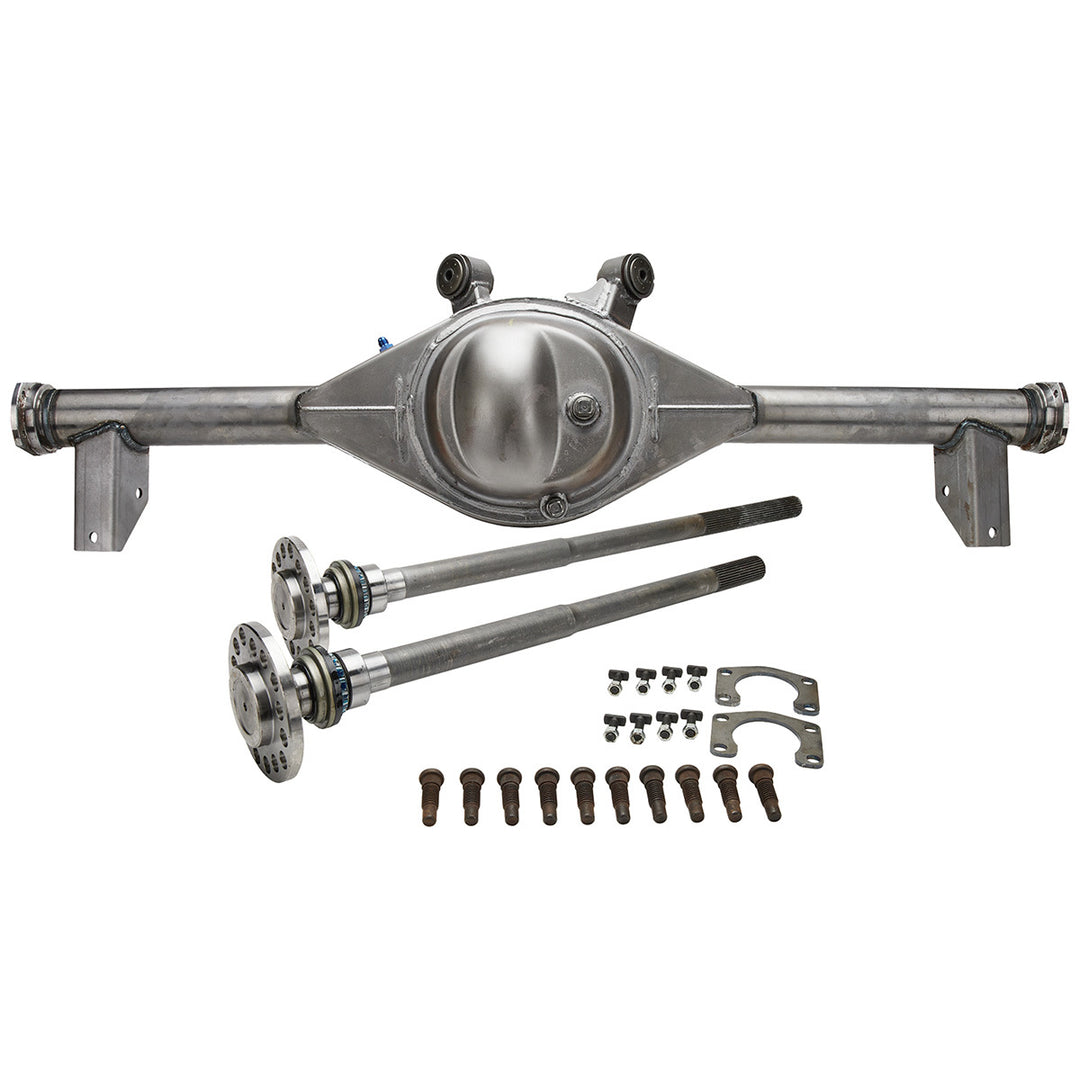

Allstar Rear Axle Housing Ford 9" 58" Wide Offset 5 x 4.5 / 5 x 4.75 3" Tubes Mounts Kit ALL68758

Allstar Rear Axle Housing Ford 9" 58" Wide Offset 5 x 4.5 / 5 x 4.75 3" Tubes Mounts Kit ALL68758 – Allstar Performance part number ALL68758.

Full product name: Rear Axle Housing Ford 9" 58" Wide Offset 5 x 4.5 / 5 x 4.75 3" Tubes Mounts Included Solid Axles Steel Natural GM G-Body 1978-88 Kit

Ford 9 Inch Flanged Axle Housing Kit for GM Intermediate Metric Chassis. Housing kit fits the 1978-88 GM intermediate chassis.

Replace a stock GM 7.5 Inch rear-end with the much stronger Ford 9 Inch style. Kit includes a new fabricated center section, new axle tubes with large bearing late Ford/Torino style-ends, 31-spline axles with bearings and seals installed, drilled for studs with 5 on 4-1/2 Inch or 5 on 4-3/4 Inch bolt circles.

Choose from two widths, 58 Inch and 60 Inch axle flange to axle flange. Ford 9 Inch Housing Kit 58 Inch With Trailing Arm Brackets. Trailing arm mounting brackets installed to position the pinion angle approximately 4 Degree down.

Note: this kit includes two unequal length axles, locating the pinion approximately in stock (centered) location.

Details:

• Fits: GM G-Body Intermediate Metric 1978-88
• Finish: Natural
• Size: 3 Inch Axle Tubes
• Color: Natural
• Spline Count: 31 Spline
• Overall Length: 58 Inch
• Ring Gear Diameter: 9 Inch
• Bolt Pattern: 5 x 4.50 Inch, 5 x 4.75 Inch
• Degree Angle: 4 Degree
• Material: Steel
• Sold As: Kit

Application Notes:

• GM G-Body Intermediate Metric Chassis 1978-88

Product information

• Allstar Performance part number: ALL68758
• Country of origin: USA
• Package size: 60 x 13.5 x 8 in
• Shipping weight: 94.6 lb
