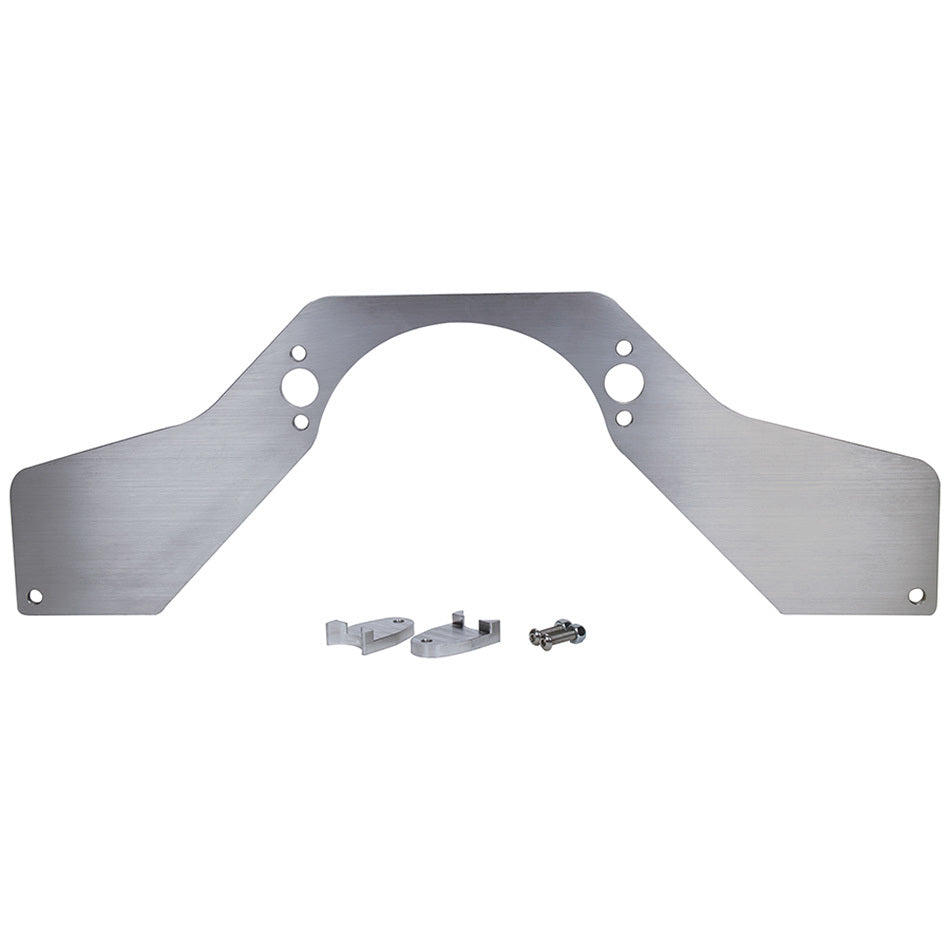

Allstar Motor Plate Front 24.25 x 8.5 x 0.25" Aluminum Natural Small Block Chevy ALL38142

Allstar Motor Plate Front 24.25 x 8.5 x 0.25" Aluminum Natural Small Block Chevy ALL38142 – Allstar Performance part number ALL38142.

Universal width engine plate includes separate frame saddles for the motor plate to rest on allowing installation of engine into any width dragster style chassis. Saddles feature machined flats which allow the engine plate to rest directly on the saddle securing the motor plate between the saddle and the existing frame mounting tab.

Plate is 1/4 Inch thick and includes saddles for chassis up to 1-3/8 Inch in diameter. Fits small block Chevy.

Note: Drilling will be required to fasten saddles and engine plate to existing frame mounts once plate is positioned on frame.

Details:

• Finish: Natural
• Color: Natural
• Engine Type: Small Block Chevy
• Location: Front
• Thickness: 1/4 Inch
• Material: Aluminum
• Sold As: Each

Application Notes:

• Small Block Chevy, Universal Width Dragster Style Chassis Up To 1-3/8 Inch Diameter Tubing

Product information

• Allstar Performance part number: ALL38142
• Country of origin: USA
• Package size: 27.65 x 19.25 x 2.5 in
• Shipping weight: 3.66 lb
