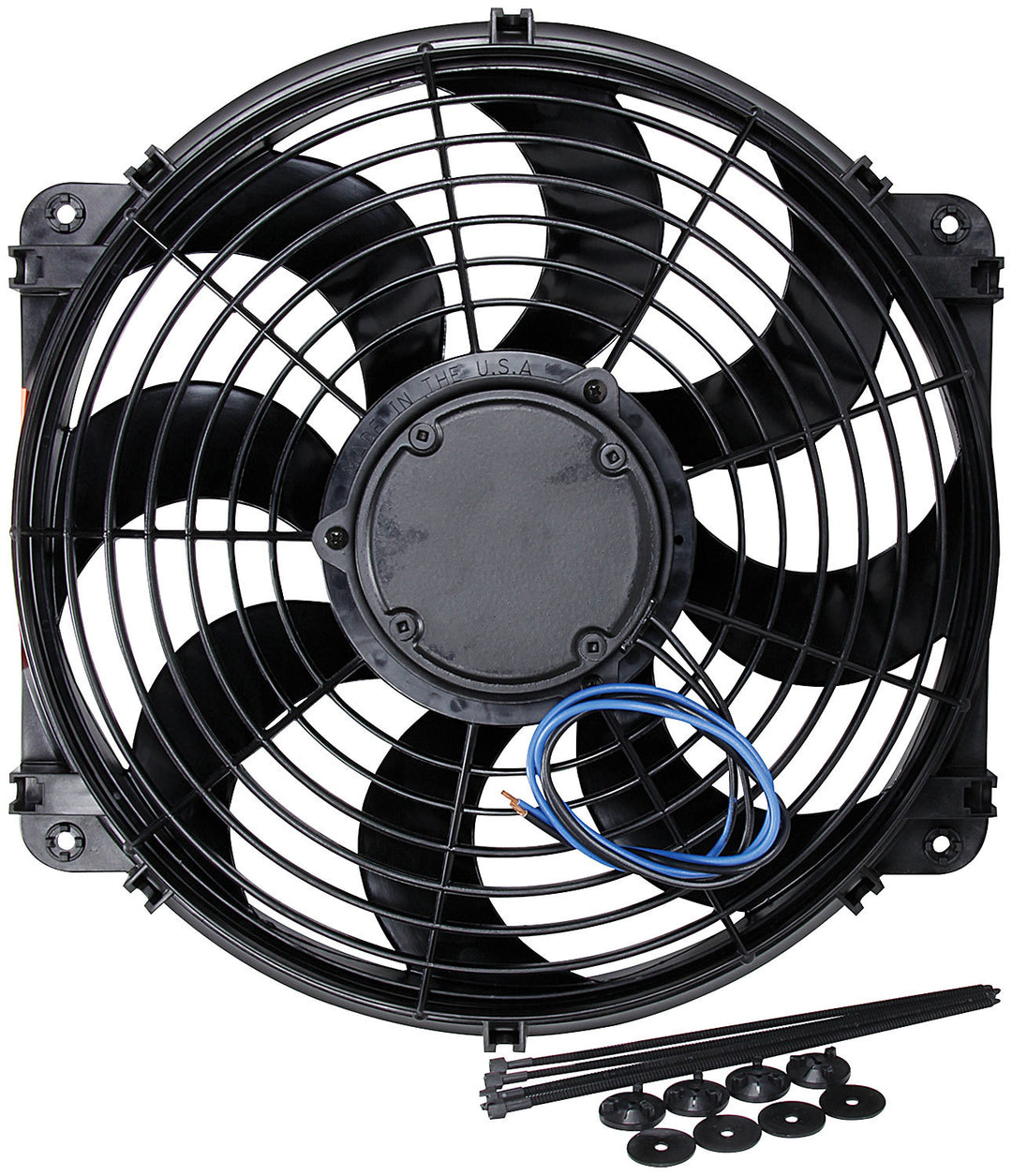

Allstar Electric Cooling Fan 14" Fan Push / Pull 1530 CFM 12V Curved Blade Kit ALL30074

Allstar Electric Cooling Fan 14" Fan Push / Pull 1530 CFM 12V Curved Blade Kit ALL30074 – Allstar Performance part number ALL30074.

Full product name: Electric Cooling Fan 14" Fan Push / Pull 1530 CFM 12V Curved Blade 13.75 x 14.625" 3.75" Thick Plastic Kit

Curved Blade Electric Fans. Electric fans require very little amperage and are suitable for use in a race car or tow vehicle. Fans are set up as puller units, mounted behind the radiator.

By flipping blades, reversing wires, and mounting in front of the radiator, fans will operate in pusher configuration. Each unit includes a mounting kit.

13 Inch blade diameter, 1530 CFM rating, 9.0 amp draw, 13-3/4 Inch x 14-5/8 Inch housing with a 3-3/4 Inch housing depth. Mounting distance A is 12-1/2 Inch and mounting distance B is 8-7/8 Inch.

Details:

• Outside Diameter: 13 Inch
• Size: 13-3/4 Inch x 14-5/8 Inch Housing
• Amp: 9 Amp
• Volts: 12 Volts
• Thickness: 3-3/4 Inch
• Capacity: 1530 CFM
• Material: Plastic
• Mount Style: Push Or Pull
• Sold As: Kit

Application Notes:

• Race Cars And Tow Vehicles

Product information

• Allstar Performance part number: ALL30074
• Country of origin: USA
• Package size: 17.7 x 16.4 x 4.1 in
• Shipping weight: 5.43 lb
