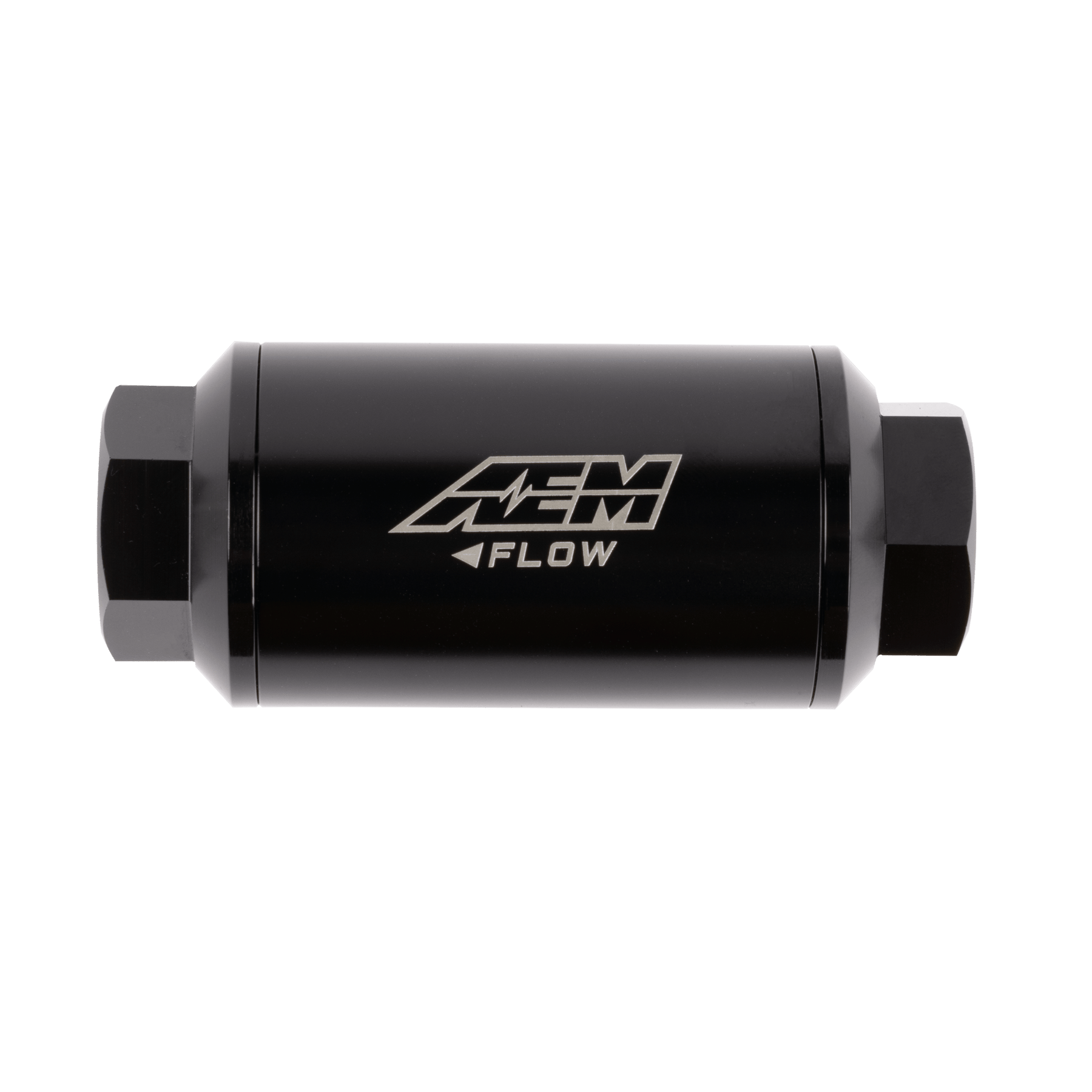

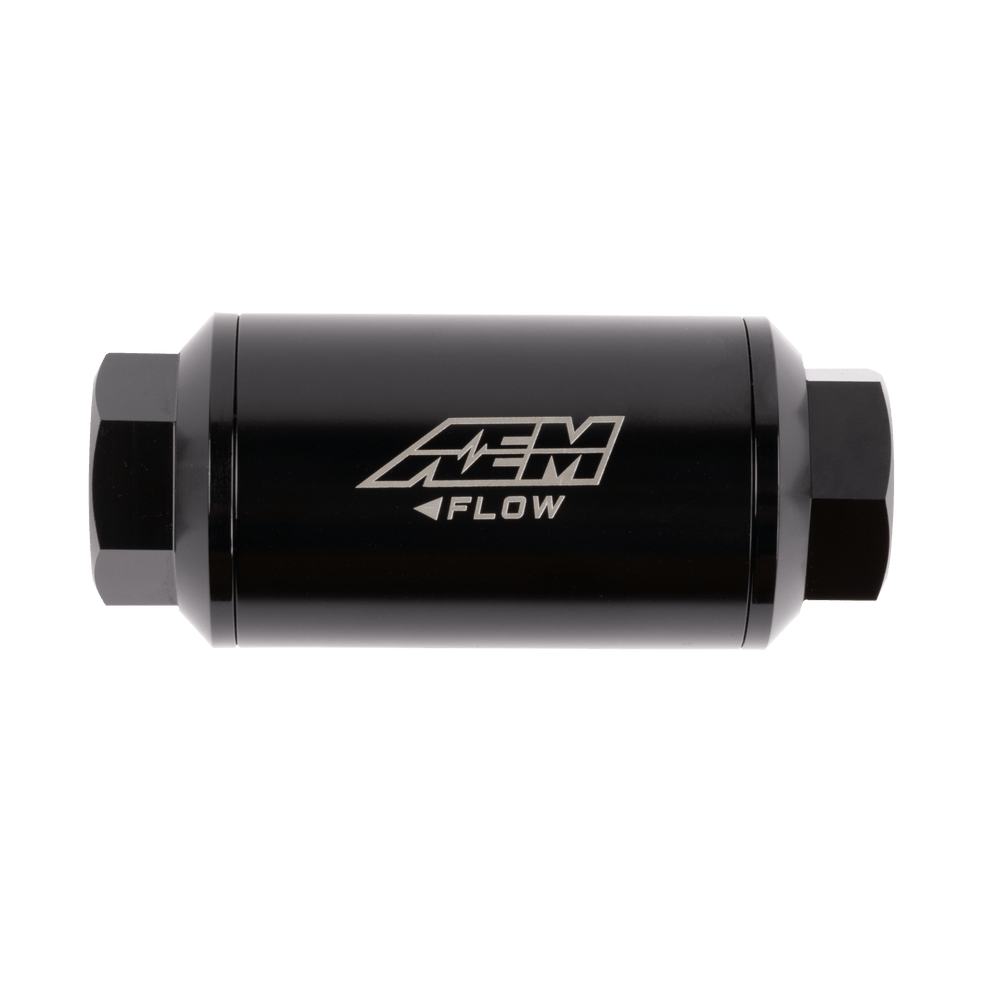

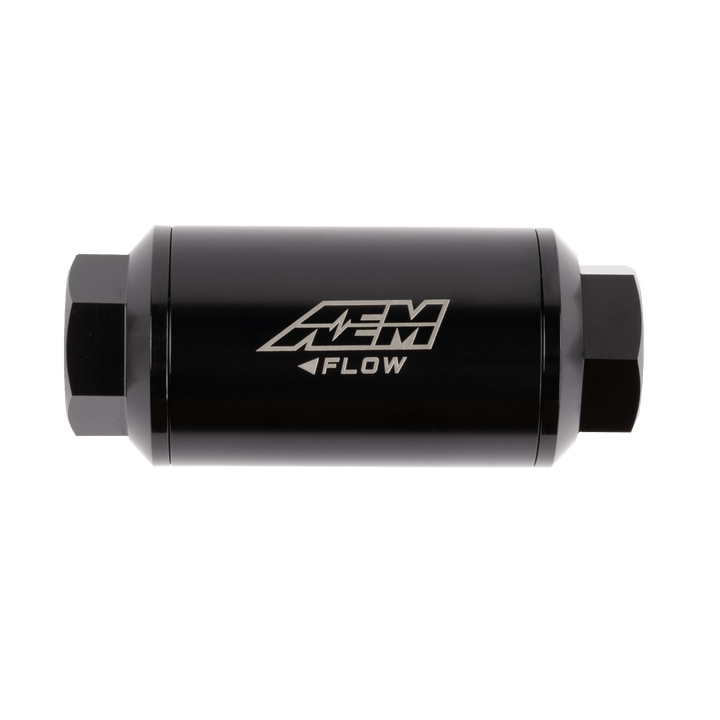

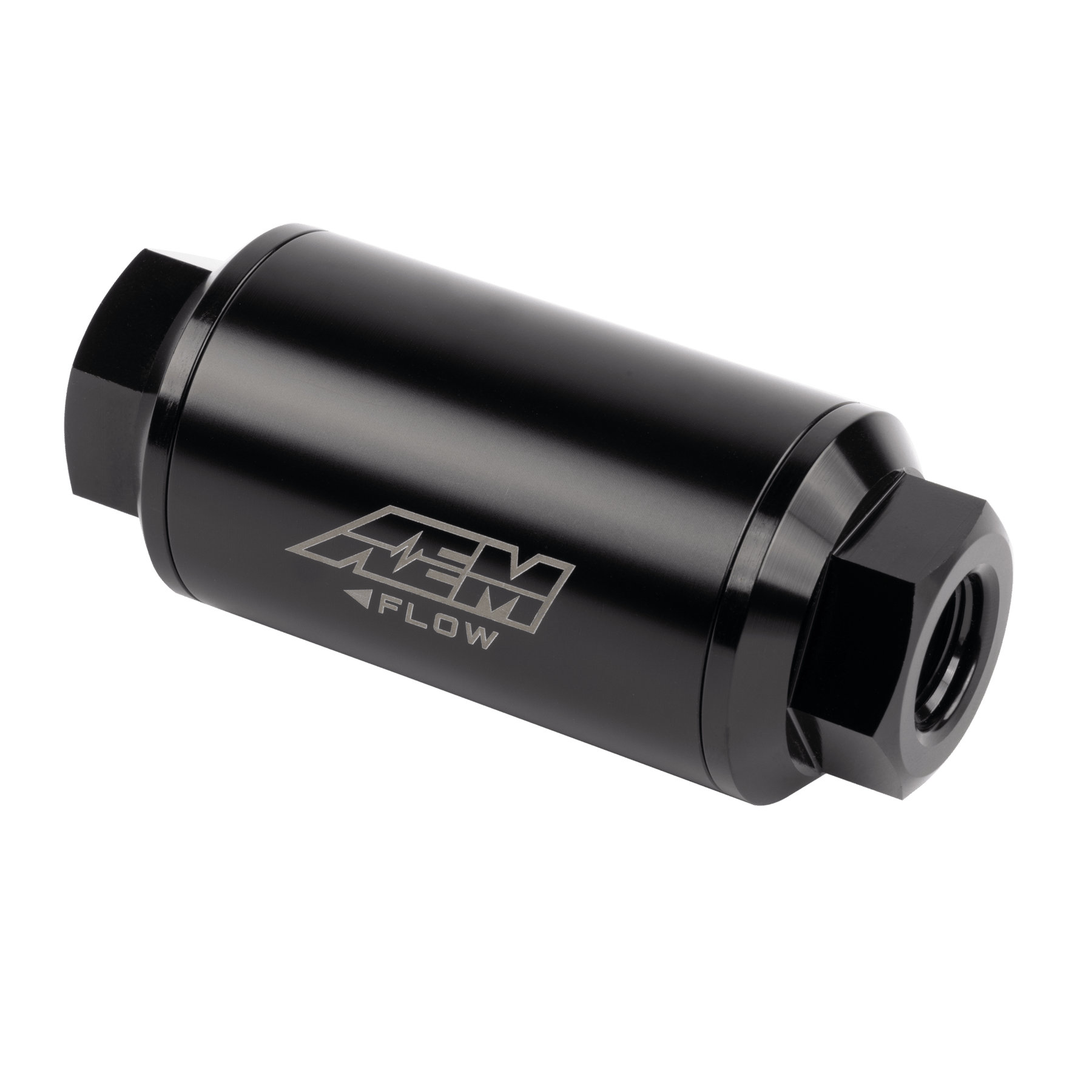

AEM Universal High Volume 100GPH, -6AN ORB, 10 Micron Fuel Filter

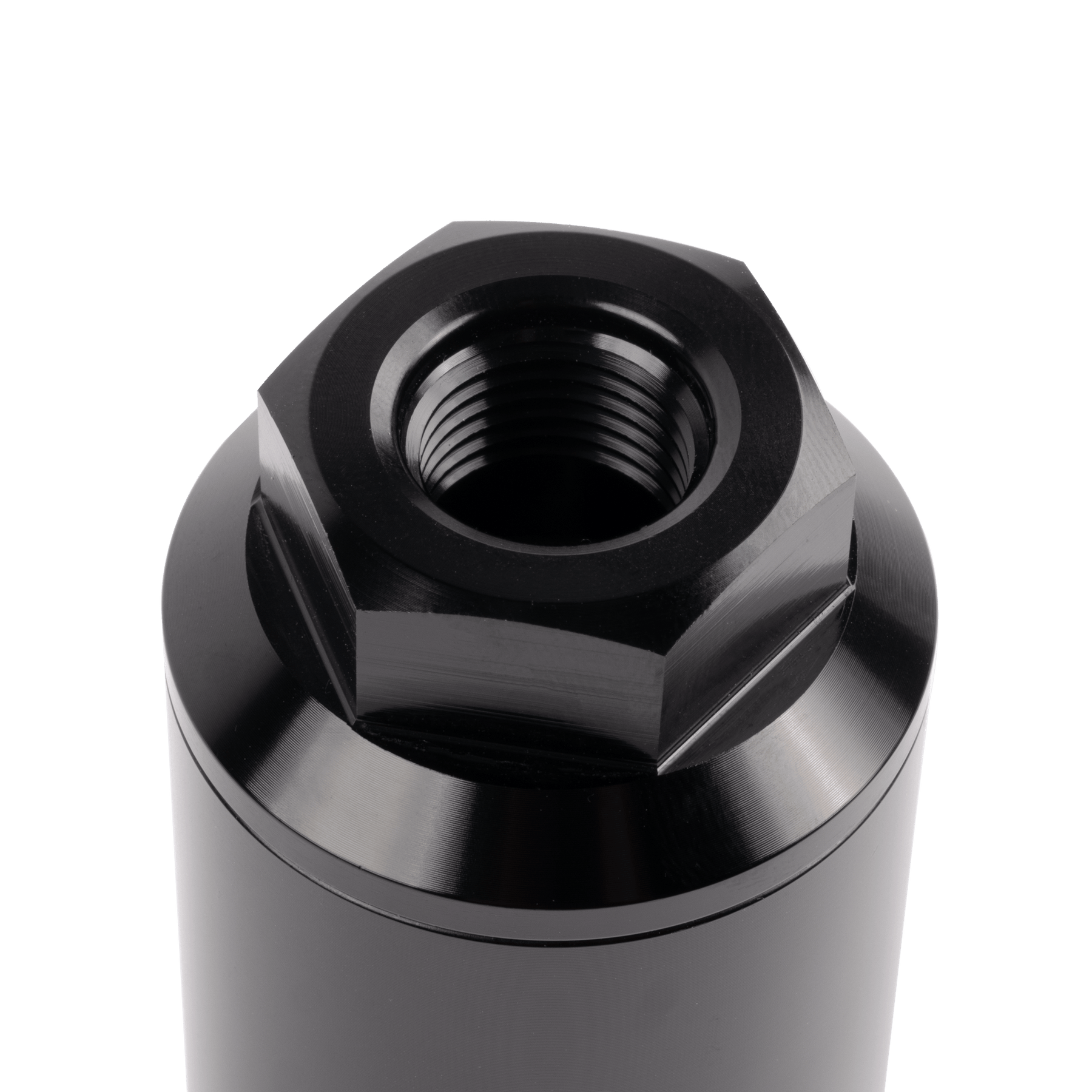

AEM's Universal High Flow -6 AN ORB Inline Filter is specifically engineered for maximizing flow without sacrificing filtration, and is designed for ease of installation. The end caps are machined with -6AN female fittings.

Machined O-ring receiver grooves on the end caps ensure against leaks, and all sealing O-rings and gaskets are made of Viton for outstanding performance when using gasoline, alcohol or gasoline/alcohol blended fuels.

• Gasoline/E85 Compatible
• Flows 100 GPH
• 10 Micron Filtration
• 6AN ORB inlet/outlet
• Compact 3.5" X 1.5" size

Specifications

• Brand: AEM
• Category: Air and Fuel Delivery
• Color: Black
• Diameter: 1.5 IN
• Emission Code: 5
• End 1 Gender: Female
• End 2 Gender: Female
• Fitting Type: Male
• Fuel Type: E85
• : Race Fuels
• Grade Type: Performance
• Inlet Size: 6 AN ORB
• Length: 3.5 IN
• Material: Billet Aluminum
• Micron: 10 UM
• Part Type: Fuel Filter
• Product Type: Fuel Filter
• Sub Category: Filters
• Warranty: Manufacturer's 1 Year Warranty
• Part Number: 25-204
